Tractor · 2002Unverified

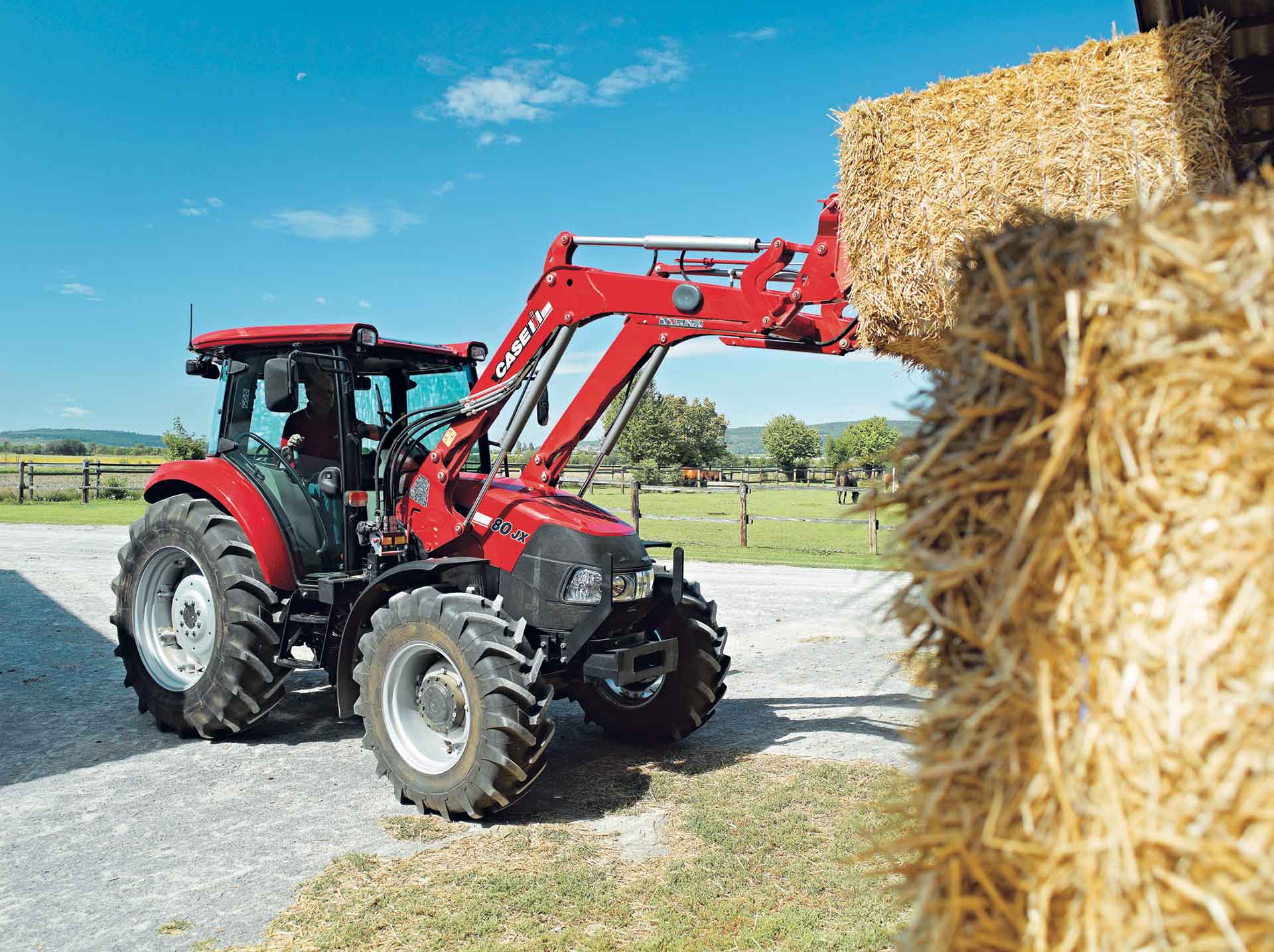

CaseIH JX55 Maxxima
CaseIH JX55 Maxxima — Model year 2002-20032003-2006 · 58 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Max power
28.2 kW
Weight
5655 to 6705 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerTurk TractorReference
Utility tractorReference
Built in TurkeyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Independent wet disc brakesReference
Two-post ROPS.Reference
Engine
Iveco 2.7L 3-cyl dieselReference
Fuel tank92.0 LReference
Engine (gross)43.3 kWReference
Drawbar (tested)28.2 kWReference
IvecoReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 115 mmReference
Power (gross)43.3 kWReference
Air cleanerpaper elementReference
Compression17.0:1Reference
Rated RPM2500Reference
Starter volts12Reference
Power at rated engine speed33.6 kWReference
Max power28.2 kWReference
Transmission
12-speed mechanical shuttleReference
20-speed creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in three ranges with mechanical shuttle.Reference
TypecreeperReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
PTO (tested)33.6 kWReference
Typeopen centerReference
Valves3Reference
Pump flow51.5 lpmReference
Rear TypeII/IReference
Rear lift3000 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Power at rated PTO speed31.6 kWReference
Dimensions
Wheelbase211 cmReference
Weight5655 to 6705 poundsReference
Length393 cmReference
Height254 cmReference
2WD Operating weight2565 kgReference
4WD Operating weight3041 kgReference
CaseIH JX55 attachments
front-end loaderReference
JX55 Serial Number Location
Serial number plate located below the steering column.Reference
JX55 Serial Numbers
2003HFJ000001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
165 diesel 12-speed 4WDFebruary 2002 - May 2002, Link: OCED Tractor Test 2009 fileReference
PTO performanceReference
Fuel use11.0 l/hourReference
Fuel use9.8 l/hourReference
Drawbar performanceReference
Gear 10 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
