Tractor · 2002Unverified

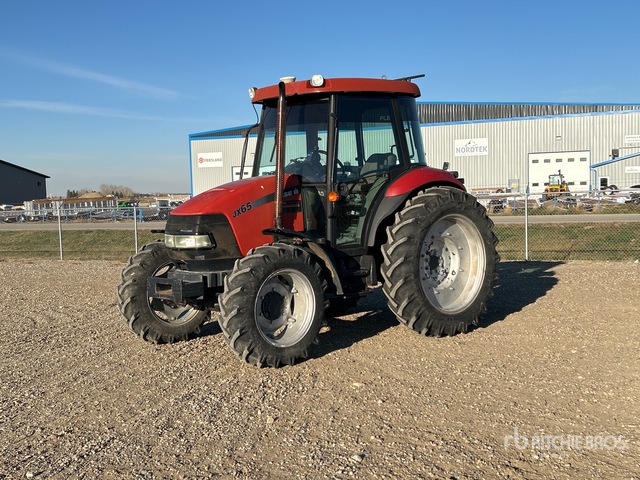

CaseIH JX65 Maxxima
CaseIH JX65 Maxxima — Model year 2002-20032003-2006 · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Max power
30.9 kW
Weight
6010 to 6130 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerTurk TractorReference
Utility tractorReference
Built in TurkeyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Independent wet disc brakesReference
Two-post ROPS.Reference
Engine
Iveco 2.9L 3-cyl dieselReference
Fuel tank92.0 LReference
Engine (gross)48.5 kWReference
Drawbar (tested)30.9 kWReference
IvecoReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
Power (gross)48.5 kWReference
Air cleanerpaper elementReference
Compression17.0:1Reference
Rated RPM2500Reference
Starter volts12Reference
Power at rated engine speed37.8 kWReference
Max power30.9 kWReference
Transmission
12-speed mechanical shuttleReference
20-speed creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges with mechanical shuttle.Reference
TypecreeperReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
PTO (tested)37.8 kWReference
Typeopen centerReference
Valves3Reference
Pump flow51.5 lpmReference
Rear TypeII/IReference
Rear lift3000 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Power at rated PTO speed35.6 kWReference
Dimensions
Wheelbase211 cmReference
Weight6010 to 6130 poundsReference
Length393 cmReference
Height254 cmReference
2WD ROPS Operating weight2726 kgReference
4WD ROPS Operating weight2780 kgReference
CaseIH JX65 attachments
front-end loaderReference
JX65 Serial Number Location
Serial number plate located below the steering column.Reference
JX65 Serial Numbers
2003HFJ000001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
179 diesel 12-speed 4WDMarch 2002 - May 2002, Link: OCED Tractor Test 2013 fileReference
PTO performanceReference
Fuel use11.4 l/hourReference
Fuel use10.2 l/hourReference
Drawbar performanceReference
Fuel use11.0 l/hourReference
Gear 10 used for power test.Reference
Max pull1669 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
