Tractor · 2002Unverified

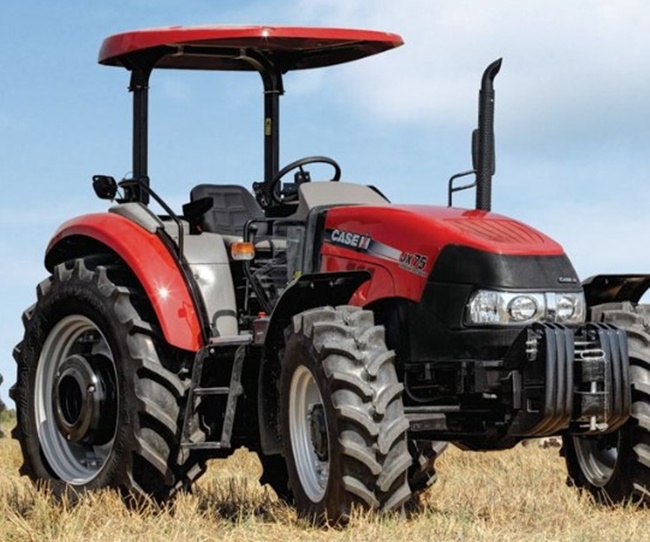

CaseIH JX75 Maxxima

CaseIH JX75 Maxxima — Model year 2002-20032003-2006 · 75 hp. Reference specifications; pending source verification.

The CaseIH JX75 Maxxima is a tractor model featuring a rated power output of 75 hp, a mid-range figure for its class. It was manufactured from 2002 to 2006. The tractor is powered by a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its operating weight ranges from 6205 to 6775 pounds, making it suitable for operations up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
75 hp
Max power
36.9 kW
Weight
6205 to 6775 pounds

Catalogue coverage

Variants represented
2
Richest spec table
63 rows
Recorded power
75 hp
Recorded weight
2814 kg
Transmissions
12-speed mechanical shuttle
Production years
2002-2006
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCaseIHReference
ManufacturerTurk TractorReference
Utility tractorReference
Built in TurkeyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Independent wet disc brakesReference
Two-post ROPS. Cab optional.Reference

Engine

Iveco 3.6L 4-cyl dieselReference
Fuel tank92.0 LReference
Engine (gross)55.9 kWReference
Drawbar (tested)36.9 kWReference
IvecoReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Power (gross)55.9 kWReference
Air cleanerpaper elementReference
Compression17.0:1Reference
Rated RPM2500Reference
Starter volts12Reference
Power at rated engine speed45.2 kWReference
Max power36.9 kWReference

Transmission

12-speed mechanical shuttleReference
20-speed creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges with mechanical shuttle.Reference
TypecreeperReference
Gears20 forward and 12 reverseReference

PTO & Hydraulics

PTO (claimed)44.7 kWReference
PTO (tested)45.2 kWReference
Typeopen centerReference
Valves3Reference
Pump flow51.5 lpmReference
Rear TypeIIReference
Rear lift3500 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Power at rated PTO speed42.0 kWReference

Dimensions

Wheelbase224 cmReference
Weight6205 to 6775 poundsReference
Length410 cmReference
Height254 cmReference
2WD ROPS Operating weight2814 kgReference
4WD ROPS Operating weight3073 kgReference

CaseIH JX75 attachments

front-end loaderReference

JX75 Serial Number Location

Serial number plate located below the steering column.Reference

JX75 Serial Numbers

2003HFJ000001Reference
FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference
Battery volts12Reference

Test results

220 diesel 12-speed 4WDFebruary 2002 - June 2002, Link: OCED Tractor Test 2017 fileReference
PTO performanceReference
Fuel use13.6 l/hourReference
Fuel use12.5 l/hourReference
Drawbar performanceReference
Gear 10 used for power test.Reference
Max pull1782 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
