Tractor · 2007Unverified

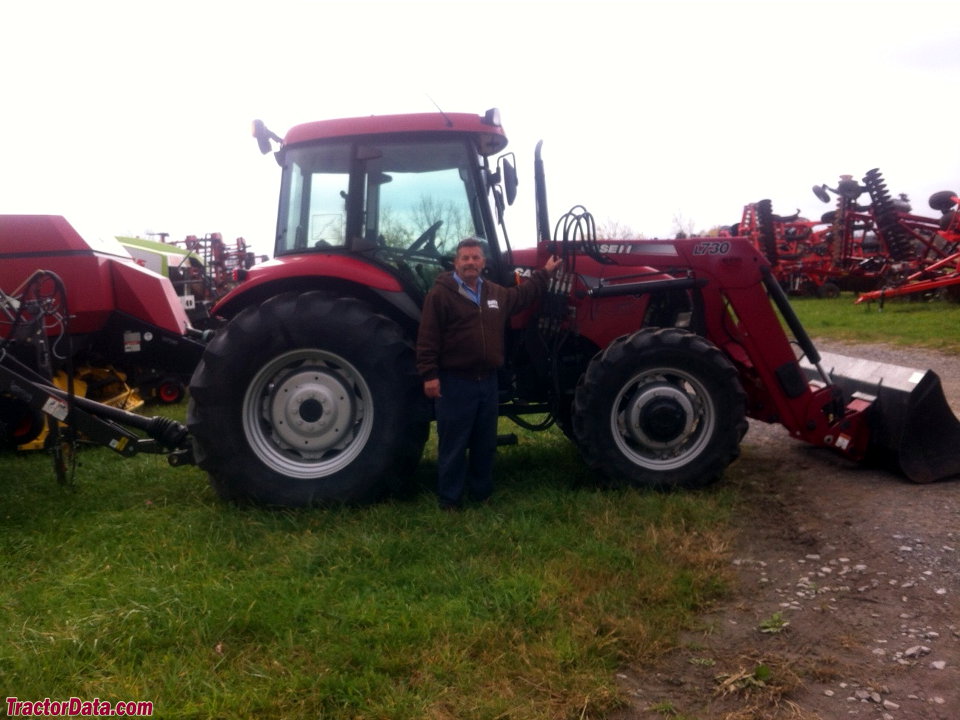

CaseIH JX80
CaseIH JX80 — JX Series · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
5702 to 6915 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerTurk TractorReference
Utility tractorReference
Built in Ankara, TurkeyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Brakeshydraulic wet disc (USA)Reference
Brakesmechanical wet discReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iveco 3.9L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine (gross)53.7 kWReference
IvecoReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Power (gross)53.7 kWReference
Fuel systemdirect injection with mechanical governorReference
Air cleanerdual dry elementsReference
Rated RPM2500Reference
Torque279.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
20-speed mechanical shuttle with creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Three ranges with four gears per range. Left-hand reverser requires use of clutch to change directionsReference
Typemechanical shuttle with creeperReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 3, 1 mid optionalReference
Pump flow40.1 lpmReference
Pump flow51.5 lpmReference
Total flow82.1 lpmReference
Steering flow30.7 lpmReference
Rear TypeII/IReference
Controlmechanical draft sensingReference
Rear lift (at 24"/610mm)2279 kgReference
Rear PTOindependentReference
Clutchmechanical dry discReference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase231 cmReference
Wheelbase220 cmReference
Weight5702 to 6915 poundsReference
Length403 cmReference
Length397 cmReference
Width180 cmReference
Height (ROPS)256 cmReference
Height (cab)261 cmReference
Shipping2586 kgReference
Shipping2886 kgReference
Shipping2836 kgReference
Shipping3136 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
