Tractor · 2002Unverified

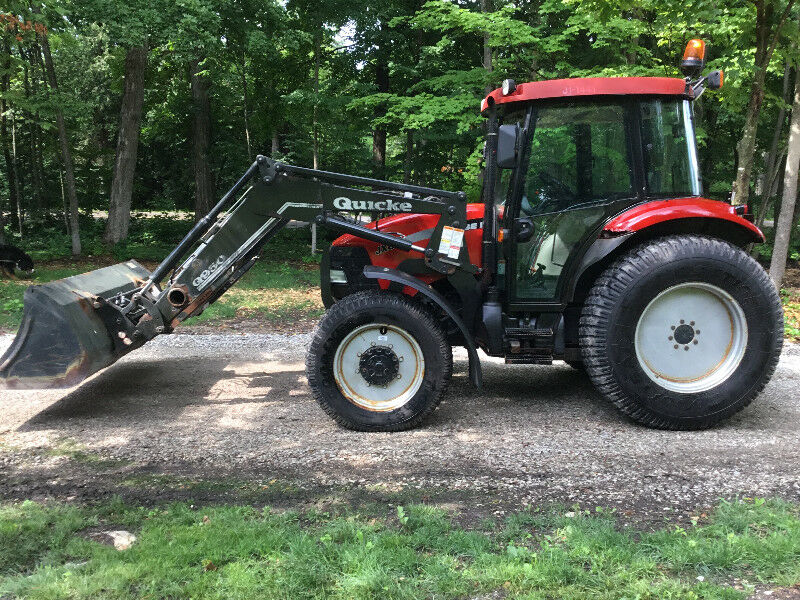

CaseIH JX85 Maxxima
CaseIH JX85 Maxxima — Model year 2002-20032003-2006 · 71 hp. Reference specifications; pending source verification.
The CaseIH JX85 Maxxima is a tractor with a rated power output of 71 hp, positioning it in the middle of its class. Manufactured from 2002 to 2006, this model features a 4-cylinder diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive system. Its listed weight ranges from 6425 to 6995 pounds. It is designed for use on areas of around 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Max power
43.5 kW
Weight
6425 to 6995 pounds
Catalogue coverage
Variants represented
2
Richest spec table
62 rows
Recorded power
71 hp
Recorded weight
2914 kg
Transmissions
12-speed mechanical shuttle
Production years
2002-2006
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerTurk TractorReference
Utility tractorReference
Built in TurkeyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Independent wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Iveco 3.9L 4-cyl dieselReference
Fuel tank92.0 LReference
Drawbar (tested)43.5 kWReference
IvecoReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Air cleanerpaper elementReference
Compression17.0:1Reference
Rated RPM2500Reference
Starter volts12Reference
Power at rated engine speed53.0 kWReference
Max power43.5 kWReference
Transmission
12-speed mechanical shuttleReference
20-speed creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges with mechanical shuttle.Reference
TypecreeperReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
PTO (tested)53.0 kWReference
Typeopen centerReference
Valves3Reference
Pump flow51.5 lpmReference
Rear TypeIIReference
Rear lift3500 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Power at rated PTO speed49.1 kWReference
Dimensions
Wheelbase230 cmReference
Wheelbase224 cmReference
Weight6425 to 6995 poundsReference
Length410 cmReference
Height254 cmReference
2WD Cab Operating weight2914 kgReference
4WD Cab Operating weight3172 kgReference
CaseIH JX85 attachments
front-end loaderReference
JX85 Serial Number Location
Serial number plate located below the steering column.Reference
JX85 Serial Numbers
2003HFJ000001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
238 diesel 12-speed 4WDMay 2002 - August 2002, Link: OCED Tractor Test 405 fileReference
PTO performanceReference
Fuel use15.9 l/hourReference
Fuel use14.8 l/hourReference
Drawbar performanceReference
Fuel use15.1 l/hourReference
Max pull2023 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
