Tractor · 2002Unverified

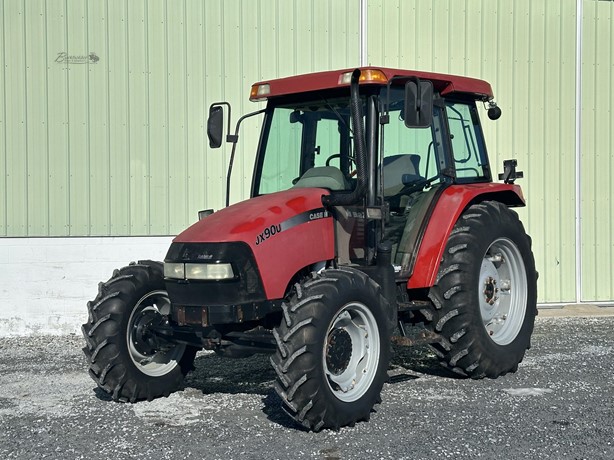

CaseIH JX90U
CaseIH JX90U — JXU Maxxima Series · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Max power
48.8 kW
Weight
8070 to 8710 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
Iveco 3.9L 4-cyl dieselReference
Fuel tank126.8 LReference
Engine (gross)62.6 kWReference
Drawbar (tested)48.8 kWReference
IvecoReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Power (gross)62.6 kWReference
Fuel systemmechanical direct injectionReference
Air cleanerdual paper elementsReference
Pre-heatingthermostartReference
Compression16.5:1Reference
Rated RPM2500Reference
Starter volts12Reference
Power at rated engine speed58.2 kWReference
Max power48.8 kWReference
Transmission
24-speed two-speed power shiftReference
24-speed power shuttleReference
20-speed syncromeshReference
Typetwo-speed power shiftReference
Gears24 forward and 12 reverseReference
Two-speed power shift with left-hand synchronized shuttle.Reference
Typepower shuttleReference
Gears24 forward and reverseReference
Four gears (1-4) in three ranges (I, II, III) with push-button power shift and power shuttleReference
TypesyncromeshReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)56.7 kWReference
PTO (tested)58.2 kWReference
Typeopen centerReference
Valves2 or 3Reference
Pump flow54.9 lpmReference
Total flow75.7 lpmReference
Steering flow20.8 lpmReference
Rear TypeIIReference
Controlmechanical lower-link draft sensingReference
Rear lift3583 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Power at rated PTO speed60.3 kWReference
Dimensions
2WD Wheelbase234 cmReference
4WD Wheelbase231 cmReference
Weight8070 to 8710 poundsReference
2WD Operating3660 kgReference
4WD Operating3950 kgReference
2WD Ballasted4483 kgReference
4WD Ballasted4774 kgReference
CaseIH JX90U attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps85Reference
Battery CCA960Reference
Attachment overview
CaseIH LX132 loaderReference
CaseIH LX152 loaderReference
CaseIH JX90U Height
ROPS276 cmReference
Cab262 cmReference
Exhaust278 cmReference
Test results
Diesel 24-speed 4WDOctober 1, 2002 - December 1, 2003Link: OCED Tractor Test 2078 fileReference
PTO performanceReference
Fuel use18.2 l/hourReference
Fuel use17.4 l/hourReference
Drawbar performanceReference
Gear 12 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
