Tractor · 2002Unverified

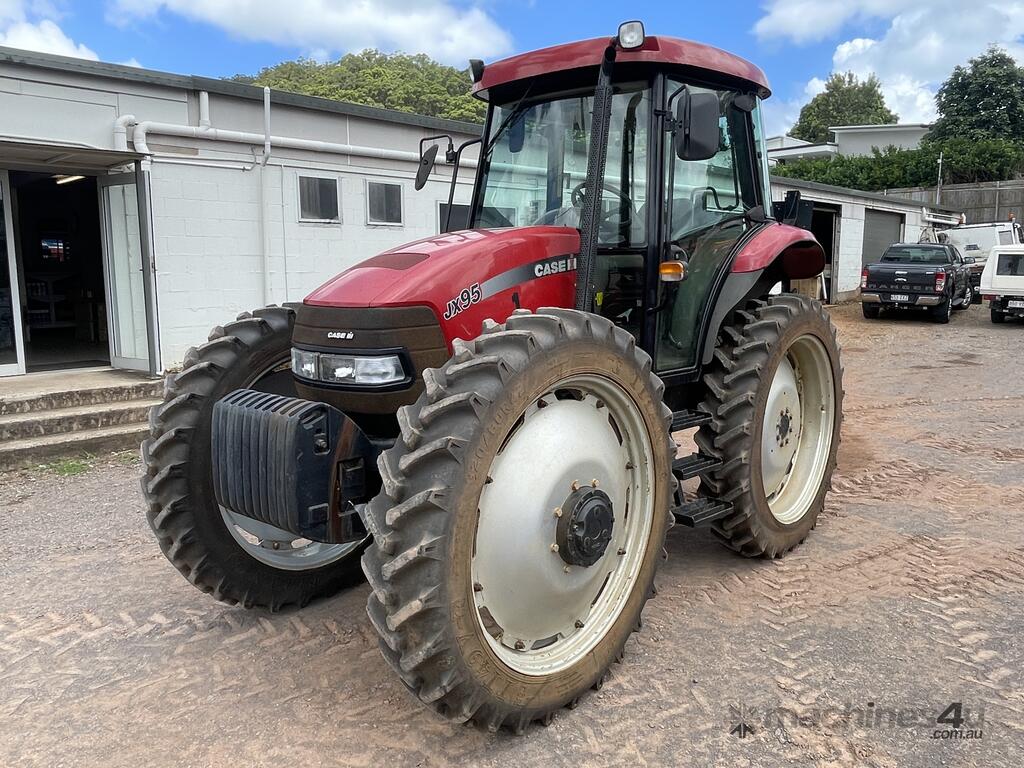

CaseIH JX95 High Clear
CaseIH JX95 High Clear — JX Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
6680 to 7892 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
High-Clearance tractorReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Two-post foldable ROPS.Reference
Variants
JX95utilityReference
JX95HChigh-cropReference
Engine
Iveco 3.9L 4-cyl dieselReference
Fuel tank100.7 LReference
Engine (gross)67.1 kWReference
IvecoReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Power (gross)67.1 kWReference
Fuel systemdirect injection with mechanical governorReference
Air cleanerdual dry elementReference
Pre-heatingthermostartReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speedReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves2 or 3Reference
Pump flow51.5 lpmReference
Total flow82.1 lpmReference
Steering flow30.7 lpmReference
Rear TypeIIReference
Controlmechanical draft sensingReference
Rear lift (at ends)0 kgReference
Rear lift (at 24"/610mm)2279 kgReference
Rear PTOindependentReference
Clutchmechanical dry discReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase216 cmReference
Wheelbase211 cmReference
Weight6680 to 7892 poundsReference
Length413 cmReference
Length414 cmReference
Width186 cmReference
Weight3030 kgReference
Weight3579 kgReference
Ground clearance63 cmReference
Front tread154 to 195 cmReference
Front tread152 to 223 cmReference
Rear tread152 to 253 cmReference
Steering wheel204 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery CCA800Reference
Battery volts12Reference
CaseIH JX95 High Clear Height
Hood191 cmReference
ROPS289 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
