Tractor · 2002Unverified

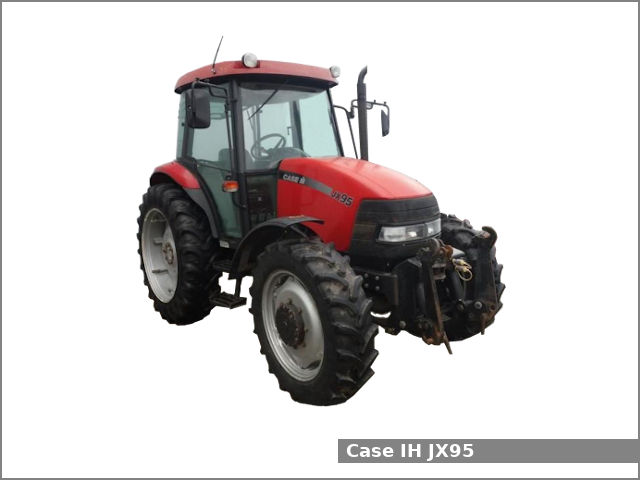

CaseIH JX95 Maxxima
CaseIH JX95 Maxxima — Model year 2002-20032003-2009 · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Max power
62.5 kW
Weight
6790 to 7615 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerTurk TractorReference
Utility tractorReference
Built in TurkeyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Independent wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
JX95utilityReference
JX95HChigh-cropReference
Engine
Iveco 3.9L 4-cyl dieselReference
Fuel tank92.0 LReference
Engine (gross)69.4 kWReference
Drawbar (tested)49.4 kWReference
IvecoReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Power (gross)69.4 kWReference
Air cleanerpaper elementReference
Compression17.0:1Reference
Rated RPM2500Reference
Torque337.1 NmReference
Torque RPM1500Reference
Starter volts12Reference
Max power62.5 kWReference
Power at rated engine speed60.9 kWReference
Max power49.4 kWReference
Transmission
12-speed mechanical shuttleReference
20-speed creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges with mechanical shuttle.Reference
TypecreeperReference
Gears20 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
PTO (tested)62.5 kWReference
Typeopen centerReference
Valves3Reference
Pump flow40.1 lpmReference
Pump flow51.5 lpmReference
Rear TypeIIReference
Rear lift3500 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Power at rated PTO speed60.9 kWReference
Dimensions
2WD Wheelbase238 cmReference
4WD Wheelbase233 cmReference
Weight6790 to 7615 poundsReference
2WD Length411 cmReference
4WD Length405 cmReference
Width180 cmReference
2WD Cab Operating weight3079 kgReference
4WD Cab Operating weight3454 kgReference
CaseIH JX95 attachments
front-end loaderReference
JX95 Serial Number Location
Serial number plate located below the steering column.Reference
JX95 Serial Numbers
2003HFJ000001Reference
2004HFJ013982Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDMarch 2002 - July 2002, Link: OCED Tractor Test 2023 fileReference
PTO performanceReference
Fuel use17.8 l/hourReference
Fuel use18.2 l/hourReference
Fuel use17.0 l/hourReference
Drawbar performanceReference
Max pull1866 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
