Tractor · 2008Unverified

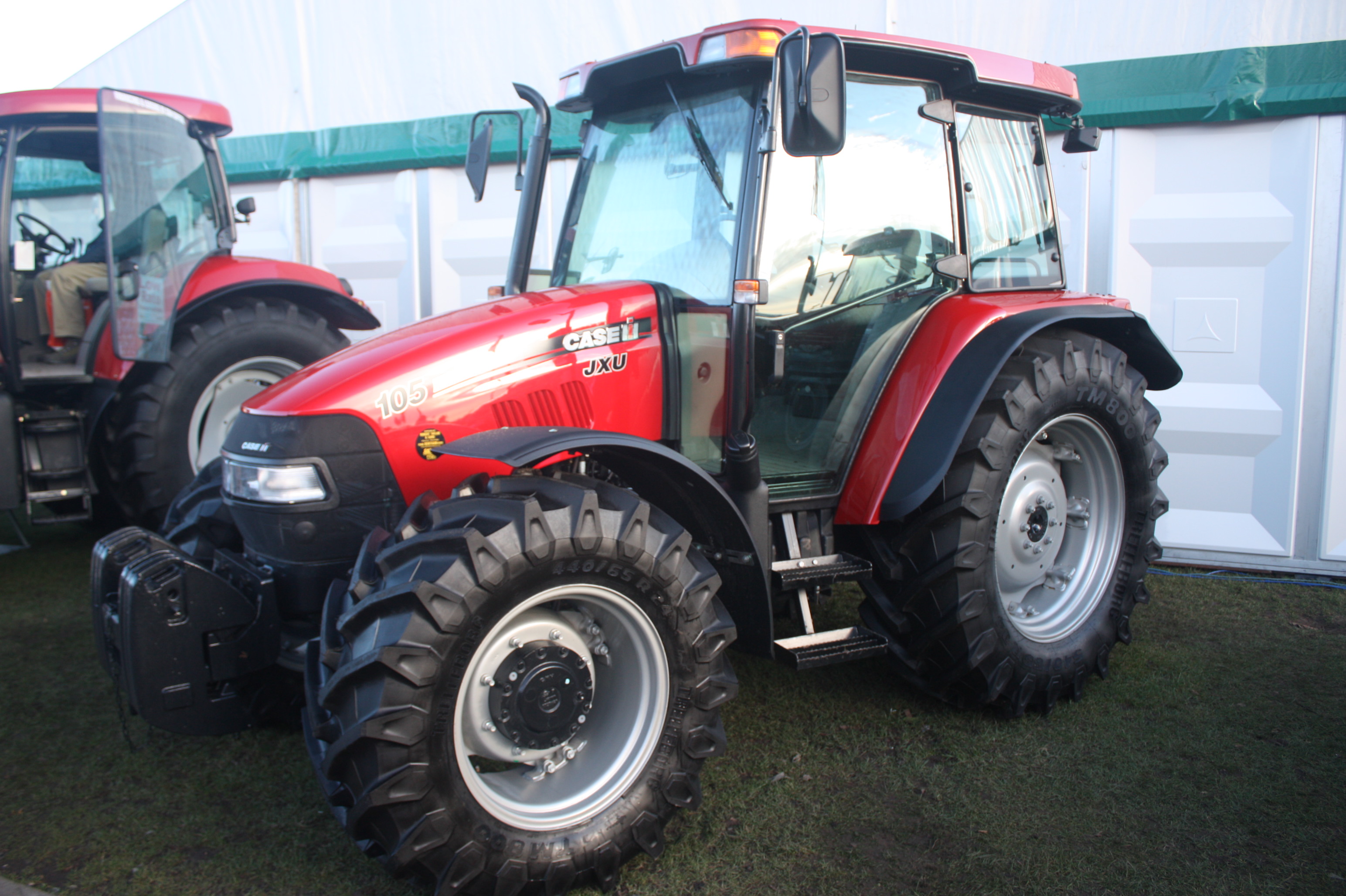

CaseIH JXU 105
CaseIH JXU 105 — JXU Series · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
4249 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockElectro-hydraulic rear and limited slip front. Electro-hydraulic front optional.Reference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Two-post folding ROPS. Cab optional.Reference
Engine
Iveco 4.5L 4-cyl dieselReference
Fuel tank127.2 LReference
Fuel tank166.9 LReference
Engine (gross)78.0 kWReference
Iveco NEF F4CReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Rated Power (gross)78.0 kWReference
Rated RPM2300Reference
Torque425.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
24-speed two-speed power shiftReference
12-speed power shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
Two-speed power shift with power shuttle.Reference
Typepower shuttleReference
PTO & Hydraulics
Rear valves3Reference
Mid valves2Reference
Pump flow60.9 lpmReference
Steering flow36.0 lpmReference
Rear lift4900 kgReference
Rear lift5850 kgReference
Front lift2500 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase234 cmReference
4WD Wheelbase234 cmReference
Weight4249 kgReference
Front tire10.00-16Reference
2WD Rear tire480/70R34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 480/70R34Reference
4WD Standard tires (ag)Front: 380/70R24. Rear: 480/70R34Reference
Length411 cmReference
Height (ROPS)274 cmReference
Height (Folded ROPS)219 cmReference
Height (cab)262 cmReference
Max weight6799 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
