Tractor · 2016Unverified

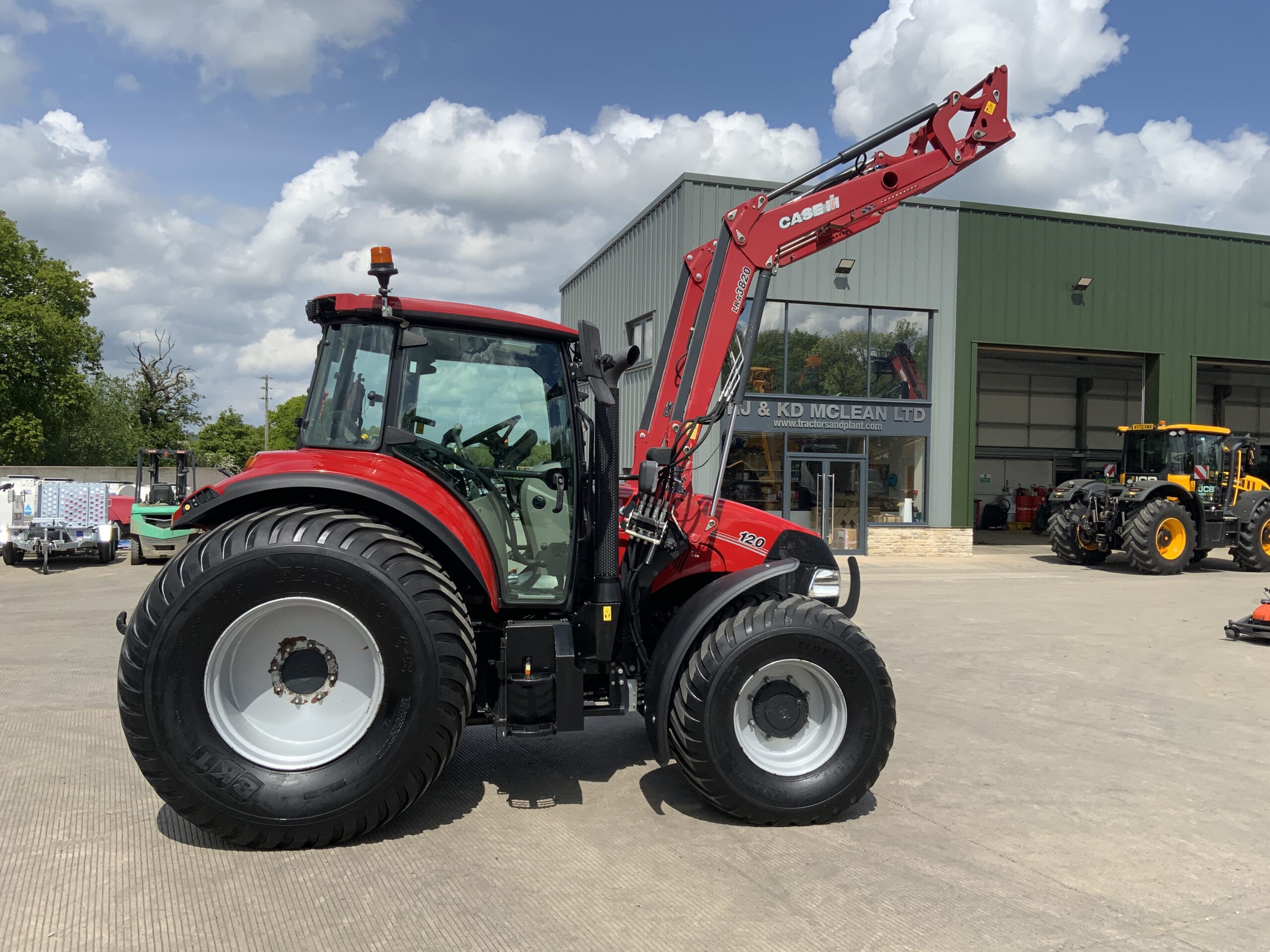

CaseIH Luxxum 120

Name: CaseIH Luxxum 120
Brand: CaseIH

CaseIH Luxxum 120 — Model year 2016-20222022-2025 · 117 hp. Reference specifications; pending source verification.

The CaseIH Luxxum 120 is a tractor model with a rated power output of 117 hp, a figure typical for its class. The model was manufactured from 2016 to 2025. It features a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive, paired with a powershift transmission. The operating weight of the CaseIH Luxxum 120 is 4389 kg, and it is suitable for operations involving 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

117 hp

Weight

4389 kg

Catalogue coverage

Variants represented

Richest spec table

50 rows

Recorded power

117 hp

Recorded weight

4389 kg

Transmissions

32-speed four-speed power shift

Production years

2016-2025

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Saint Valentin, AustriaReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

Farmall 120Usimilar CaseIH modelReference

Engine

FPT 3.4L 4-cyl dieselReference

Fuel tank149.9 LReference

Exhaust fluid (DEF)14.0 LReference

Engine (gross)87.2 kWReference

FPTReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsStage IVReference

Rated Power (gross)87.2 kWReference

Rated RPM2200Reference

Torque490.9 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

32-speed four-speed power shiftReference

Typefour-speed power shiftReference

Gears32 forward and reverseReference

PTO & Hydraulics

Typeclosed center load sensingReference

Rear valves4Reference

Mid valves2Reference

Pump flow79.9 lpmReference

Pump flow99.9 lpmReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000/1000EReference

Front PTOindependentReference

Front PTO Type540/540E/1000/1000EReference

Dimensions

Wheelbase242 cmReference

Wheelbase243 cmReference

Weight4389 kgReference

Front tire480/65R24Reference

Rear tire540/65R38Reference

Standard tires (ag)Front: 480/65R24. Rear: 540/65R38Reference

Length419 cmReference

Width210 cmReference

Height (cab)272 cmReference

Shipping weight4389 kgReference

Max weight8000 kgReference

Electrical

Charging systemalternatorReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
