Tractor · 2009Unverified

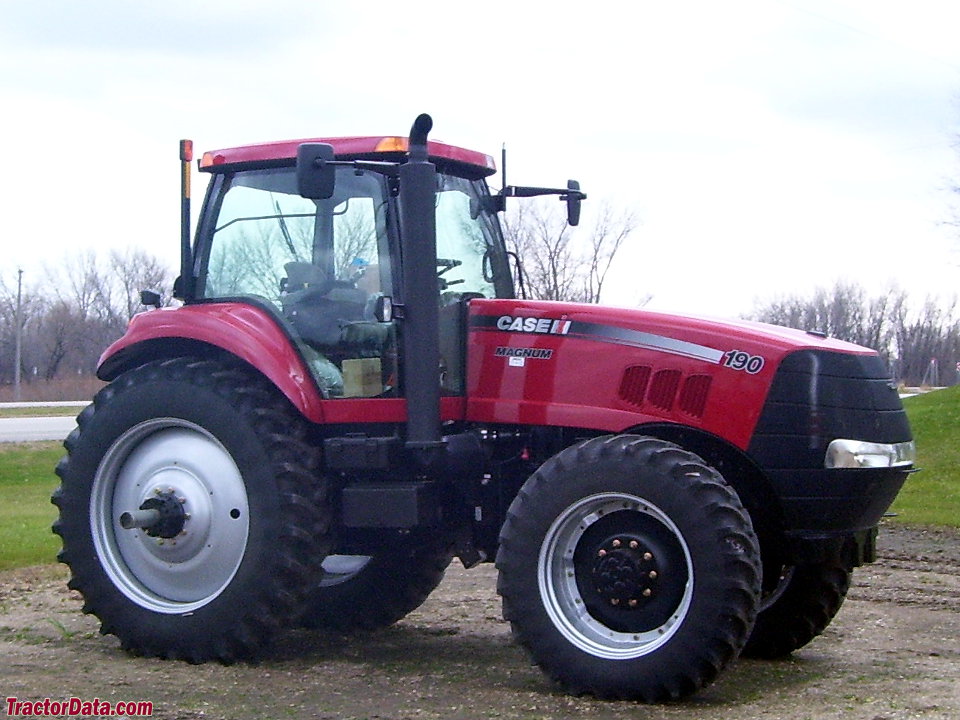

CaseIH Magnum 190
CaseIH Magnum 190 — Model year 2009-20102011-2013 · 171 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
171 hp
Max power
141.2 kW
Weight
8618 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Surveyor cab standard with air-conditioning.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank446.6 LReference
Engine141.7 kWReference
FPTReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power141.7 kWReference
Maximum Power186.4 kWReference
Fuel systemelectronic high-pressure common railReference
Cooling systemviscous fanReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity16.1 LReference
Max power141.2 kWReference
Power at rated engine speed127.7 kWReference
Transmission
18-speed full power shiftReference
19-speed full power shiftReference
continuously variable transmission (CVT)Reference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Gears19 forward and 6 reverseReference
Typecontinuously variable transmission (CVT)Reference
Gearsininite forward and infinite (2-range) reverse (4-range)Reference
PTO & Hydraulics
PTO (claimed)123.0 kWReference
PTO (tested)141.2 kWReference
TypePressue Flow Compensated (PFC)Reference
Valves3 to 5Reference
Total flow149.9 lpmReference
Rear TypeII/IIIReference
Rear lift5800 kgReference
Rear lift7199 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed133.0 kWReference
Dimensions
Wheelbase300 cmReference
Weight8618 kgReference
Height (cab)326 cmReference
Shipping weight8618 kgReference
Rear axle104 by 2844 mmReference
Rear axle104 by 3022 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps200 (optional)Reference
Test results
Diesel 19-speed 4WDMay 2007 - June 2007, Link: OCED Tractor Test 2425 fileReference
PTO performanceReference
Fuel use41.3 l/hourReference
Fuel use41.6 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
