Tractor · 2014Unverified

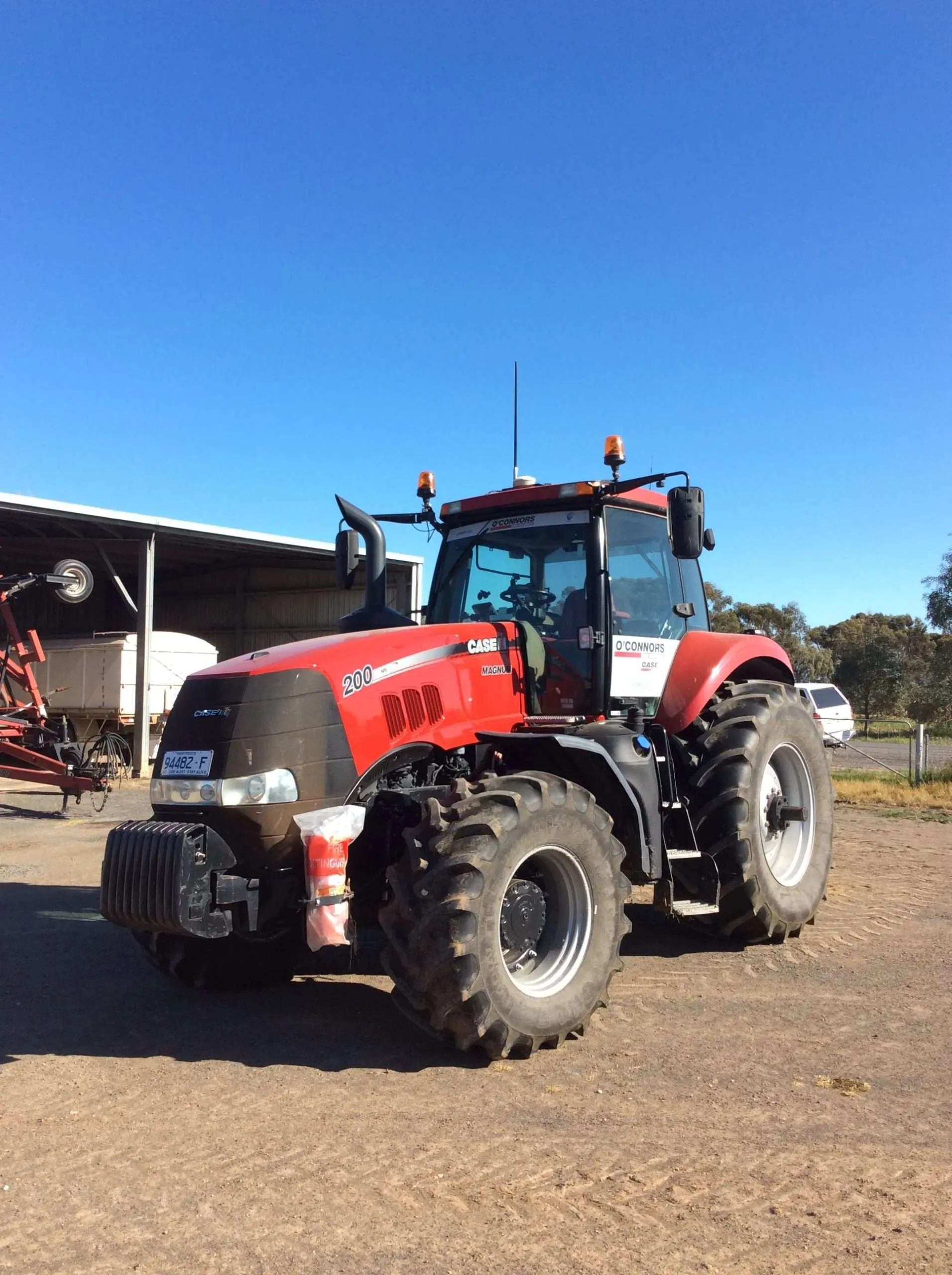

CaseIH Magnum 200

Name: CaseIH Magnum 200
Brand: CaseIH

CaseIH Magnum 200 — Model year 2014-20192019-2027 · 200 hp. Reference specifications; pending source verification.

The CaseIH Magnum 200 is a tractor with a rated output of 200 hp, categorising it among the higher-powered machines in its class. Production of the Magnum 200 spanned from 2014 to 2027. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers four-wheel drive via a continuously variable transmission. The listed weight of the Magnum 200 is 9391 kg, making it suitable for use on plots of around 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

200 hp

Max power

143.7 kW

Weight

9391 kg

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

200 hp

Recorded weight

9391 kg

Transmissions

19-speed full power shift

Production years

2014-2027

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Original price$197,469 (2014 Power shift )Reference

Original price$207,228 (2014 CVT )Reference

Original price$210,553 (2017 Power shift )Reference

Original price$220,958 (2017 CVT )Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Hydraulic wet disc brakesReference

Magnum cab standard with air-conditioning. Optional cab suspension.Reference

Engine

FPT 6.7L 6-cyl dieselReference

Fuel tank605.6 LReference

Exhaust fluid (DEF)66.2 LReference

Engine (gross)149.1 kWReference

Engine (max)182.7 kWReference

Drawbar (tested)115.8 kWReference

FPTReference

wastegate turbocharged air-to-air intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)149.1 kWReference

Maximum Power (gross)182.7 kWReference

Fuel systemelectronic high pressure common rail direct injectionReference

Cooling systemviscous fanReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Max power143.7 kWReference

Power at rated engine speed132.8 kWReference

Max power115.8 kWReference

Transmission

19-speed full power shiftReference

continuously variable transmission (CVT)Reference

Typefull power shiftReference

Gears19 forward and 6 reverseReference

Clutchelectro-hydraulic wet discReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)126.8 kWReference

PTO (tested)143.7 kWReference

Typepressure flow compensatingReference

Rear valves3 to 5Reference

Pump flow155.2 lpmReference

Pump flow162.8 lpmReference

Rear TypeIII/IIINReference

Controlelectronic lower link draft sensingReference

Rear lift (at 24"/610mm)6395 kgReference

DrawbarCat. 3Reference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed141.4 kWReference

Dimensions

Wheelbase299 cmReference

Weight9391 kgReference

Front tire380/85R34Reference

Rear tire480/80R46Reference

Ag front380/85R34Reference

Ag rear480/80R46Reference

Length594 cmReference

Height (cab)320 cmReference

Operating weight9391 kgReference

Front axle4WDReference

Front axleSuspended 4WDReference

Magnum 200 Serial Number Location

Serial number plate on the front right of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Test results

Diesel 19-speed 4WDMay 20, 215 - June 8, 2015Link: OCED Tractor Test 2119 fileReference

PTO performanceReference

Fuel use36.7 l/hourReference

Fuel use37.1 l/hourReference

Drawbar performanceReference

Gear 9 used for power test.Reference

Max pull8470 kgReference

Gear 6 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
