Tractor · 2008Unverified

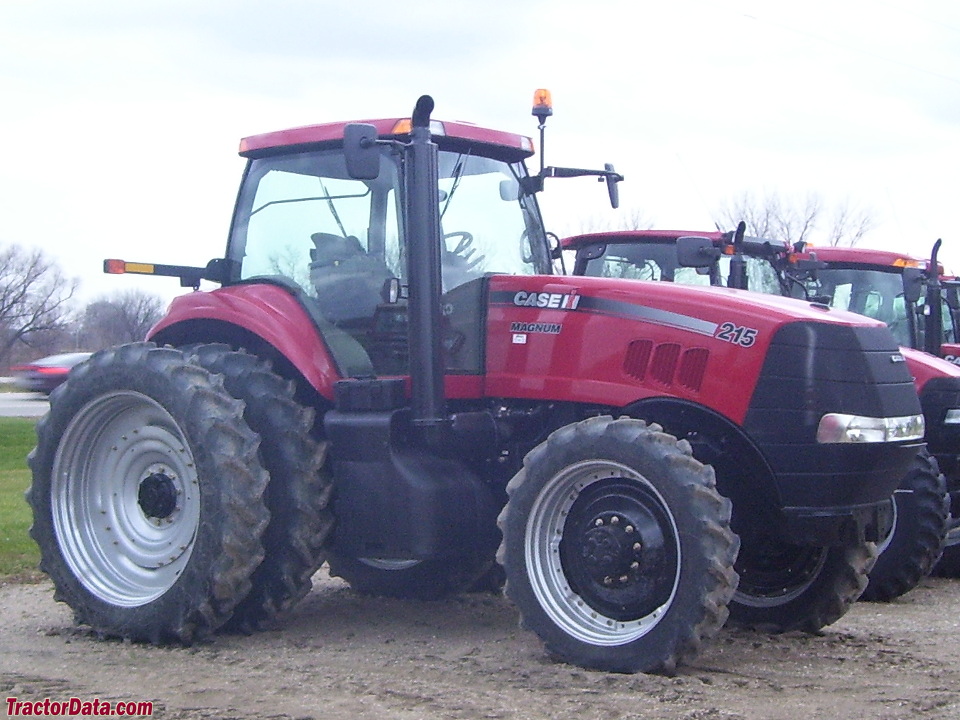

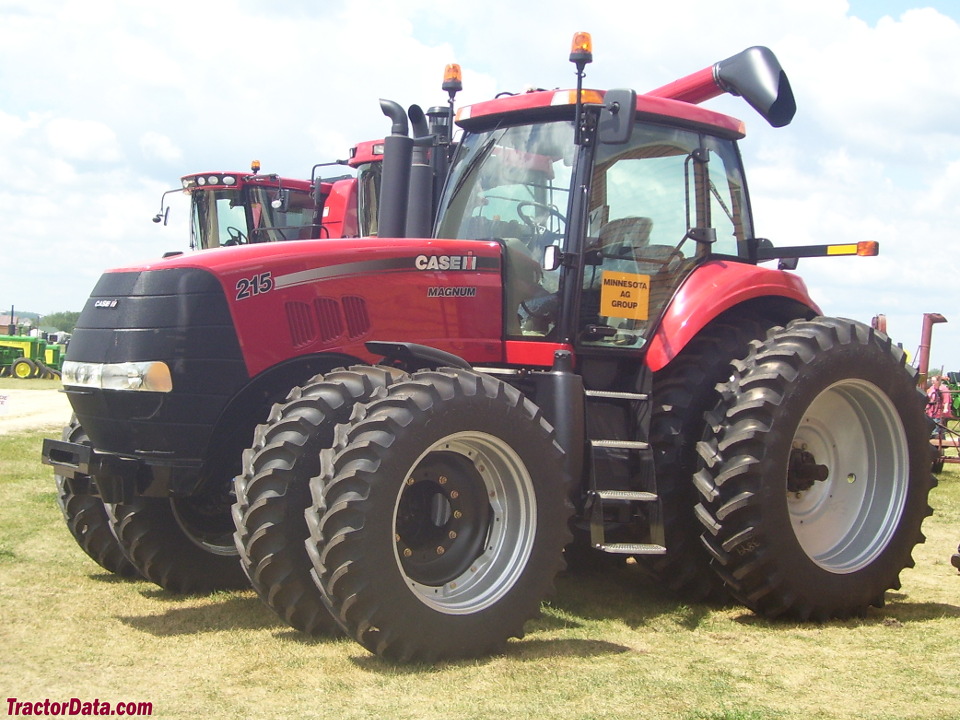

CaseIH Magnum 215
CaseIH Magnum 215 — Magnum Series · 178 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
178 hp
Max power
160.9 kW
Weight
20100 to 21035 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $165,949 in 2010Reference
Four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional luxury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls.Reference
Engine
CNH 8.3L 6-cyl dieselReference
Engine164.8 kWReference
Drawbar (tested)113.0 kWReference
CNHReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power164.8 kWReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2000Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity22.7 LReference
Max power160.9 kWReference
Power at rated engine speed132.4 kWReference
Max power113.0 kWReference
Transmission
18-speed full powershiftReference
19-speed full powershiftReference
23-speed full powershiftReference
Typefull powershiftReference
Gears18 forward and 4 reverseReference
Gears19 forward and 4 reverseReference
Gears23 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)130.5 kWReference
PTO (tested)160.9 kWReference
Hydraulic system172.2 LReference
TypePFCReference
Capacity172.2 LReference
Valves3 to 5Reference
Total flow166.5 lpmReference
Total flow223.3 lpmReference
Total flow283.9 lpmReference
Rear TypeIII/IIINReference
Rear TypeIVN/IIIReference
Rear lift6382 kgReference
Rear lift7427 kgReference
Rear lift7484 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540/1000Reference
Power at rated PTO speed160.9 kWReference
Capacities
Fuel681.3 LReference
Max capacity12020 kgReference
Dimensions
Wheelbase300 cmReference
Weight20100 to 21035 poundsReference
Front tire380/85R34Reference
Rear tire480/80R46Reference
Ag front380/85R34Reference
Ag rear480/80R46Reference
Height (cab)326 cmReference
Rear axle101 by 3048 mmReference
Rear axle114 by 3048 mmReference
Shipping9117 kgReference
Shipping9480 kgReference
Operating9541 kgReference
Ballasted10918 kgReference
Test results
Diesel 19-speed 4WDMay 8 - 18, 2007Link: OCED Tractor Test 1898 fileReference
PTO performanceReference
Fuel use49.6 l/hourReference
Fuel use43.5 l/hourReference
Drawbar performanceReference
Fuel use43.9 l/hourReference
Gear 7 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
