Tractor · 2014Unverified

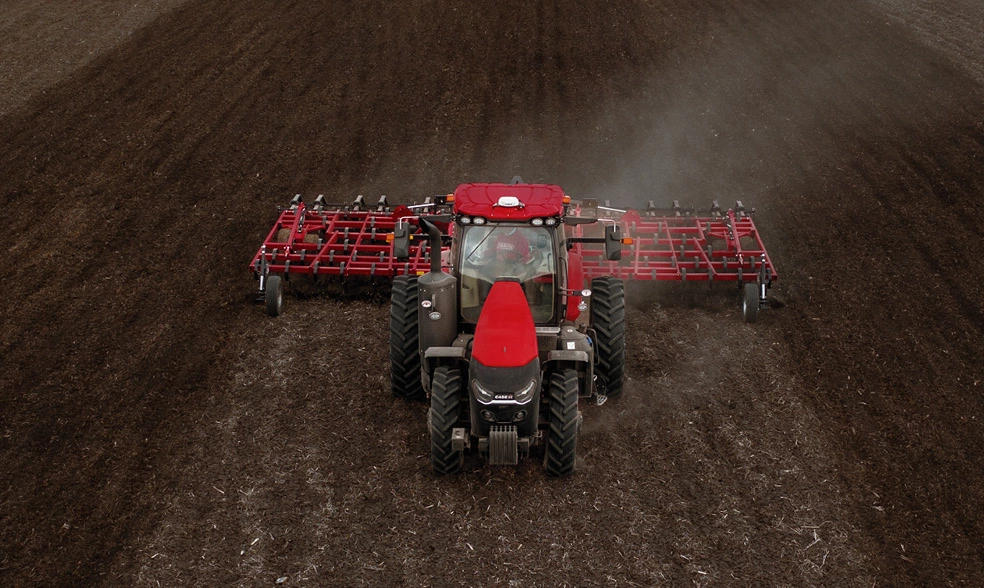

CaseIH Magnum 220

Name: CaseIH Magnum 220
Brand: CaseIH

CaseIH Magnum 220 — Model year 2014-20192019-2027 · 220 hp. Reference specifications; pending source verification.

The CaseIH Magnum 220 is a tractor model with a rated power of 220 hp, positioning it at the upper end of its class in terms of power output. It was manufactured from 2014 to 2027, and its power source is a 6-cylinder turbocharged intercooled diesel liquid-cooled engine. Capabilities include four-wheel drive and a continuously variable transmission. The listed operating weight of the CaseIH Magnum 220 is 9865 kg, with a suitable operating range of 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

220 hp

Max power

156.1 kW

Weight

9865 kg

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

220 hp

Recorded weight

9865 kg

Transmissions

19-speed full power shift

Production years

2014-2027

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Original price$206,347 (2014 Power shift )Reference

Original price$216,106 (2014 CVT )Reference

Original price$220,020 (2017 Power shift )Reference

Original price$230,425 (2017 CVT )Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Hydraulic wet disc brakesReference

Magnum cab standard with air-conditioning. Optional cab suspension.Reference

Engine

FPT 6.7L 6-cyl dieselReference

Fuel tank605.6 LReference

Exhaust fluid (DEF)66.2 LReference

Engine (gross)164.1 kWReference

Engine (max)193.9 kWReference

Drawbar (tested)125.4 kWReference

FPTReference

wastegate turbocharged air-to-air intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)164.1 kWReference

Maximum Power (gross)193.9 kWReference

Fuel systemelectronic high pressure common rail direct injectionReference

Cooling systemviscous fanReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Max power156.1 kWReference

Power at rated engine speed142.6 kWReference

Max power125.4 kWReference

Transmission

19-speed full power shiftReference

continuously variable transmission (CVT)Reference

Typefull power shiftReference

Gears19 forward and 6 reverseReference

Clutchelectro-hydraulic wet discReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)138.0 kWReference

PTO (tested)156.1 kWReference

Typepressure flow compensatingReference

Rear valves3 to 5Reference

Pump flow155.2 lpmReference

Pump flow162.8 lpmReference

Rear TypeIII/IIINReference

Controlelectronic lower link draft sensingReference

Rear lift (at 24"/610mm)6395 kgReference

DrawbarCat. 3Reference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed155.9 kWReference

Dimensions

Wheelbase299 cmReference

Weight9865 kgReference

Front tire380/85R34Reference

Rear tire480/80R46Reference

Ag front380/85R34Reference

Ag rear480/80R46Reference

Length594 cmReference

Height (cab)320 cmReference

Operating weight9865 kgReference

Front axle4WDReference

Front axleSuspended 4WDReference

Magnum 220 Serial Number Location

Serial number plate on the front right of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Test results

Diesel 19-speed 4WDMay 18 - June 8, 2015Link: OCED Tractor Test 2120 fileReference

PTO performanceReference

Fuel use40.1 l/hourReference

Fuel use39.0 l/hourReference

Fuel use40.5 l/hourReference

Drawbar performanceReference

Gear 9 used for power test.Reference

Max pull9064 kgReference

Gear 6 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
