Tractor · 2009Unverified

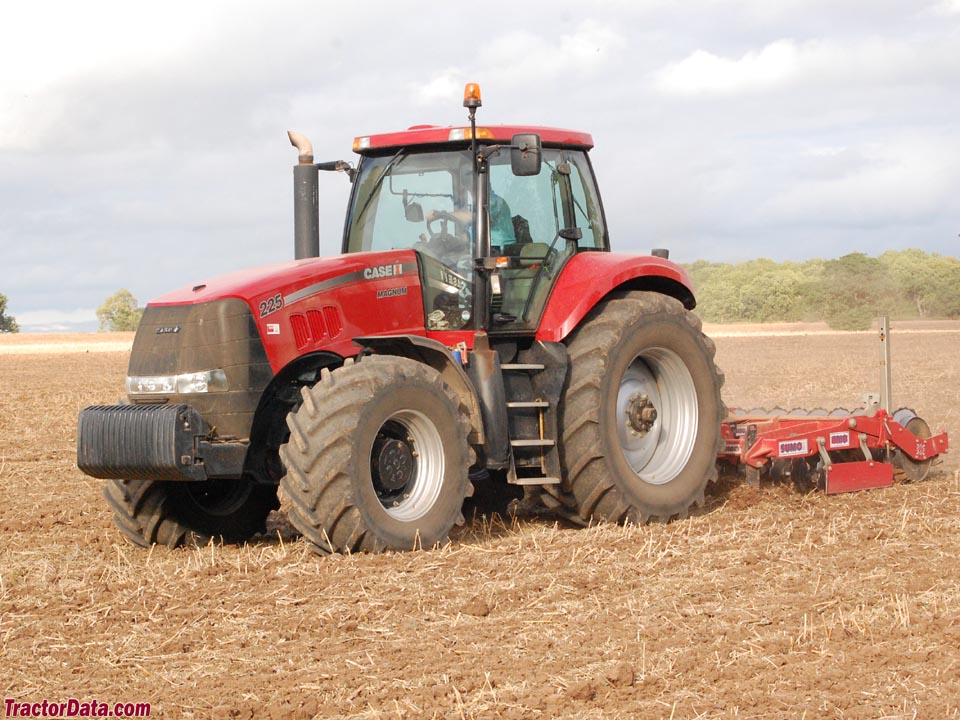

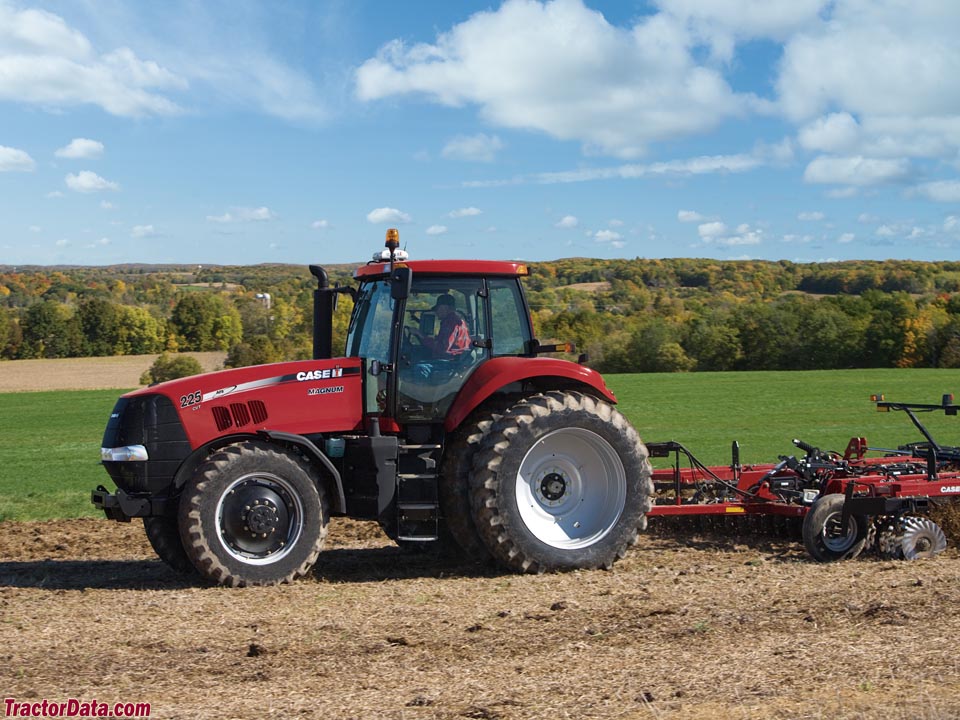

CaseIH Magnum 225
CaseIH Magnum 225 — Model year 2009-20102011-2013 · 205 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
205 hp
Max power
160.2 kW
Weight
8618 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Four-wheel driveReference
Surveyor cab standard with air-conditioning.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Engine167.8 kWReference
Drawbar (tested)128.2 kWReference
FPTReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power167.8 kWReference
Air cleanerdryReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity16.1 LReference
Max power160.2 kWReference
Power at rated engine speed152.7 kWReference
Max power128.2 kWReference
Transmission
continuously variable transmission (CVT)Reference
Typecontinuously variable transmission (CVT)Reference
Gearsininite forward and infinite (2-range) reverse (4-range)Reference
PTO & Hydraulics
PTO (claimed)145.4 kWReference
PTO (tested)160.2 kWReference
Hydraulic system100.3 LReference
TypePressue Flow Compensated (PFC)Reference
Capacity100.3 LReference
Valves3 to 5Reference
Total flow149.9 lpmReference
Rear TypeII/IIIReference
Rear lift5800 kgReference
Rear lift7199 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type1000Reference
Power at rated PTO speed157.9 kWReference
Capacities
Fuel446.6 LReference
Dimensions
Wheelbase300 cmReference
Weight8618 kgReference
Height (cab)326 cmReference
Shipping weight8618 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps200 (optional)Reference
Battery volts12Reference
Test results
Diesel CVT 4WDJune 9 - 13, 2011Link: OCED Tractor Test 1996 fileReference
PTO performanceReference
Fuel use44.7 l/hourReference
Fuel use47.7 l/hourReference
Fuel use45.0 l/hourReference
Drawbar performanceReference
Fuel use48.8 l/hourReference
Pull at 9.0 KPHReference
Max pull8827 kgReference
Pull at 5.2 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
