Tractor · 2008Unverified

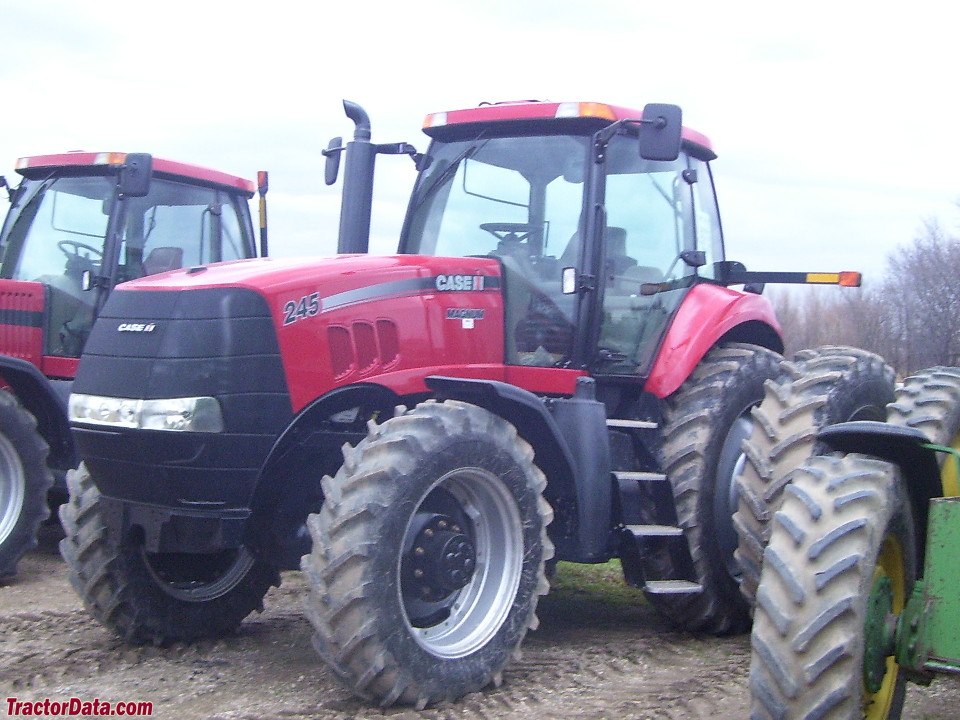

CaseIH Magnum 245

Name: CaseIH Magnum 245
Brand: CaseIH

CaseIH Magnum 245 — Magnum Series · 204 hp. Reference specifications; pending source verification.

The CaseIH Magnum 245 is a tractor with a rated output of 204 hp, categorising it among the more powerful machines in its class. Manufactured from 2008 to 2011, it features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine. The tractor has a four-wheel drive configuration with a powershift transmission. It has a listed weight of 20100 to 21010 pounds and is suited for tasks covering approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

204 hp

Max power

181.1 kW

Weight

20100 to 21010 pounds

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

204 hp

Transmissions

18-speed full powershift

Production years

2008-2011

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Original price was $180,576 in 2010Reference

Four-wheel driveReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Cab standard with heat and air-conditioning. Optional luxury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls.Reference

Engine

CNH 8.3L 6-cyl dieselReference

Engine184.9 kWReference

Drawbar (tested)128.8 kWReference

CNHReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Power184.9 kWReference

Air cleanerdual paper elementsReference

Compression17.5:1Reference

Rated RPM2000Reference

Starter volts12Reference

Oil capacity20.8 LReference

Coolant capacity22.7 LReference

Max power181.1 kWReference

Power at rated engine speed152.1 kWReference

Max power128.8 kWReference

Transmission

18-speed full powershiftReference

19-speed full powershiftReference

23-speed full powershiftReference

Typefull powershiftReference

Gears18 forward and 4 reverseReference

Gears19 forward and 4 reverseReference

Gears23 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)149.1 kWReference

PTO (tested)181.1 kWReference

Hydraulic system172.2 LReference

TypePFCReference

Capacity172.2 LReference

Valves3 to 5Reference

Total flow166.5 lpmReference

Total flow223.3 lpmReference

Total flow283.9 lpmReference

Rear TypeIII/IIINReference

Rear TypeIVN/IIIReference

Rear lift6382 kgReference

Rear lift7427 kgReference

Rear lift8573 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Rear PTO Type540/1000Reference

Power at rated PTO speed181.1 kWReference

Capacities

Fuel681.3 LReference

Max capacity12020 kgReference

Dimensions

Wheelbase300 cmReference

Weight20100 to 21010 poundsReference

Front tire380/85R34Reference

Rear tire480/80R46Reference

Ag front380/85R34Reference

Ag rear480/80R46Reference

Height (cab)326 cmReference

Rear axle101 by 3048 mmReference

Rear axle114 by 3048 mmReference

Shipping9117 kgReference

Shipping9480 kgReference

Operating9530 kgReference

Ballasted12437 kgReference

Test results

Diesel 19-speed 4WDMay 1 - 18, 2007Link: OCED Tractor Test 1899 fileReference

PTO performanceReference

Fuel use55.6 l/hourReference

Fuel use47.3 l/hourReference

Drawbar performanceReference

Gear 7 used for power test.Reference

Max pull9130 kgReference

Gear 5 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
