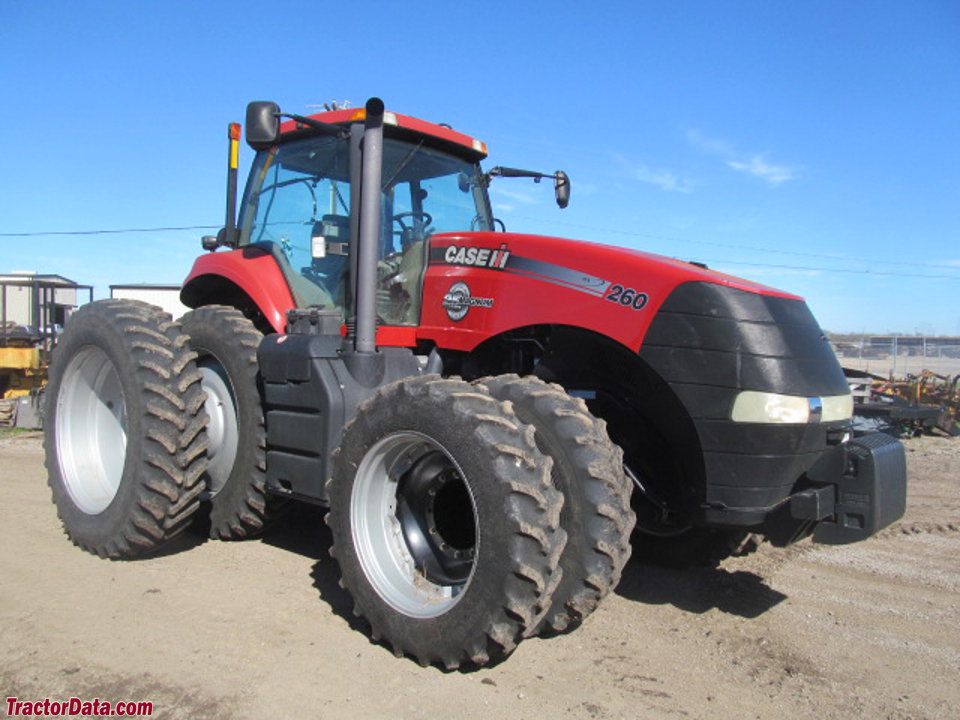

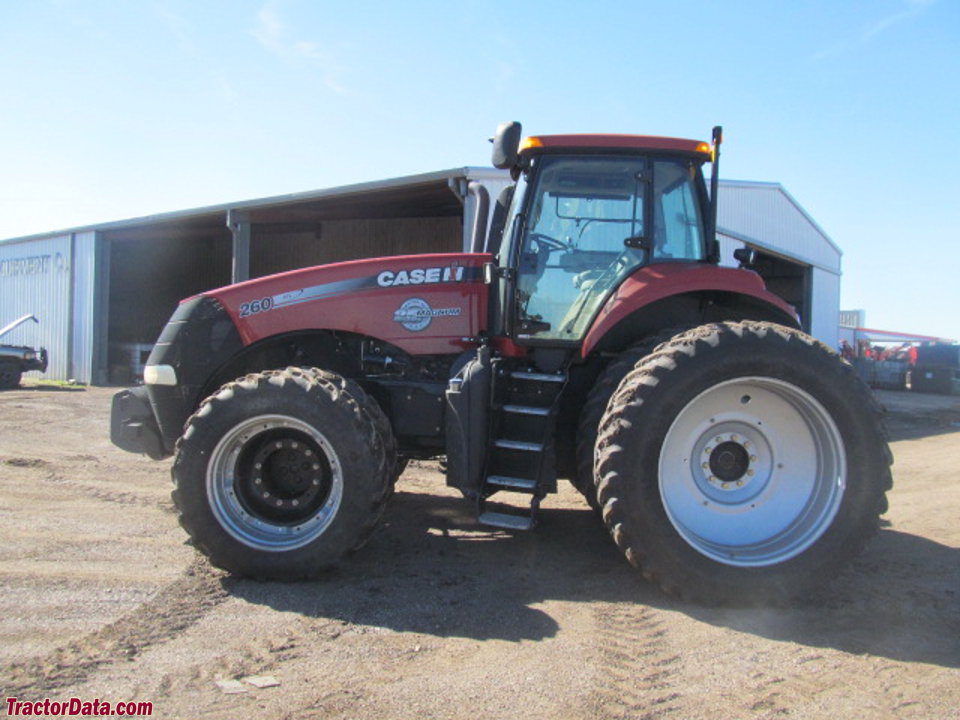

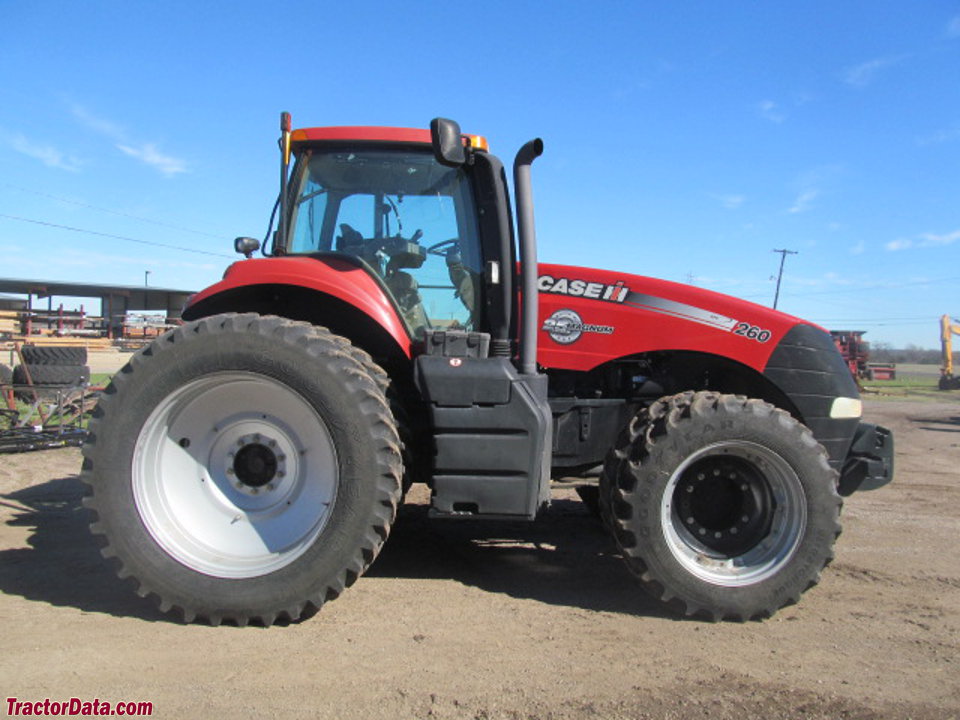

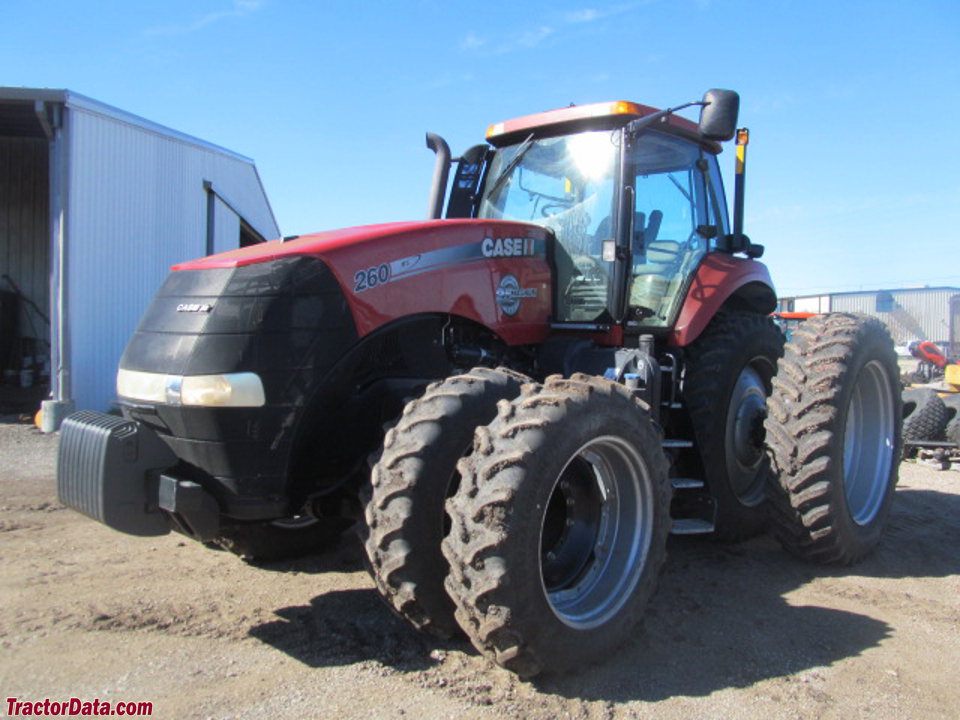

CaseIH Magnum 260
CaseIH Magnum 260 — Magnum Series · 257 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
257 hp
Max power
205.7 kW
Weight
12328 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Four-wheel driveReference
SteeringpowerReference
Magnum Surveyor cab standard. Optional cab suspension.Reference
Engine
FPT 8.7L 6-cyl dieselReference
Fuel tank635.9 LReference
Exhaust fluid (DEF)89.3 LReference
Engine (gross)191.6 kWReference
Engine (max)216.3 kWReference
Drawbar (tested)142.9 kWReference
FPTReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
EmissionsTier 4AReference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)191.6 kWReference
Maximum Power (gross)216.3 kWReference
Rated RPM2000Reference
Starter typeelectricReference
Max power205.7 kWReference
Power at rated engine speed164.0 kWReference
Max power142.9 kWReference
Transmission
19-speed full power shiftReference
18-speed full power shiftReference
23-speed creeperReference
continuously variable transmissionReference
Typefull power shiftReference
Gears19 forward and 4 reverseReference
Gears18 forward and 4 reverseReference
TypecreeperReference
Gears23 forward and 4 reverseReference
TransmissionCVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
The CVT transmission became available on the Magnum 260 for the 2012 model year.Reference
PTO & Hydraulics
PTO (claimed)160.3 kWReference
PTO (tested)205.7 kWReference
Typepressure-flow compensatingReference
Rear valves4 to 6Reference
Total flow166.5 lpmReference
Total flow223.3 lpmReference
Total flow283.9 lpmReference
Rear Type3/3NReference
Rear Type4N/3 (optional)Reference
Rear lift5806 kgReference
Rear lift6713 kgReference
Rear lift6520 kgReference
Rear lift7427 kgReference
Rear lift7892 kgReference
Rear lift8799 kgReference
Front HitchoptionalReference
Front lift4275 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1804Reference
Engine RPM1000@1804Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Power at rated PTO speed205.7 kWReference
Dimensions
Wheelbase304 cmReference
Weight12328 kgReference
Length642 cmReference
Min Width255 cmReference
Height337 cmReference
Rear axle101 by 3048 mmReference
Rear axle114 by 3048 mmReference
Front tread152 to 223 cmReference
Rear tread147 to 229 cmReference
Magnum 260 Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDApril 6 - 18, 2012Link: OCED Tractor Test 2018A fileReference
PTO performanceReference
Fuel use52.6 l/hourReference
Fuel use45.4 l/hourReference
Drawbar performanceReference
Fuel use45.8 l/hourReference
Gear 7 used for power test.Reference
Max pull10036 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
