Tractor · 2025Unverified

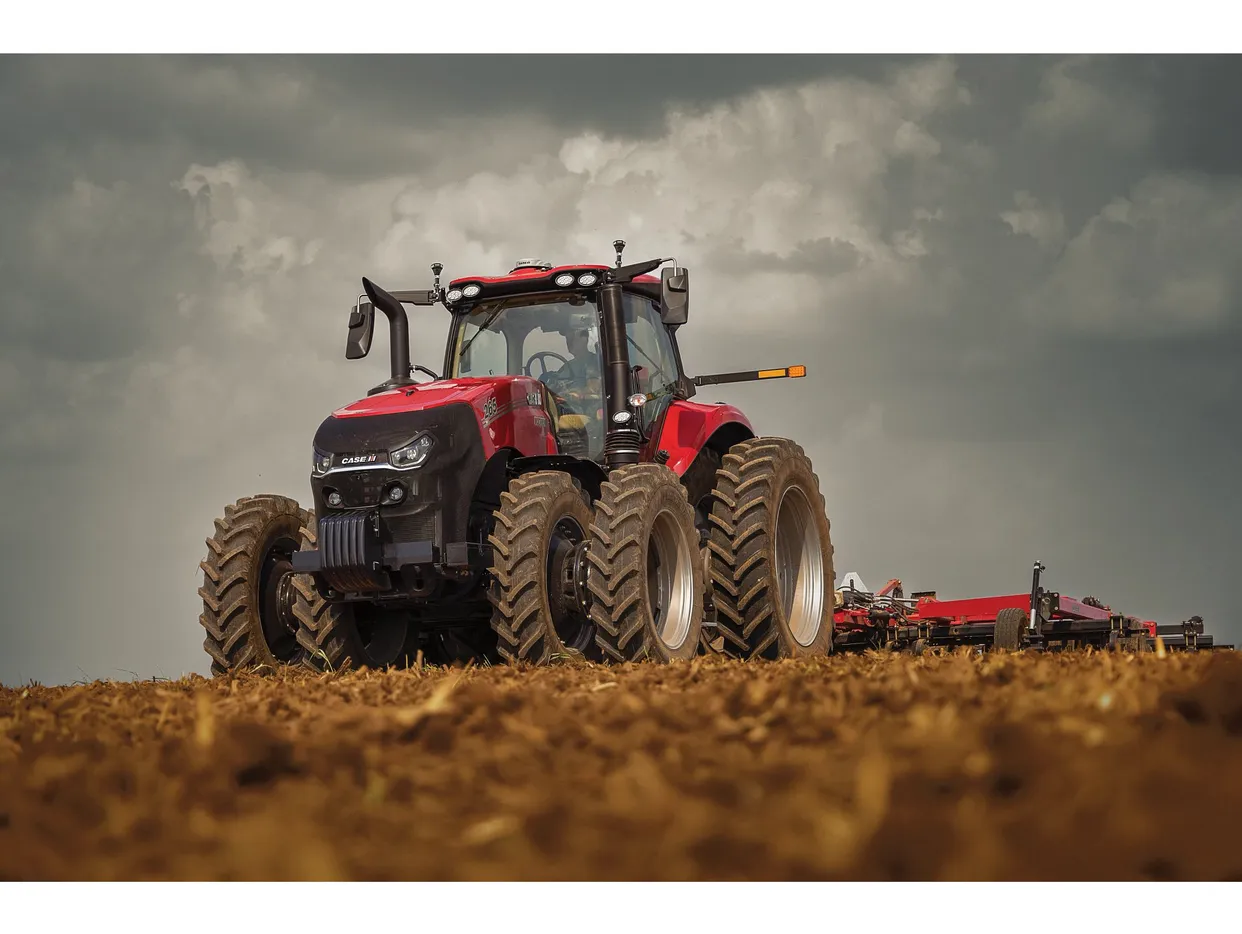

CaseIH Magnum 265

Name: CaseIH Magnum 265
Brand: CaseIH

CaseIH Magnum 265 — Magnum Series · 265 hp. Reference specifications; pending source verification.

The CaseIH Magnum 265 is a tractor model rated at 265 hp, which positions it among the higher-powered machines in its class. It was manufactured in 2025 and features a 6-cylinder turbocharged diesel liquid-cooled engine. This engine powers a four-wheel drive system, which is transmitted through a continuously variable transmission. The listed weight of the tractor is 12972 kg.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

265 hp

Weight

12972 kg

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

265 hp

Recorded weight

12972 kg

Transmissions

19-speed full power shift

Production years

2025-2025

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Original price$476,010 (2026 Power Shift )Reference

Original price$484,126 (2026 CVT )Reference

Four-wheel driveReference

Differential lockelectronic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning.Reference

Engine

FPT 8.7L 6-cyl dieselReference

Fuel tank677.5 LReference

Fuel tank617.0 LReference

Exhaust fluid (DEF)98.4 LReference

Engine (gross)197.6 kWReference

Engine (max)216.3 kWReference

Engine (boost)238.6 kWReference

FPTReference

Variable-geometry turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement8.7 LReference

Bore/Stroke117 x 135 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)197.6 kWReference

Maximum Power (gross)216.3 kWReference

Boost Power238.6 kWReference

Pre-heatingintake heaterReference

Pre-heatingblock heaterReference

Rated RPM2000Reference

StarterelectricReference

Starter volts12Reference

Transmission

19-speed full power shiftReference

continuously-variable transmissionReference

TransmissionPowerDriveReference

Typefull power shiftReference

Gears19 forward and 4 reverseReference

TransmissionCVXDriveReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)162.6 kWReference

Typepressure flow compensatingReference

Valves5 or 6Reference

Pump flow223.3 lpmReference

Pump flow325.5 lpmReference

Rear TypeIII/IIINReference

Rear TypeIV/IVN ((Optional)Reference

Rear lift7212 kgReference

Rear lift7938 kgReference

Front lift4275 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Dimensions

Wheelbase304 cmReference

Wheelbase309 cmReference

Weight12972 kgReference

Front tire420/85R34Reference

Rear tire480/80R50Reference

Standard tires (ag)Front: 420/85R34. Rear: 480/80R50Reference

Shipping weight12972 kgReference

Front axle0 mmReference

Bar rear axle114 by 3048 mmReference

Front tread152 to 223 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240Reference

Batteries2Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
