Tractor · 2011Unverified

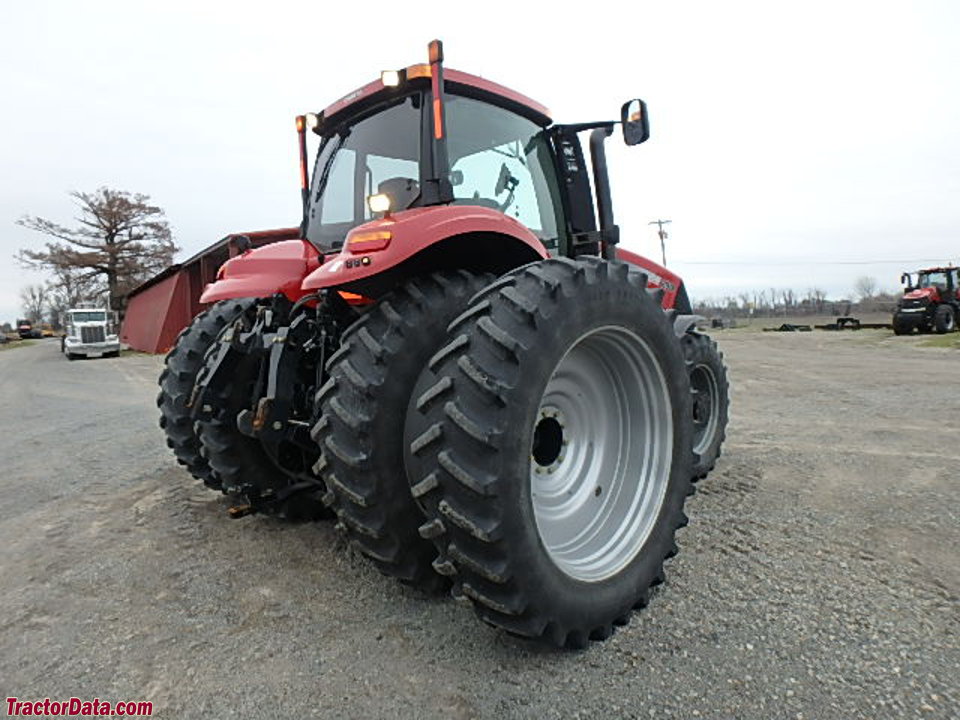

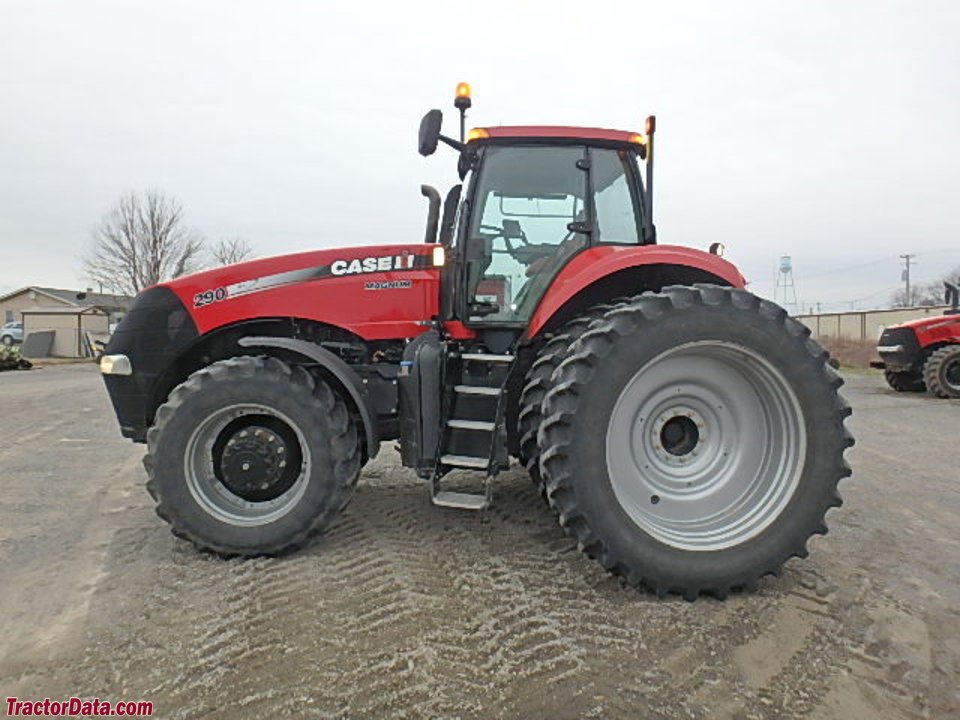

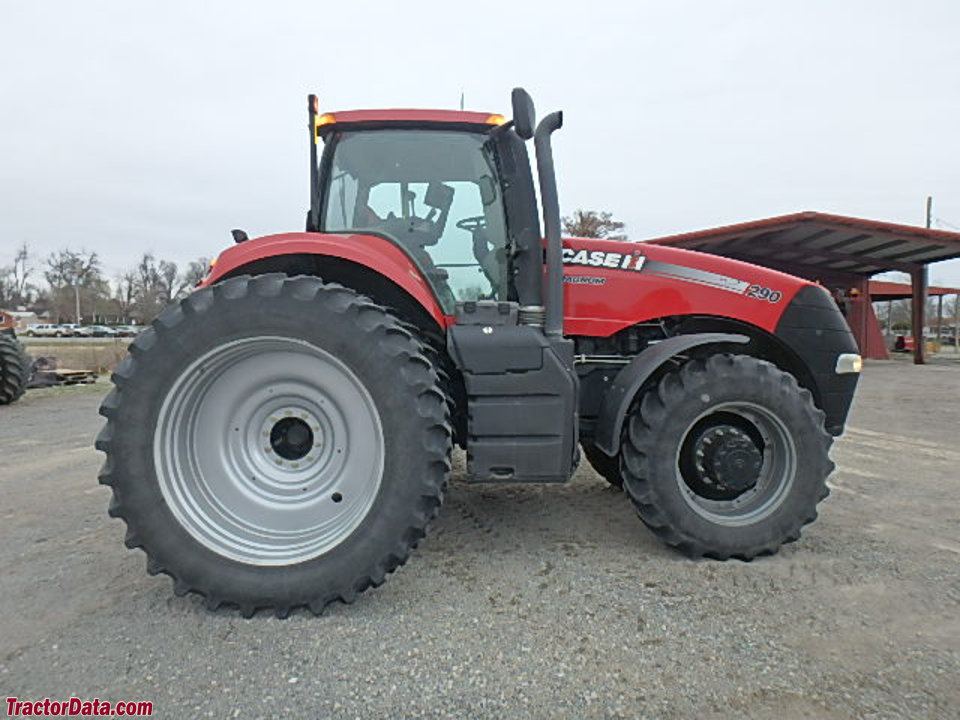

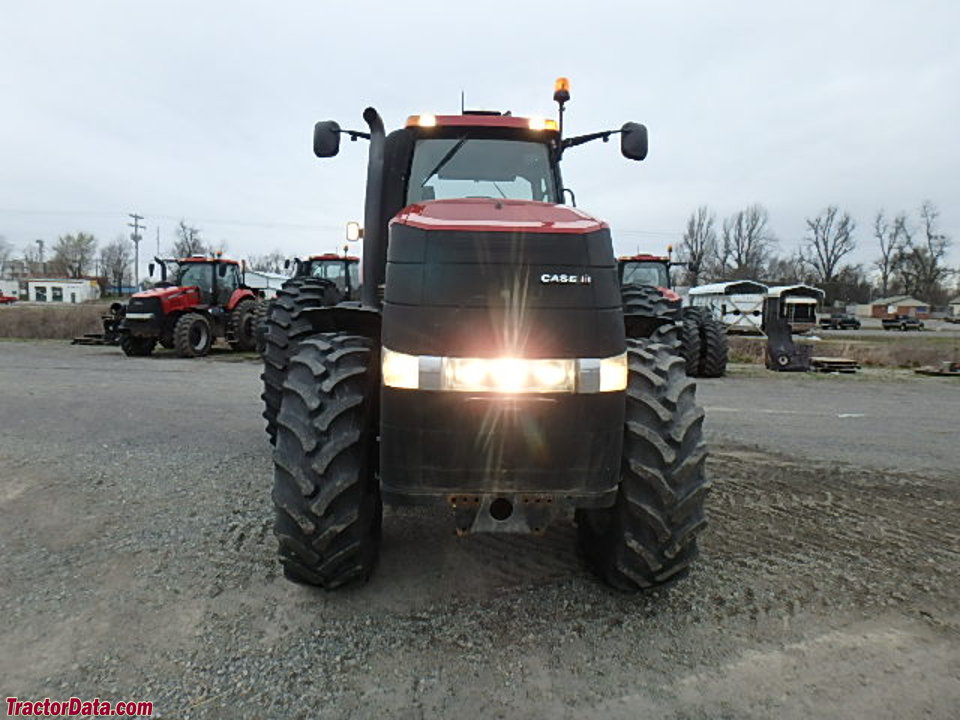

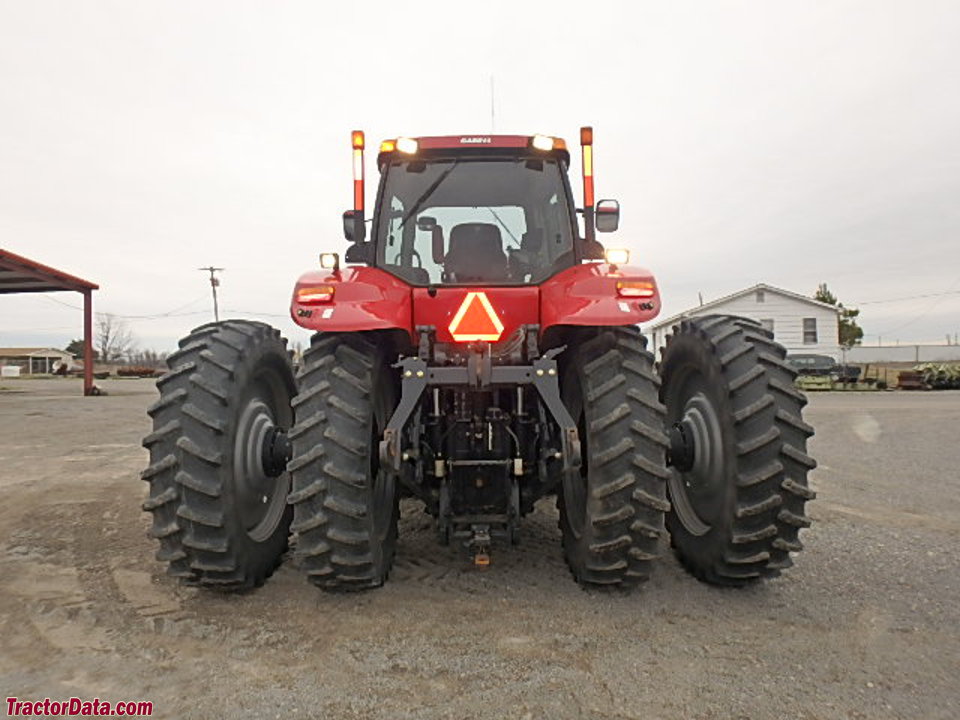

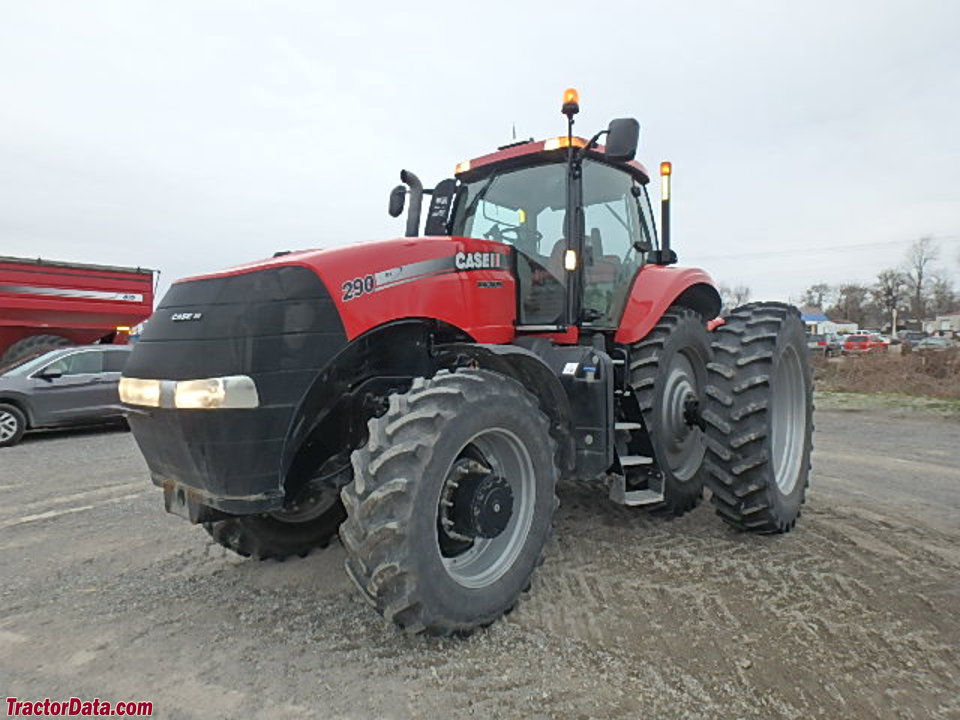

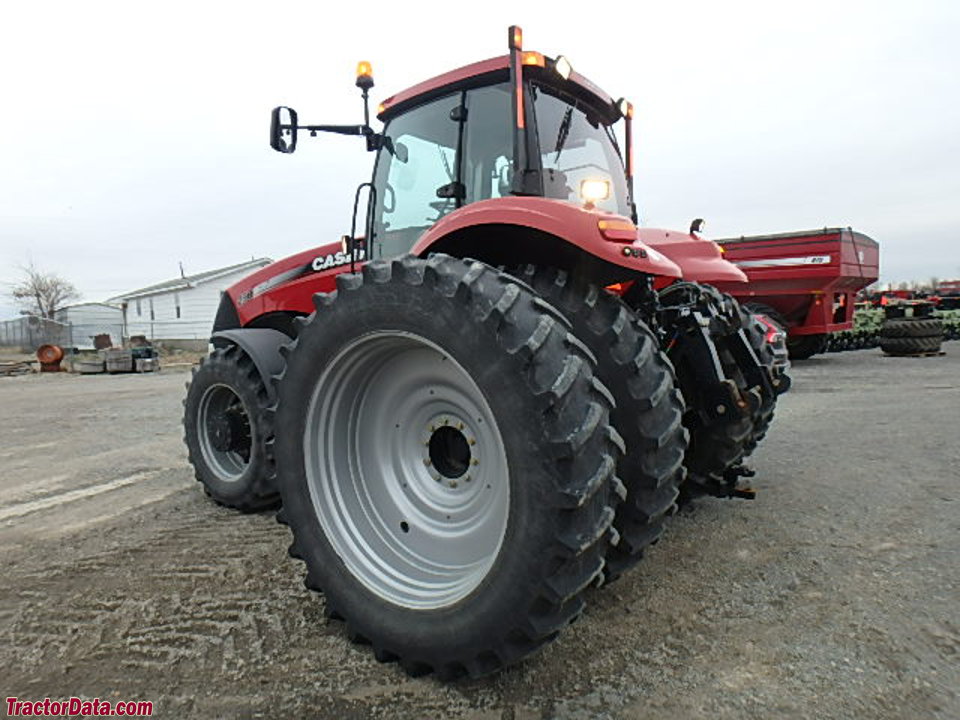

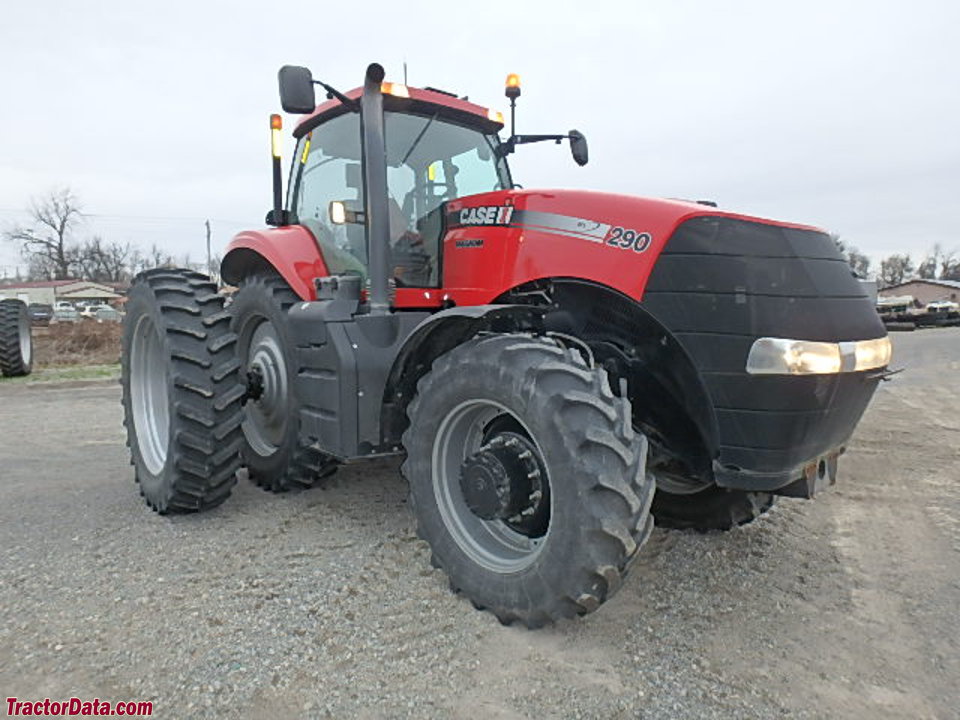

CaseIH Magnum 290

Name: CaseIH Magnum 290
Brand: CaseIH

CaseIH Magnum 290 — Magnum Series · 284 hp. Reference specifications; pending source verification.

The Case IH Magnum 290 is a tractor with a rated power output of 284 horsepower, positioning it at the upper end of its class. Manufactured from 2011 to 2013, this model features a 6-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a continuously variable transmission. Its operating weight is listed as 12,428 kilograms. It is suitable for operations covering 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

284 hp

Max power

224.4 kW

Weight

12428 kg

Catalogue coverage

Variants represented

Richest spec table

89 rows

Recorded power

284 hp

Recorded weight

12428 kg

Transmissions

19-speed full power shift

Production years

2011-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Four-wheel driveReference

SteeringpowerReference

Magnum Surveyor cab standard. Optional cab suspension.Reference

Engine

FPT 8.7L 6-cyl dieselReference

Fuel tank635.9 LReference

Exhaust fluid (DEF)89.3 LReference

Engine (gross)211.8 kWReference

Engine (max)236.4 kWReference

Drawbar (tested)159.3 kWReference

FPTReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.7 LReference

Bore/Stroke117 x 135 mmReference

EmissionsTier 4AReference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)211.8 kWReference

Maximum Power (gross)236.4 kWReference

Rated RPM2000Reference

Starter typeelectricReference

Max power224.4 kWReference

Power at rated engine speed185.3 kWReference

Max power159.3 kWReference

Transmission

19-speed full power shiftReference

18-speed full power shiftReference

23-speed creeperReference

continuously variable transmissionReference

Typefull power shiftReference

Gears19 forward and 4 reverseReference

Gears18 forward and 4 reverseReference

TypecreeperReference

Gears23 forward and 4 reverseReference

TransmissionCVTReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

The CVT transmission became available on the Magnum 290 for the 2012 model year.Reference

PTO & Hydraulics

PTO (claimed)179.0 kWReference

PTO (tested)224.4 kWReference

Typepressure-flow compensatingReference

Rear valves4 to 6Reference

Total flow166.5 lpmReference

Total flow223.3 lpmReference

Total flow283.9 lpmReference

Rear Type3/3NReference

Rear Type4N/3 (optional)Reference

Rear lift5806 kgReference

Rear lift6713 kgReference

Rear lift6985 kgReference

Rear lift7892 kgReference

Rear lift8799 kgReference

Front HitchoptionalReference

Front lift4275 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1804Reference

Engine RPM1000@1804Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Power at rated PTO speed224.4 kWReference

Dimensions

Wheelbase304 cmReference

Weight12428 kgReference

Length642 cmReference

Min Width255 cmReference

Height337 cmReference

Rear axle101 by 3048 mmReference

Rear axle114 by 3048 mmReference

Front tread152 to 223 cmReference

Rear tread147 to 229 cmReference

Magnum 290 Serial Number Location

Serial number plate on the right side of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries2Reference

Battery volts12Reference

Test results

Diesel 18-speed 4WDApril 9 - 18, 2012Link: OCED Tractor Test 2019 fileReference

PTO performanceReference

Fuel use56.8 l/hourReference

Fuel use50.0 l/hourReference

Drawbar performanceReference

Fuel use50.3 l/hourReference

Gear 8 used for power test.Reference

Max pull10669 kgReference

Gear 5 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
