Tractor · 2008Unverified

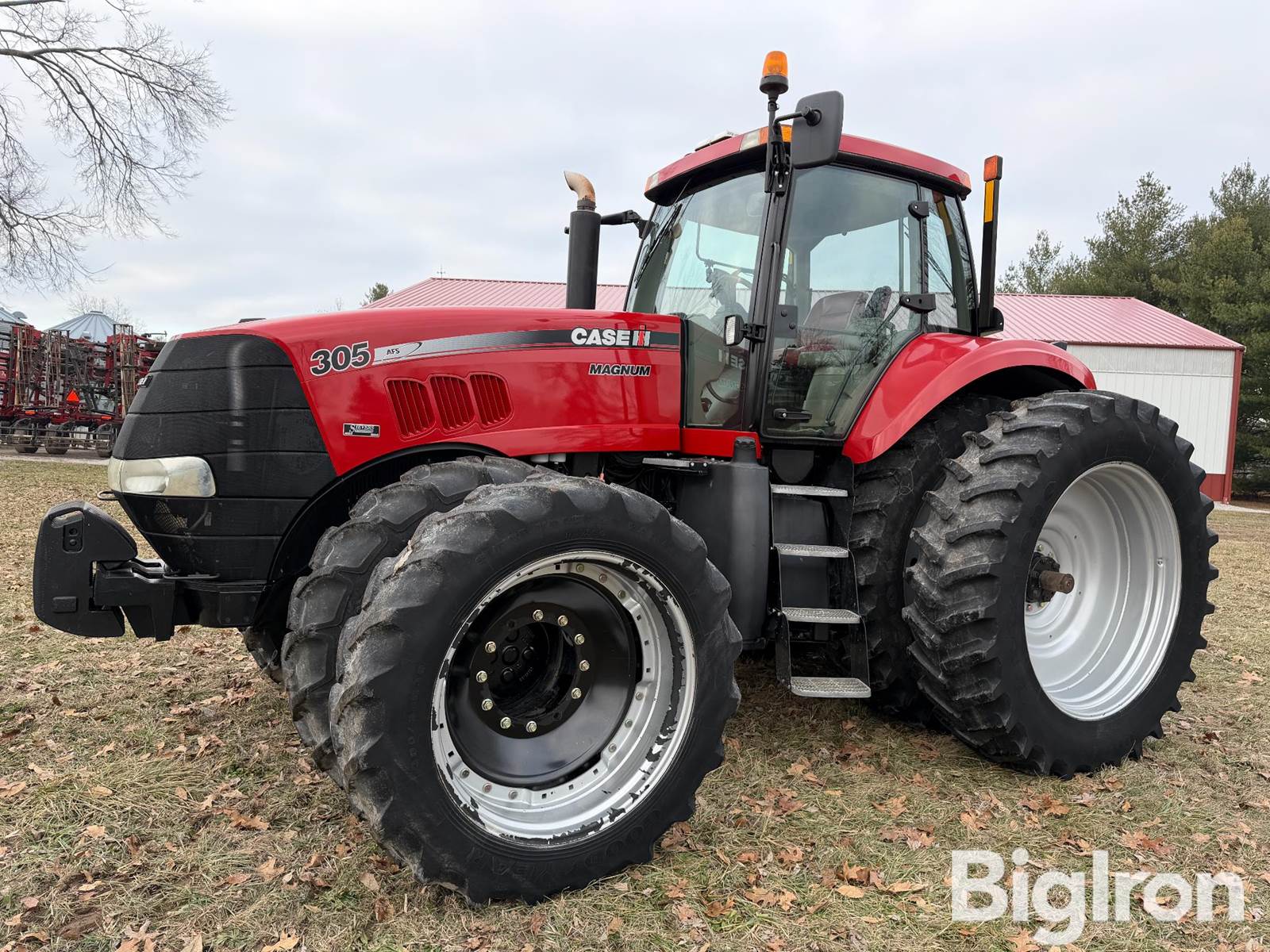

CaseIH Magnum 305
CaseIH Magnum 305 — Magnum Series · 257 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
257 hp
Max power
223.5 kW
Weight
20630 to 21585 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $221,592 in 2010Reference
Four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional luxury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls.Reference
Engine
CNH 8.9L 6-cyl dieselReference
Engine226.7 kWReference
Drawbar (tested)164.3 kWReference
CNHReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.9 LReference
Bore/Stroke114 x 145 mmReference
Power226.7 kWReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2000Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity24.6 LReference
Max power223.5 kWReference
Power at rated engine speed191.4 kWReference
Max power164.3 kWReference
Transmission
18-speed full powershiftReference
19-speed full powershiftReference
23-speed full powershiftReference
Typefull powershiftReference
Gears18 forward and 4 reverseReference
Gears19 forward and 4 reverseReference
Gears23 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)190.2 kWReference
PTO (tested)223.5 kWReference
Hydraulic system172.2 LReference
TypePFCReference
Capacity172.2 LReference
Valves3 to 5Reference
Total flow166.5 lpmReference
Total flow223.3 lpmReference
Total flow283.9 lpmReference
Rear TypeIII/IIINReference
Rear TypeIVN/III optionalReference
Rear lift6382 kgReference
Rear lift7427 kgReference
Rear lift8573 kgReference
Rear PTO Type1000Reference
Rear PTO Type540/1000 optionalReference
Power at rated PTO speed223.5 kWReference
Capacities
Fuel681.3 LReference
Max capacity14742 kgReference
Dimensions
Wheelbase300 cmReference
Weight20630 to 21585 poundsReference
Front tire380/80R38Reference
Rear tire480/80R50Reference
Ag front380/80R38Reference
Ag rear480/80R50Reference
Height (cab)326 cmReference
Rear axle101 by 3048 mmReference
Rear axle114 by 3048 mmReference
Shipping9357 kgReference
Shipping9720 kgReference
Operating9790 kgReference
Ballasted15157 kgReference
Magnum 305 Serial Number Location
Front-right tractor frame, above axle.Reference
Test results
Diesel 19-speed 4WDOctober 24 - November 14, 2007Link: OCED Tractor Test 1912 fileReference
PTO performanceReference
Fuel use64.3 l/hourReference
Fuel use59.0 l/hourReference
Drawbar performanceReference
Gear 9 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
