Tractor · 2005Unverified

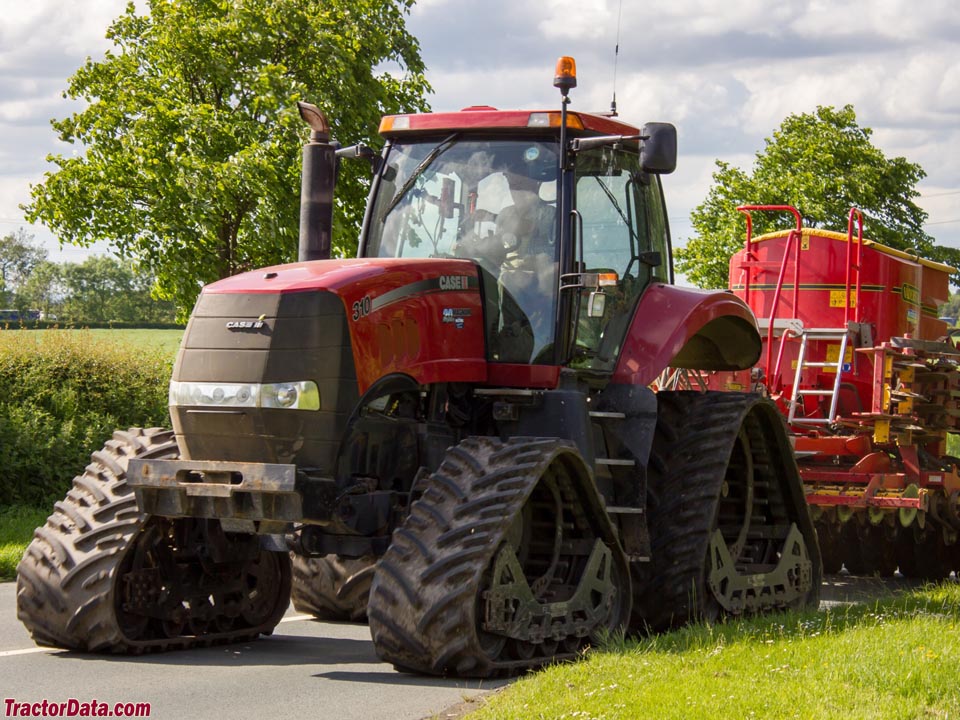

CaseIH Magnum 310

Name: CaseIH Magnum 310
Brand: CaseIH

CaseIH Magnum 310 — Magnum Series · 309 hp. Reference specifications; pending source verification.

The CaseIH Magnum 310 is a tractor with a rated output of 309 horsepower, categorising it among the higher-powered machines in its class. It was manufactured from 2005 to 2011. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, transmitting power through four-wheel drive via a hydrostatic transmission. The tractor's listed weight is 9375 kilograms, and it is suitable for applications involving approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

309 hp

Weight

9375 kg

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

309 hp

Recorded weight

9375 kg

Transmissions

19-speed full power shift

Production years

2005-2011

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Racine, Wisconin, USAReference

Four-wheel driveReference

Final drivesplanetaryReference

Steeringhydrostatic powerReference

Surveyor cab standard with air-conditioning.Reference

Engine

CDC 8.9L 6-cyl dieselReference

Fuel tank681.3 LReference

Engine (gross)230.4 kWReference

CDCReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.9 LReference

Bore/Stroke114 x 145 mmReference

EmissionsTier IIIReference

Rated Power (gross)230.4 kWReference

Maximum Power257.3 kWReference

Fuel systemcommon railReference

Rated RPM2000Reference

Torque1503.8 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

19-speed full power shiftReference

23-speed creeperReference

Typefull power shiftReference

Gears19 forward and 4 reverseReference

Clutchelectro-hydraulic wet discReference

TypecreeperReference

Gears23 forward and 6 reverseReference

PTO & Hydraulics

Typepressure flow compensatingReference

Valves4 or 5Reference

Pump flow141.9 lpmReference

Pump flow166.2 lpmReference

Pump flow224.1 lpmReference

Pump flow283.9 lpmReference

Rear TypeIII/IVNReference

Rear lift (at 24"/610mm)7420 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM1800@1000Reference

Dimensions

Wheelbase300 cmReference

Weight9375 kgReference

Front tire600/65R30Reference

Rear tire710/70R42Reference

Standard tires (ag)Front: 600/65R30. Rear: 710/70R42Reference

Length595 cmReference

Width255 cmReference

Height326 cmReference

Shipping weight9375 kgReference

Bar rear axleReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
