Tractor · 2008Unverified

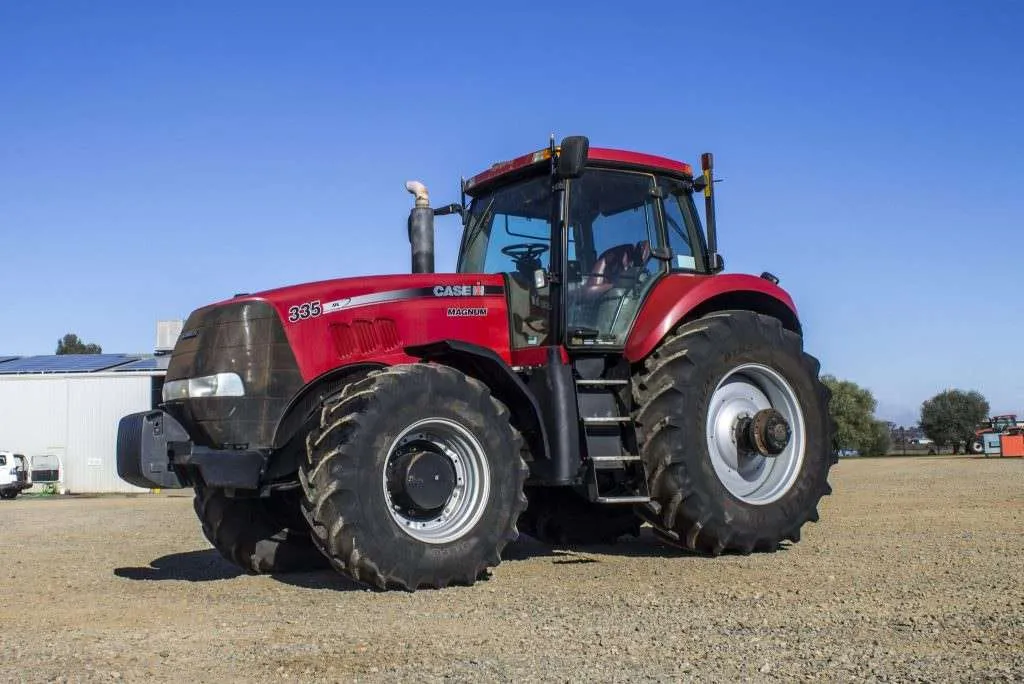

CaseIH Magnum 335
CaseIH Magnum 335 — Magnum Series · 278 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
278 hp
Max power
234.9 kW
Weight
9684 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $240,486 in 2010Reference
Four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional luxury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls.Reference
Engine
CNH 8.9L 6-cyl dieselReference
Engine246.1 kWReference
Drawbar (tested)181.4 kWReference
CNHReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.9 LReference
Bore/Stroke114 x 145 mmReference
Power246.1 kWReference
Compression17.6:1Reference
Rated RPM2100Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity24.6 LReference
Max power234.9 kWReference
Power at rated engine speed207.1 kWReference
Max power181.4 kWReference
Transmission
18-speed full powershiftReference
19-speed full power shiftReference
23-speed creeperReference
TransmissionpowershiftReference
Typefull powershiftReference
Gears18 forward and 4 reverseReference
Typefull power shiftReference
Gears19 forward and 4 reverseReference
Adds lower RPM transport gear to power shift transmission.Reference
TypecreeperReference
Gears23 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)205.1 kWReference
PTO (tested)234.9 kWReference
Hydraulic system172.2 LReference
TypePFCReference
Capacity172.2 LReference
Valves3 to 5Reference
Total flow174.1 lpmReference
Total flow234.7 lpmReference
Total flow295.2 lpmReference
Rear TypeIVN/IIIReference
Rear lift8573 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540/1000Reference
Power at rated PTO speed227.8 kWReference
Capacities
Fuel681.3 LReference
Dimensions
Wheelbase300 cmReference
Weight9684 kgReference
Front tire380/80R38Reference
Rear tire480/80R50Reference
Ag front380/80R38Reference
Ag rear480/80R50Reference
Height (cab)326 cmReference
Shipping weight9684 kgReference
Max weight16839 kgReference
Bar rear axle114 by 3048 mmReference
Front tread152 to 223 cmReference
Rear tread162 to 327 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps175Reference
Battery volts12Reference
Test results
Diesel 19-speed 4WDSeptember 17 - 26, 2008Link: OCED Tractor Test 1936 fileReference
PTO performanceReference
Fuel use70.0 l/hourReference
Fuel use64.0 l/hourReference
Fuel use64.7 l/hourReference
Drawbar performanceReference
Fuel use63.6 l/hourReference
Gear 7 used for power test.Reference
Max pull17247 kgReference
Gear 2 used for pull test.Reference
Speeds
19th gear is at 1750 RPM.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
