Tractor · 2019Unverified

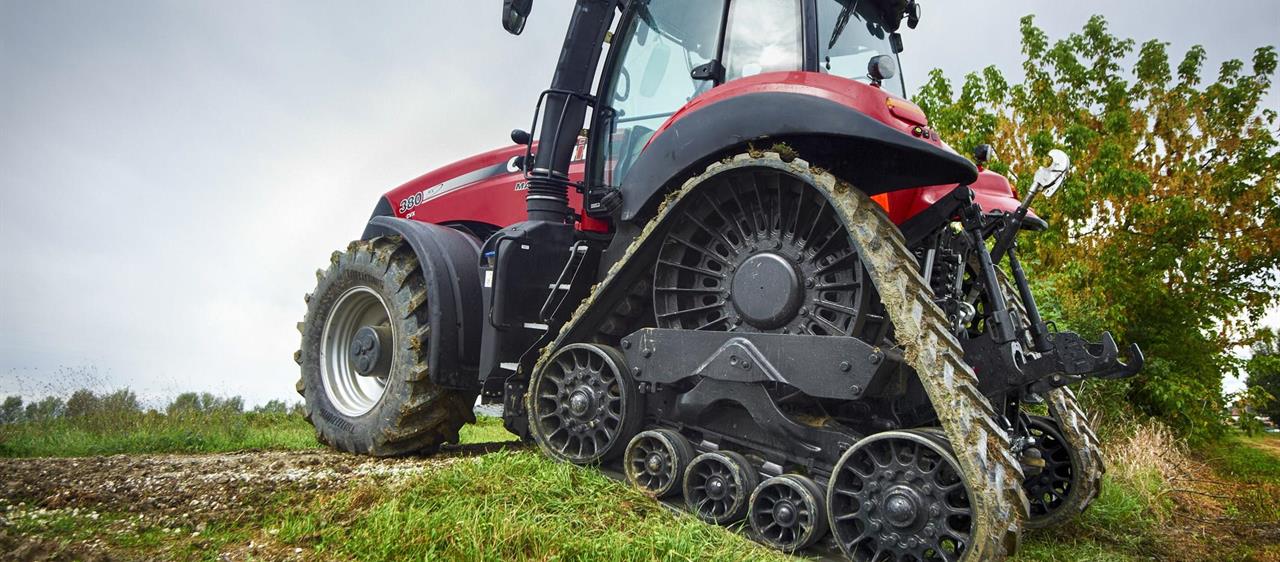

CaseIH Magnum 340 Rowtrac
CaseIH Magnum 340 Rowtrac — Magnum Series · 335 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
335 hp
Weight
16329 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Half-track Crawler tractorReference
Original price$565 (987 2024 PS )Reference
Original price$586,766 (2024 CVT )Reference
Drivehalf-trackReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning. AFSReference
Variants
Magnum 340wheeledReference
Magnum 380RThalf-trackReference
Engine
FPT 8.7L 6-cyl dieselReference
PS Fuel tank677.5 LReference
CVT Fuel tank617.0 LReference
Exhaust fluid (DEF)98.4 LReference
Engine (gross)249.8 kWReference
Engine (max)275.2 kWReference
FPTReference
variable-geometry turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
EmissionsTier IVReference
Rated Power (gross)249.8 kWReference
Maximum Power (gross)275.2 kWReference
Maximum Power (gross)300.5 kWReference
Rated RPM2000Reference
Torque1670.6 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speed full power shiftReference
continuously-variable transmissionReference
TransmissionPowerDriveReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
TransmissionCVXDriveReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)216.3 kWReference
Typepressure flow compensating (PFC)Reference
Pressure210.0 barReference
Valves5 or 6Reference
Pump flow166.5 lpmReference
Pump flow223.3 lpmReference
Pump flow283.9 lpmReference
Rear TypeIV/IIIReference
Rear lift7938 kgReference
Front lift4275 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1592Reference
Engine RPM1000@1803Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Front PTO Type540 (1.375)Reference
Front PTO Type1000 (1.75)Reference
Engine RPM1000@1804Reference
Dimensions
Wheelbase314 cmReference
Weight16329 kgReference
Rear tire420/85R38Reference
Ag rear420/85R38Reference
Height344 cmReference
Front tread152 to 223 cmReference
PS Rear tread193 to 304 cmReference
CVT Rear tread193 to 386 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
