Tractor · 2025Unverified

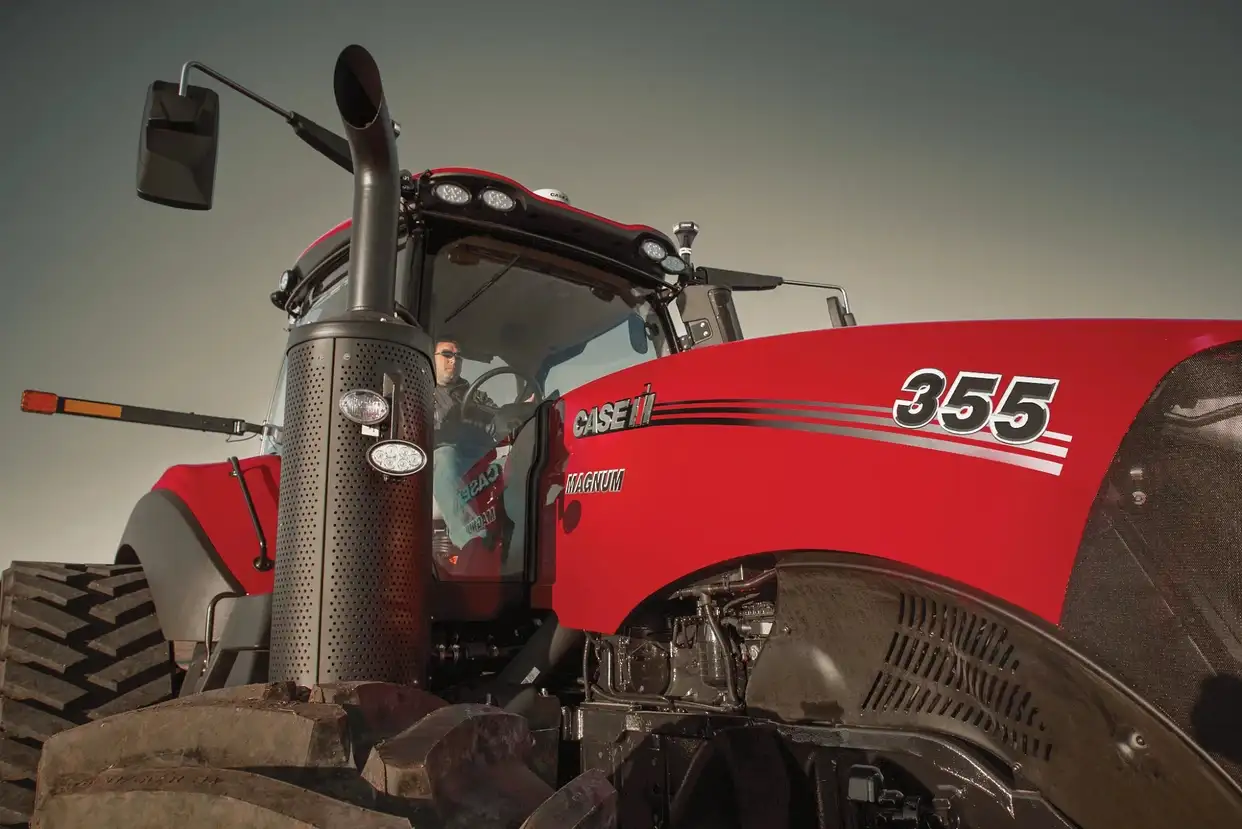

CaseIH Magnum 355
CaseIH Magnum 355 — Magnum Series · 355 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
355 hp
Weight
14605 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price$613,561 (2026 Power Shift )Reference
Original price$620,257 (2026 CVT )Reference
Four-wheel driveReference
Differential lockelectronic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Variants
355 Rowtrachalf-trackReference
Engine
FPT 8.7L 6-cyl dieselReference
Fuel tank677.5 LReference
Fuel tank617.0 LReference
Exhaust fluid (DEF)98.4 LReference
Engine (gross)264.7 kWReference
Engine (max)290.8 kWReference
Engine (boost)305.7 kWReference
FPTReference
Variable-geometry turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)264.7 kWReference
Maximum Power (gross)290.8 kWReference
Boost Power305.7 kWReference
Pre-heatingintake heaterReference
Pre-heatingblock heaterReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
19-speed full power shiftReference
21-speed full power shiftReference
continuously-variable transmissionReference
TransmissionPowerDriveReference
Typefull power shiftReference
Gears19 forward and 4 reverseReference
Gears21 forward and 5 reverseReference
TransmissionCVXDriveReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)225.9 kWReference
Typepressure flow compensatingReference
Valves5 or 6Reference
Pump flow223.3 lpmReference
Pump flow325.5 lpmReference
Rear TypeIV/IIIReference
Rear lift9026 kgReference
Front lift4275 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Front PTO Type1000 (1.75)Reference
Dimensions
Wheelbase314 cmReference
Weight14605 kgReference
Front tire420/85R34Reference
Rear tire480/80R50Reference
Standard tires (ag)Front: 420/85R34. Rear: 480/80R50Reference
Shipping weight14605 kgReference
Front axle0 mmReference
Bar rear axle114 by 3048 mmReference
Bar rear axle127 by 3048 mmReference
Front tread152 to 223 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
