Tractor · 2019Unverified

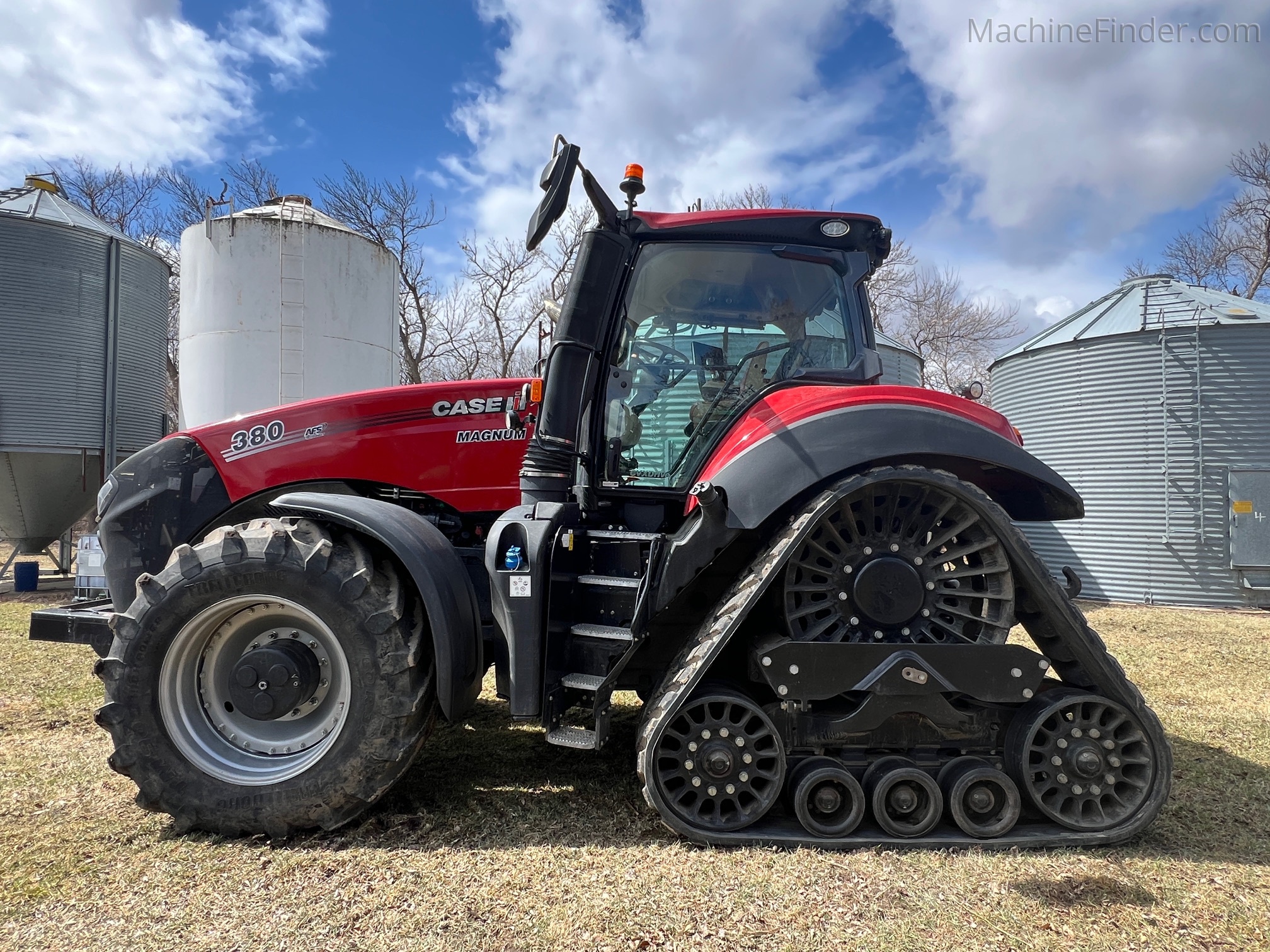

CaseIH Magnum 380 Rowtrac

Name: CaseIH Magnum 380 Rowtrac
Brand: CaseIH

CaseIH Magnum 380 Rowtrac — Magnum Series · 373 hp. Reference specifications; pending source verification.

The Case IH Magnum 380 Rowtrac is a tractor with a rated power output of 373 horsepower, placing it at the more powerful end of its class. This model was produced from 2019 to 2024. It is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a tracked undercarriage, and has a listed operating weight of 16,329 kilograms. It is suitable for operations spanning 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

373 hp

Weight

16329 kg

Catalogue coverage

Variants represented

Richest spec table

68 rows

Recorded power

373 hp

Recorded weight

16329 kg

Production years

2019-2024

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Half-track Crawler tractorReference

Original price was $632,596 in 2024Reference

Drivehalf-trackReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning. AFSReference

Variants

Magnum 380wheeledReference

Magnum 380RThalf-trackReference

Engine

FPT 8.7L 6-cyl dieselReference

Fuel tank617.0 LReference

Exhaust fluid (DEF)98.4 LReference

Engine (gross)278.1 kWReference

Engine (max)307.2 kWReference

FPTReference

variable-geometry turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement8.7 LReference

Bore/Stroke117 x 135 mmReference

EmissionsTier IVReference

Rated Power (gross)278.1 kWReference

Maximum Power (gross)307.2 kWReference

Maximum Power (gross)319.9 kWReference

Rated RPM2000Reference

Torque1849.6 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

continuously-variable transmissionReference

TransmissionCVXDriveReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)234.9 kWReference

Typepressure flow compensating (PFC)Reference

Pressure210.0 barReference

Valves5 or 6Reference

Pump flow166.5 lpmReference

Pump flow223.3 lpmReference

Pump flow283.9 lpmReference

Rear TypeIV/IIIReference

Rear lift9026 kgReference

Front lift4275 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1592Reference

Engine RPM1000@1803Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Front PTO Type540 (1.375)Reference

Front PTO Type1000 (1.75)Reference

Engine RPM1000@1804Reference

Dimensions

Wheelbase314 cmReference

Weight16329 kgReference

Rear tire420/85R38Reference

Ag rear420/85R38Reference

Height344 cmReference

Front tread152 to 223 cmReference

Rear tread193 to 386 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240Reference

Batteries2Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
