Tractor · 2019Unverified

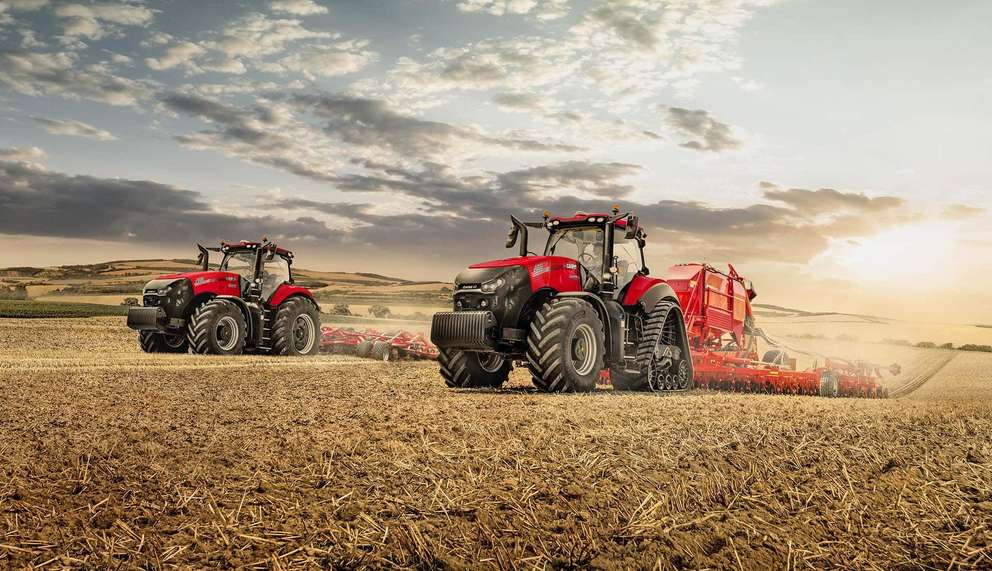

CaseIH Magnum 400 Rowtrac
CaseIH Magnum 400 Rowtrac — Magnum Series · 391 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
391 hp
Max power
289.6 kW
Weight
16329 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Half-track Crawler tractorReference
Original price was $643,804 in 2024Reference
Drivehalf-trackReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning. AFSReference
Variants
Magnum 400wheeledReference
Magnum 400RThalf-trackReference
Engine
FPT 8.7L 6-cyl dieselReference
Fuel tank677.5 LReference
Exhaust fluid (DEF)98.4 LReference
Engine (gross)291.6 kWReference
Engine (max)319.9 kWReference
Drawbar (tested)219.3 kWReference
FPTReference
variable-geometry turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
EmissionsTier IVReference
Rated Power (gross)291.6 kWReference
Maximum Power (gross)319.9 kWReference
Rated RPM2000Reference
Torque1849.6 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Max power289.6 kWReference
Power at rated engine speed261.4 kWReference
Max power219.3 kWReference
Transmission
21-speed full power shiftReference
TransmissionPowerDriveReference
Typefull power shiftReference
Gears21 forward and 5 reverseReference
PTO & Hydraulics
PTO (claimed)257.3 kWReference
PTO (tested)289.6 kWReference
Typepressure flow compensating (PFC)Reference
Pressure210.0 barReference
Valves5 or 6Reference
Pump flow166.5 lpmReference
Pump flow223.3 lpmReference
Pump flow283.9 lpmReference
Rear TypeIV/IIIReference
Rear lift9026 kgReference
Front lift4275 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1592Reference
Engine RPM1000@1803Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Front PTO Type540 (1.375)Reference
Front PTO Type1000 (1.75)Reference
Engine RPM1000@1804Reference
Power at rated PTO speed285.3 kWReference
Dimensions
Wheelbase314 cmReference
Weight16329 kgReference
Rear tire420/85R38Reference
Ag rear420/85R38Reference
Height344 cmReference
Front tread152 to 223 cmReference
Rear tread193 to 304 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel Power shift half-trackOctober 6 - 12, 2021Link: OCED Tractor Test 2243 fileReference
PTO performanceReference
Fuel use75.7 l/hourReference
Fuel use69.3 l/hourReference
Fuel use74.2 l/hourReference
Drawbar performanceReference
Gear 7 used for power test.Reference
Max pull15759 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
