Tractor · 2007Unverified

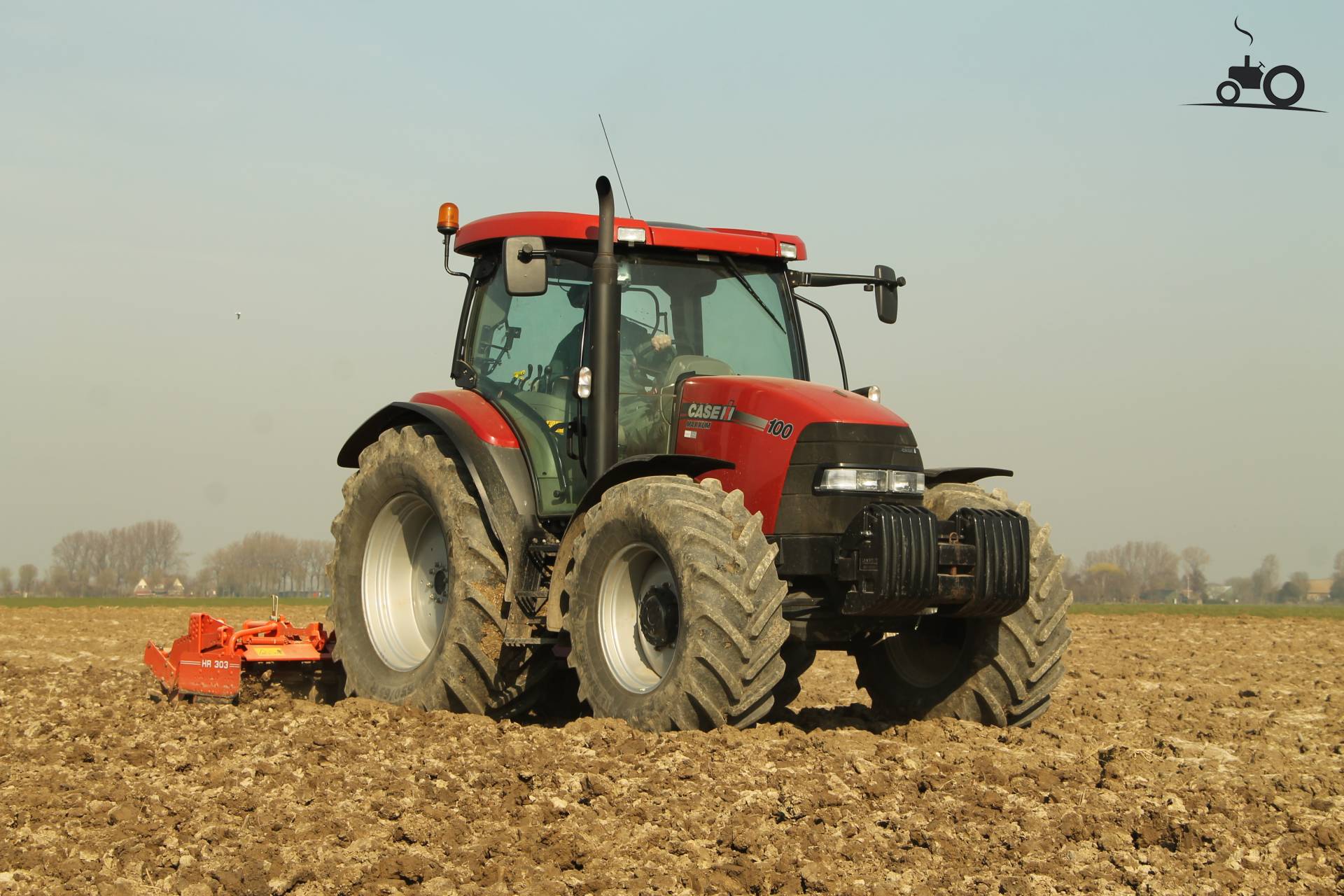

CaseIH Maxxum 100
CaseIH Maxxum 100 — Maxxum Series · 99 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
99 hp
Weight
4790 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Utility tractorReference
Built in Basildon, EnglandReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
T6010similar New Holland modelReference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank176.0 LReference
Engine (gross)73.8 kWReference
FPT NEF F4CReference
turbocharged dieselReference
4-cylinder 8-valveReference
liquid-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsStage 3AReference
Rated Power (gross)73.8 kWReference
Fuel systemmechanical injectionReference
Compression17.5:1Reference
Rated RPM2200Reference
Torque409.5 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed partial power shiftReference
17-speed partial power shiftReference
TransmissionAutoShiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Four power shift gears in four ranges. Autoshift provides automatic shifting to maintain engine load.Reference
TransmissionEconoReference
Gears17 forward and 16 reverseReference
The Econo transmission provides an overdrive 17th gear for transport speeds.Reference
PTO & Hydraulics
Typeopen centerReference
Typeclosed centerReference
Pump flow79.9 lpmReference
Pump flow113.2 lpmReference
Steering flow39.7 lpmReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Clutch1000:2120Reference
Front PTO Type1000Reference
Dimensions
Wheelbase241 cmReference
Weight4790 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Standard tires (ag)Front: 13.6R24. Rear: 16.9R34Reference
Length429 cmReference
Width187 cmReference
Height (cab)269 cmReference
Max weight9000 kgReference
Clearance (drawbar)42 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
