Tractor · 2007Unverified

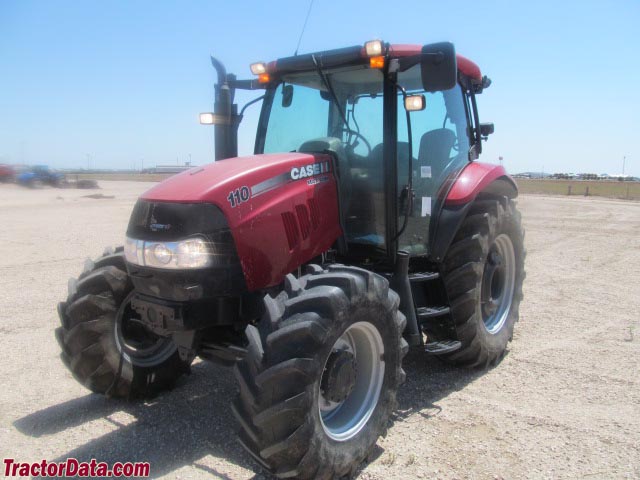

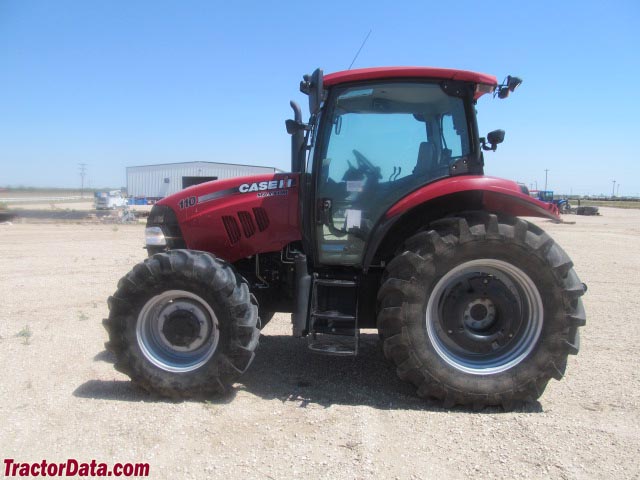

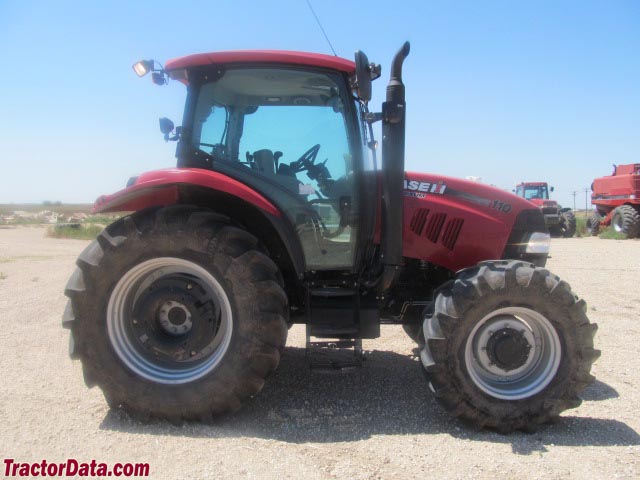

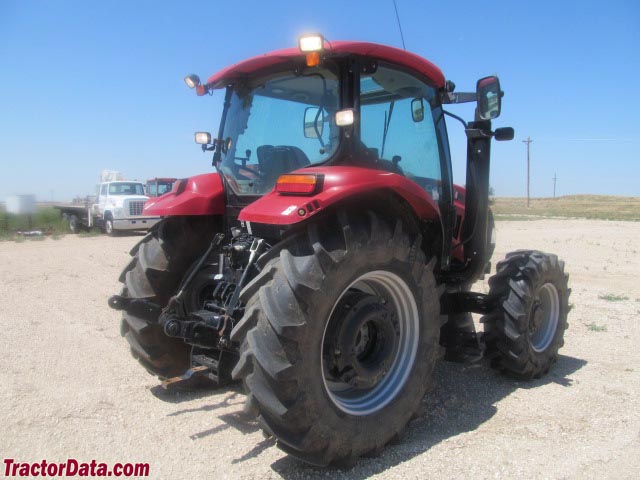

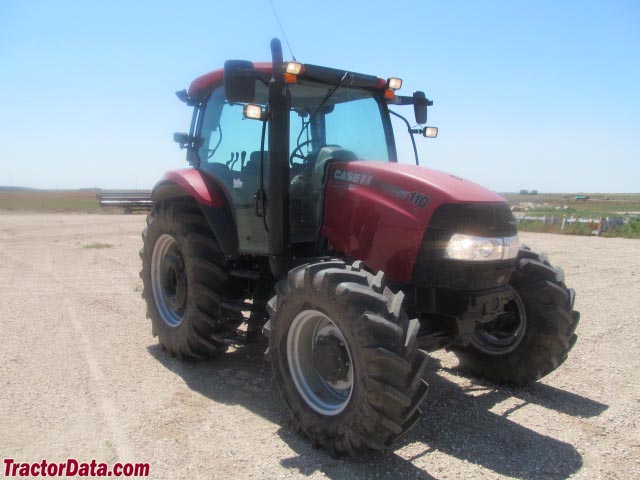

CaseIH Maxxum 110
CaseIH Maxxum 110 — Model year 2007-20112012-2014 · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Max power
72.3 kW
Weight
9202 to 11345 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Original price$51,434 (2011 2WD ROPS)Reference
Original price$84,877 (2011 PRO Cab)Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Two-post folding ROPS. Cab optional. Deluxe cab standard on PRO modelReference
Variants
110 PRO4WD, deluxe cab, PFC hydraulicsReference
T6020 Elitesimilar New Holland modelReference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank176.0 LReference
Engine (gross)82.0 kWReference
Engine (max)90.0 kWReference
Drawbar (tested)61.4 kWReference
FPT NEF F4CReference
turbocharged aftercooled dieselReference
4-cylinder 8-valveReference
liquid-cooled inlineReference
The 8-valve mechanically-injected engine was used the on the base model Maxxum 110 Value.Reference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Rated Power (gross)82.0 kWReference
Fuel systemmechanical injectionReference
Air cleanerdual paper elmentsReference
Compression17.5:1Reference
Rated RPM2200Reference
Torque509.9 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
4-cylinder 16-valveReference
The 16-valve electronically-injected engine was used on the Maxxum 110 Pro/Multicontroller model.Reference
Maximum Power (gross)90.0 kWReference
Boost Power105.0 kWReference
Fuel systemelectronic high pressure common railReference
Compression16.5:1Reference
Torque520.7 NmReference
Max power72.3 kWReference
Power at rated engine speed72.0 kWReference
Max power61.4 kWReference
Max power80.9 kWReference
Power at rated engine speed73.8 kWReference
Max power58.7 kWReference
Transmission
12-speed mechanical shuttleReference
24-speed partial power shiftReference
16-speed partial power shiftReference
17-speed partial power shiftReference
TransmissionSynchroshiftReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges (I-III).Reference
Typepartial power shiftReference
Gears24 forward and reverseReference
The 24-speed transmission adds a high-low power shift to the base Synchroshift 12-speed transmission.Reference
TransmissionAutoShiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Four power shift gears in four ranges. Autoshift provides automatic shifting to maintain engine load.Reference
TransmissionEconoReference
Gears17 forward and 16 reverseReference
The Econo transmission provides an overdrive 17th gear for transport speeds.Reference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
PTO (tested)80.9 kWReference
Typeopen centerReference
Typeclosed center PFC (110 PRO)Reference
Valves2 to 4Reference
Pump flow62.8 lpmReference
Pump flow100.3 lpmReference
Total flow102.6 lpmReference
Total flow140.0 lpmReference
Steering flow39.7 lpmReference
Rear Type2Reference
Rear Type2/3N (110 PRO)Reference
Controlmechanical draft controlReference
Controlelectronic draft control (110 PRO)Reference
Rear lift3406 kgReference
Rear lift3997 kgReference
Rear lift4363 kgReference
Front HitchIIReference
Front lift3700 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@2120Reference
Front PTOindependentReference
Front PTO Type1000Reference
Power at rated PTO speed71.9 kWReference
Power at rated PTO speed74.7 kWReference
Dimensions
2WD Wheelbase236 cmReference
4WD Wheelbase241 cmReference
Weight9202 to 11345 poundsReference
Front tire11.00-16Reference
Rear tire18.4R38 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 18.4R38 (2WD)Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38 (4WD)Reference
Length429 cmReference
Width186 cmReference
Height (ROPS)289 cmReference
Height (cab)281 cmReference
4174 kgReference
4340 kgReference
4573 kgReference
4739 kgReference
4819 kgReference
Operating4644 kgReference
Operating5146 kgReference
CaseIH Maxxum 110 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
Test results
OECD 2445: diesel 12-speed 4WDReference
OECD 2444: PRO diesel 16-speed 4WDReference
Diesel 12-speed 4WDOctober 2007 - January 2008, Link: OCED Tractor Test 2445 fileReference
PTO performanceReference
Fuel use22.0 l/hourReference
Fuel use22.7 l/hourReference
Drawbar performanceReference
Max pull4170 kgReference
PRO diesel 16-speed 4WDJanuary 2008 - March 2008, Link: OCED Tractor Test 2444 fileReference
Fuel use23.1 l/hourReference
Fuel use23.5 l/hourReference
Gear 7 used for power test.Reference
Max pull5084 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
