Tractor · 2007Unverified

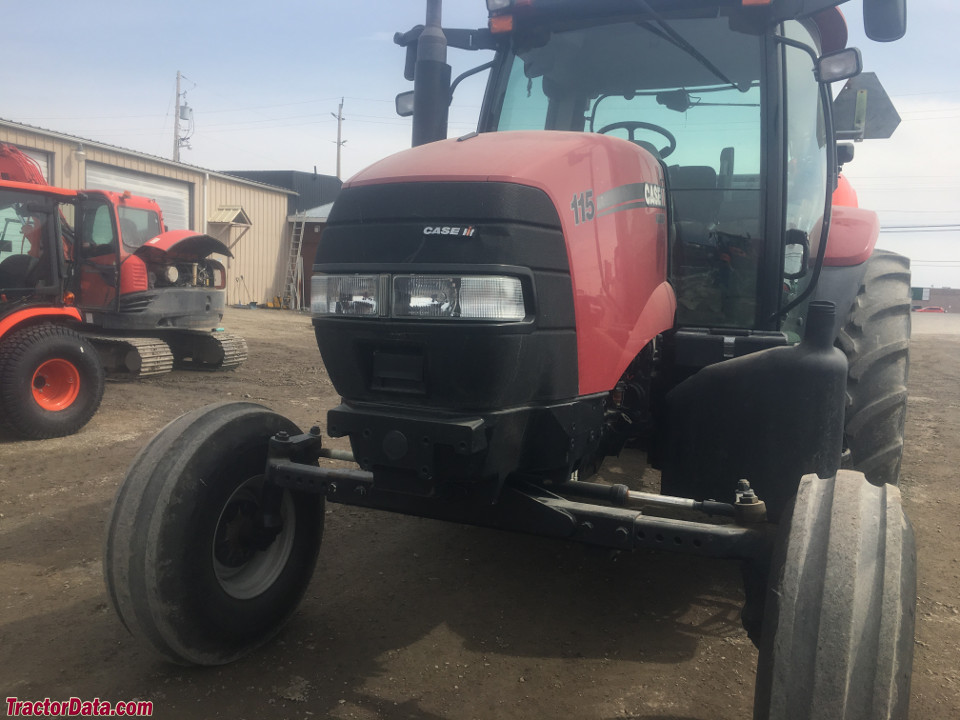

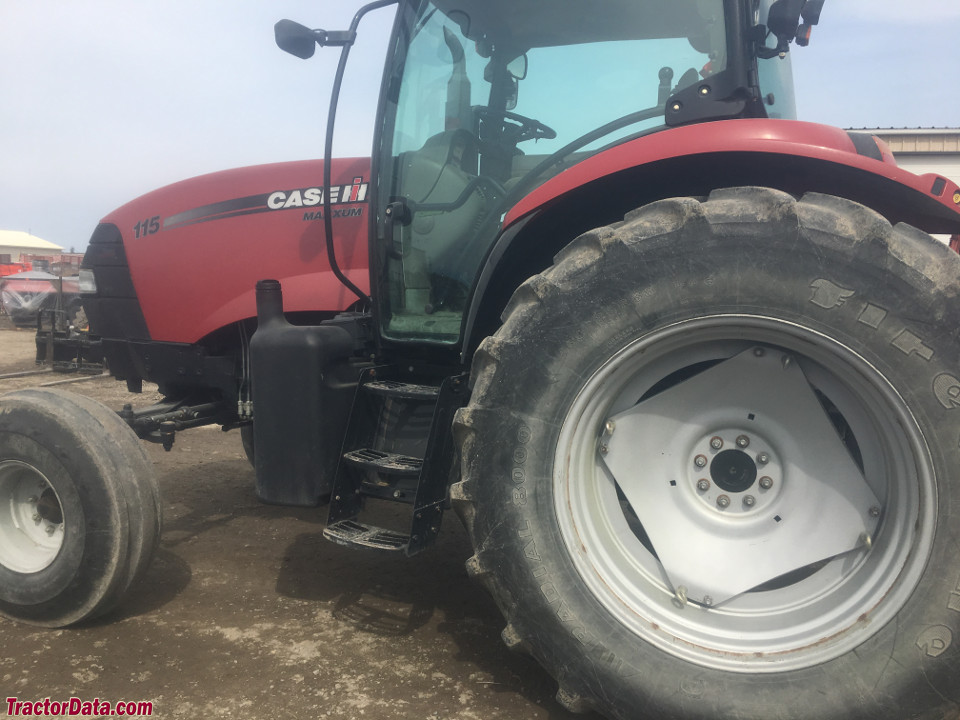

CaseIH Maxxum 115
CaseIH Maxxum 115 — Model year 2007-20112012-20142015-2025 · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Max power
83.1 kW
Weight
9466 to 10900 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Original price was $54,945 in 2011Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Two-post ROPS. Cab optional.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank249.8 LReference
Engine (gross)85.8 kWReference
Drawbar (tested)69.6 kWReference
FPT NEF 667Reference
turbocharged aftercooled dieselReference
6-cylinder 12-valveReference
liquid-cooled inlineReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Rated Power (gross)85.8 kWReference
Fuel systemmechanical injectionReference
Rated RPM2200Reference
Torque522.1 NmReference
Torque RPM1250Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Max power83.1 kWReference
Power at rated engine speed83.0 kWReference
Max power69.6 kWReference
Transmission
12-speed mechanical shuttleReference
24-speed partial power shiftReference
16-speed partial power shiftReference
TransmissionSynchroshiftReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges (I-III).Reference
Typepartial power shiftReference
Gears24 forward and reverseReference
The 24-speed transmission adds a high-low power shift to the base Synchroshift 12-speed transmission.Reference
TransmissionAutoShiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Four power shift gears in four ranges. Autoshift provides automatic shifting to maintain engine load.Reference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
PTO (tested)83.1 kWReference
Typeopen centerReference
Valves2 to 3Reference
Pump flow62.8 lpmReference
Total flow102.6 lpmReference
Steering flow39.7 lpmReference
Rear Type2Reference
Controlmechanical draft controlReference
Rear lift3406 kgReference
Rear lift3997 kgReference
Front HitchIIReference
Front lift3700 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@2120Reference
Front PTOindependentReference
Front PTO Type1000Reference
Power at rated PTO speed82.9 kWReference
Dimensions
Wheelbase265 cmReference
Wheelbase265 cmReference
Weight9466 to 10900 poundsReference
Front tire11.00-16Reference
Rear tire18.4R38 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 18.4R38 (2WD)Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38 (4WD)Reference
Length453 cmReference
Width191 cmReference
Height (ROPS)289 cmReference
Height (cab)281 cmReference
Shipping4293 kgReference
Shipping4459 kgReference
Shipping4859 kgReference
Operating4944 kgReference
CaseIH Maxxum 115 attachments

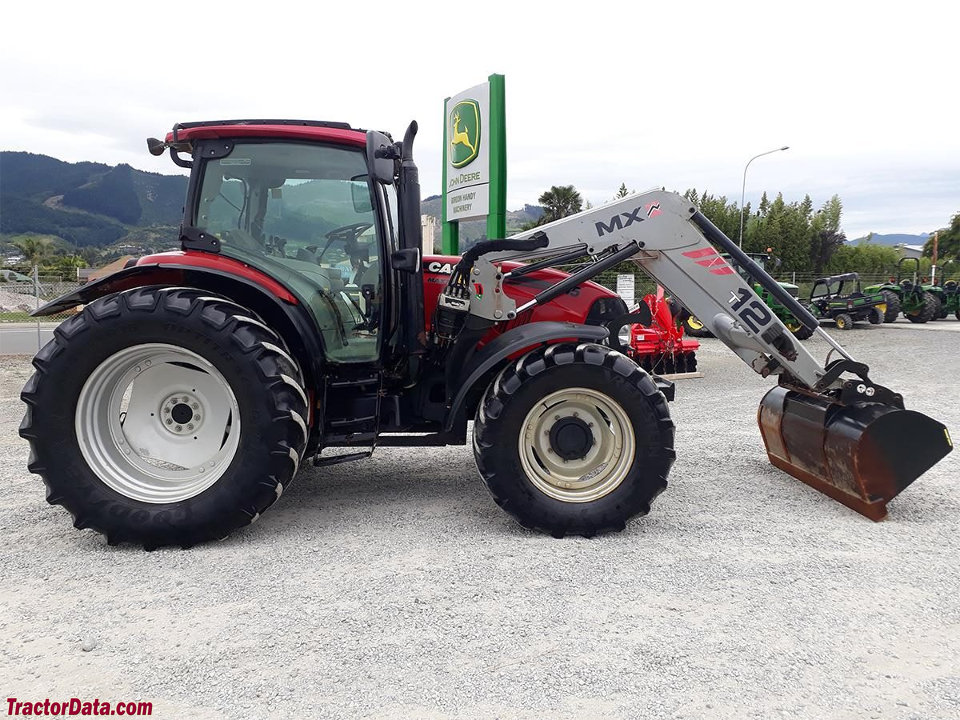

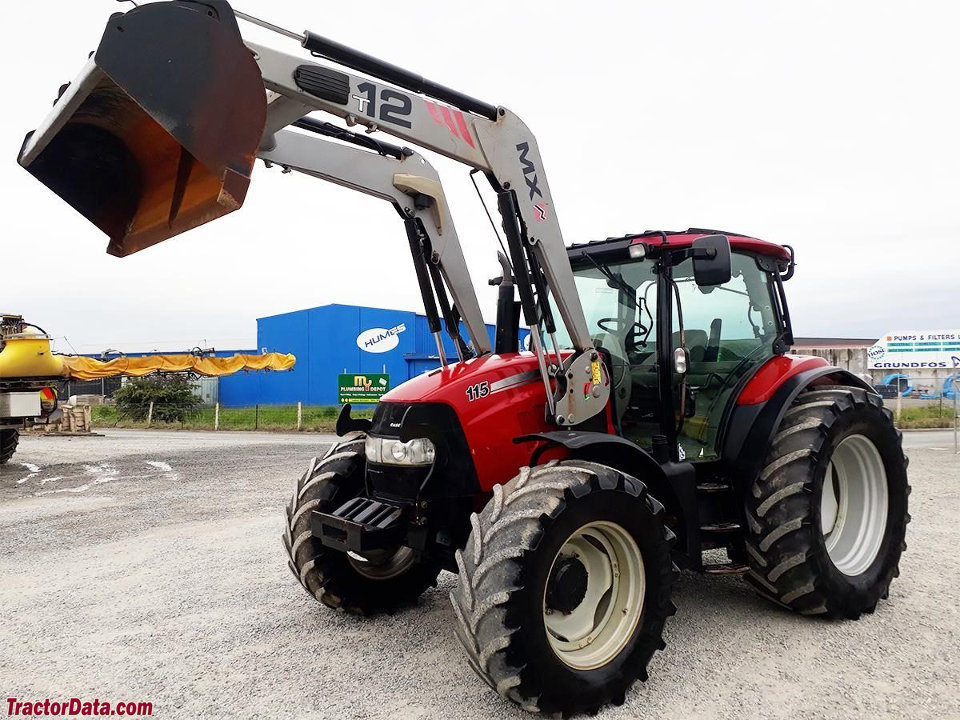

front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDOctober 2007 - January 2008, Link: OCED Tractor Test 2428 fileReference
PTO performanceReference
Fuel use25.0 l/hourReference
Fuel use25.7 l/hourReference
Drawbar performanceReference
Gear 9 used for power test.Reference
Max pull4642 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
