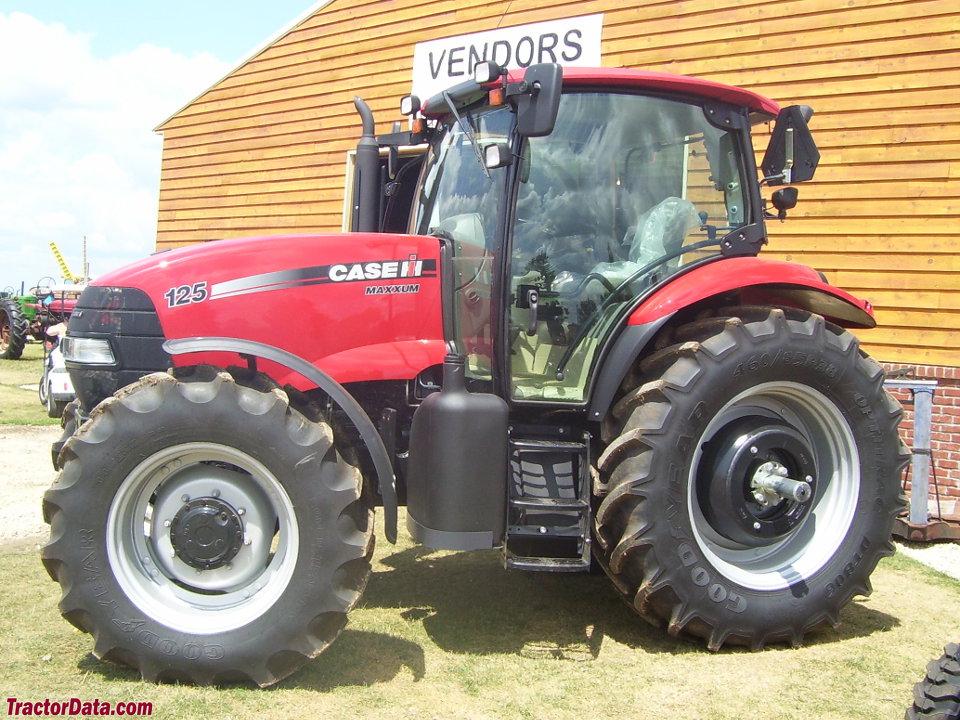

CaseIH Maxxum 125
CaseIH Maxxum 125 — Model year 2007-20112012-20142015-2025 · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Max power
67.4 kW
Weight
9466 to 12270 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Original price was $97,541 in 2011 with PROReference
During official testing, the Maxxum 125 was not capable of the advertised three-point lift. Actual lift was 6,700 pounds or 8,070 with two assist cylinders. Actual lift for the 125 PRO was 9,420 or 11,355 with 90mm lift cylinders.Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Two post ROPS. Cab optional. Deluxe cab standard on 125 PRO modelReference
Variants
125 PRO4WD, deluxe cab, PFC hydraulicsReference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank249.8 LReference
Engine (gross)93.2 kWReference
Drawbar (tested)67.8 kWReference
FPT NEF 667Reference
turbocharged aftercooled dieselReference
6-cylinder 12-valveReference
liquid-cooled inlineReference
The 12-valve mechanically-injected engine was used the on the base model Maxxum 125 Value.Reference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Rated Power (gross)93.2 kWReference
Fuel systemmechanical injectionReference
Cooling systemviscous fanReference
Compression17.5:1Reference
Rated RPM2200Reference
Torque554.6 NmReference
Torque RPM1250Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
6-cylinder 24-valveReference
The 24-valve electronically-injected engine was used on the Maxxum 125 Pro/Multicontroller model.Reference
Displacement6.7 LReference
Fuel systemelectronic high pressure common railReference
Torque592.6 NmReference
Torque RPM1400Reference
Power at rated engine speed85.6 kWReference
Max power67.4 kWReference
Max power91.4 kWReference
Power at rated engine speed82.0 kWReference
Max power67.8 kWReference
Transmission
12-speed mechanical shuttleReference
24-speed partial power shiftReference
16-speed partial power shiftReference
17-speed partial power shiftReference
TransmissionSynchroshiftReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges (I-III).Reference
Typepartial power shiftReference
Gears24 forward and reverseReference
The 24-speed transmission adds a high-low power shift to the base Synchroshift 12-speed transmission.Reference
TransmissionAutoShiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Four power shift gears in four ranges. Autoshift provides automatic shifting to maintain engine load.Reference
TransmissionEconoReference
Gears17 forward and 16 reverseReference
The Econo transmission provides an overdrive 17th gear for transport speeds.Reference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
PTO (tested)91.4 kWReference
Typeopen centerReference
Typeclosed center PFC (125 PRO)Reference
Valves2 to 4Reference
Pump flow62.8 lpmReference
Pump flow100.3 lpmReference
Total flow102.6 lpmReference
Total flow140.0 lpmReference
Steering flow39.7 lpmReference
Rear Type2/3NReference
Controlmechanical draft controlReference
Controlelectronic draft control (125 PRO)Reference
Rear lift3406 kgReference
Rear lift3997 kgReference
Rear lift4363 kgReference
Rear lift5527 kgReference
Front HitchIIReference
Front lift3700 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@2120Reference
Front PTOindependentReference
Front PTO Type1000Reference
Power at rated PTO speed84.5 kWReference
Power at rated PTO speed86.6 kWReference
Dimensions
Wheelbase265 cmReference
Wheelbase265 cmReference
Weight9466 to 12270 poundsReference
Front tire11.00-16Reference
Rear tire18.4R38 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 18.4R38 (2WD)Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38 (4WD)Reference
Length453 cmReference
Width191 cmReference
Height (ROPS)289 cmReference
Height (cab)281 cmReference
Shipping4293 kgReference
Shipping4459 kgReference
Shipping4693 kgReference
Shipping4859 kgReference
Shipping4939 kgReference
Operating5155 kgReference
Operating5565 kgReference
CaseIH Maxxum 125 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
Attachment overview
CaseIH L760 loaderReference
CaseIH L750 loaderReference
The model L760 loader it fitted to the Maxxum 125 Pro while the L750 fits the base model. Both loaders are available with optional mechanical self-leveling.Reference
Test results
OECD 2442: diesel 16-speed 4WDReference
OECD 2449: PRO diesel 16-speed 4WDReference
Diesel 16-speed 4WDOctober 2007 - January 2008, Link: OCED Tractor Test 2442 fileReference
PTO performanceReference
Fuel use26.5 l/hourReference
Fuel use25.7 l/hourReference
Drawbar performanceReference
Gear 7 used for power test.Reference
Max pull4712 kgReference
Gear 5 used for pull test.Reference
PRO diesel 16-speed 4WDApril 2008 - May 2008, Link: OCED Tractor Test 2449 fileReference
Fuel use26.9 l/hourReference
Fuel use27.3 l/hourReference
Max pull5372 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
