Tractor · 2007Unverified

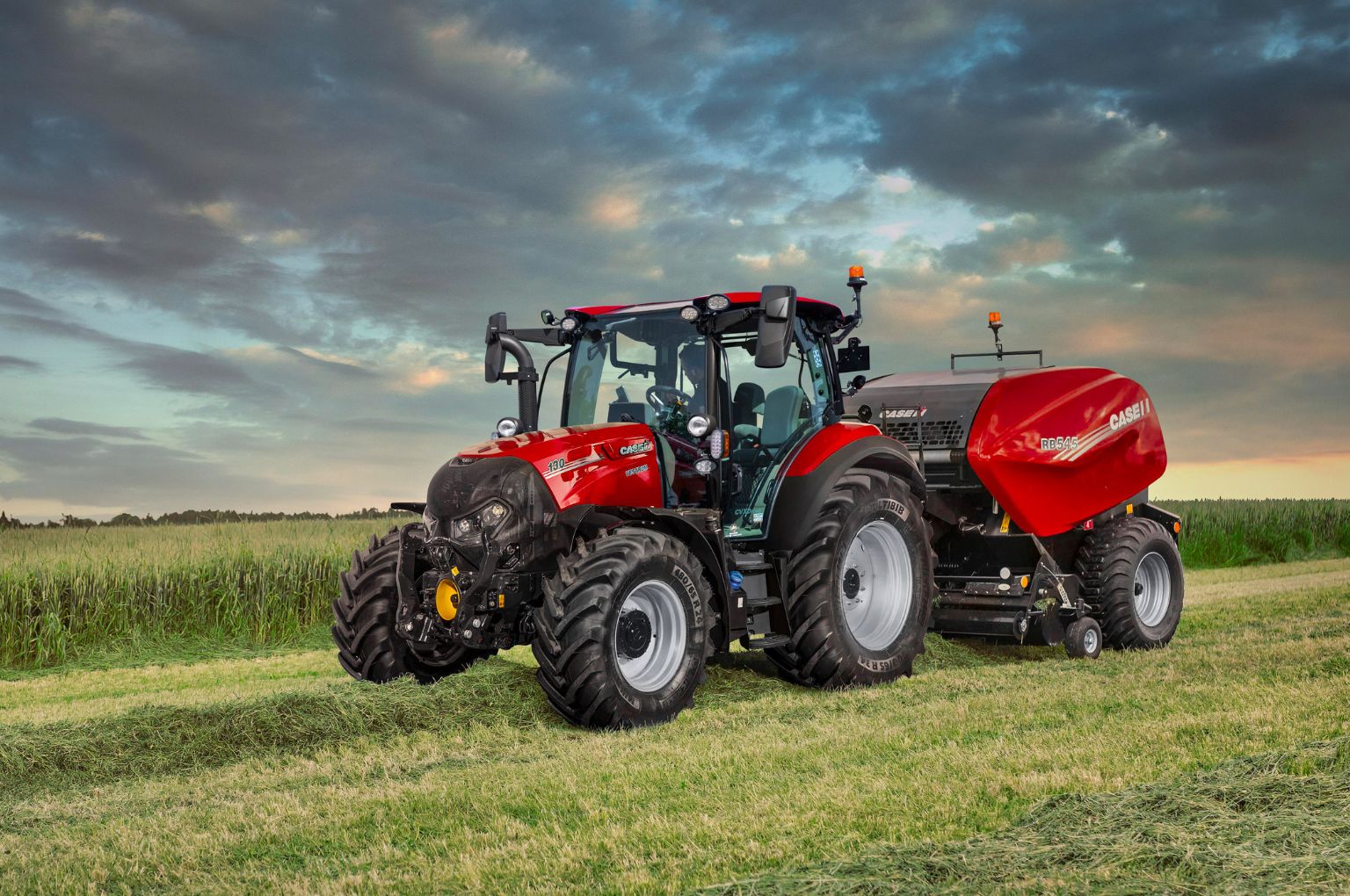

CaseIH Maxxum 130
CaseIH Maxxum 130 — Model year 2007-20112012-2014 · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Max power
90.5 kW
Weight
10626 to 12465 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Original price was $94,784 in 2011Reference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank176.0 LReference
Engine (gross)96.9 kWReference
Drawbar (tested)66.5 kWReference
FPT NEF F4CReference
turbocharged aftercooled dieselReference
4-cylinder 16-valveReference
liquid-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Rated Power (gross)96.9 kWReference
Fuel systemelectronic high pressure common railReference
Cooling systemviscous fanReference
Compression16.5:1Reference
Rated RPM2200Reference
Torque593.9 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Max power90.5 kWReference
Power at rated engine speed82.5 kWReference
Max power66.5 kWReference
Transmission
16-speed partial power shiftReference
17-speed partial power shiftReference
TransmissionAutoShiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Four power shift gears in four ranges. Autoshift provides automatic shifting to maintain engine load.Reference
TransmissionEconoReference
Gears17 forward and 16 reverseReference
The Econo transmission provides an overdrive 17th gear for transport speeds.Reference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (tested)90.5 kWReference
Typeclosed center PFCReference
Valves2 to 4Reference
Pump flow100.3 lpmReference
Total flow140.0 lpmReference
Steering flow39.7 lpmReference
Rear Type2/3NReference
Controlelectronic draft controlReference
Rear lift4363 kgReference
Rear lift5527 kgReference
Front HitchIIReference
Front lift3700 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@2120Reference
Front PTOindependentReference
Front PTO Type1000Reference
Power at rated PTO speed84.8 kWReference
Dimensions
Wheelbase241 cmReference
Weight10626 to 12465 poundsReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
Length429 cmReference
Width186 cmReference
Height (cab)289 cmReference
Shipping weight4819 kgReference
Operating weight5654 kgReference
Rear axle2489 mmReference
Front tread156 to 235 cmReference
CaseIH Maxxum 130 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDFebruary 2008 - September 2008, Link: OCED Tractor Test 2483 fileReference
PTO performanceReference
Fuel use26.9 l/hourReference
Fuel use26.5 l/hourReference
Drawbar performanceReference
Gear 7 used for power test.Reference
Max pull5570 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
