Tractor · 2015Unverified

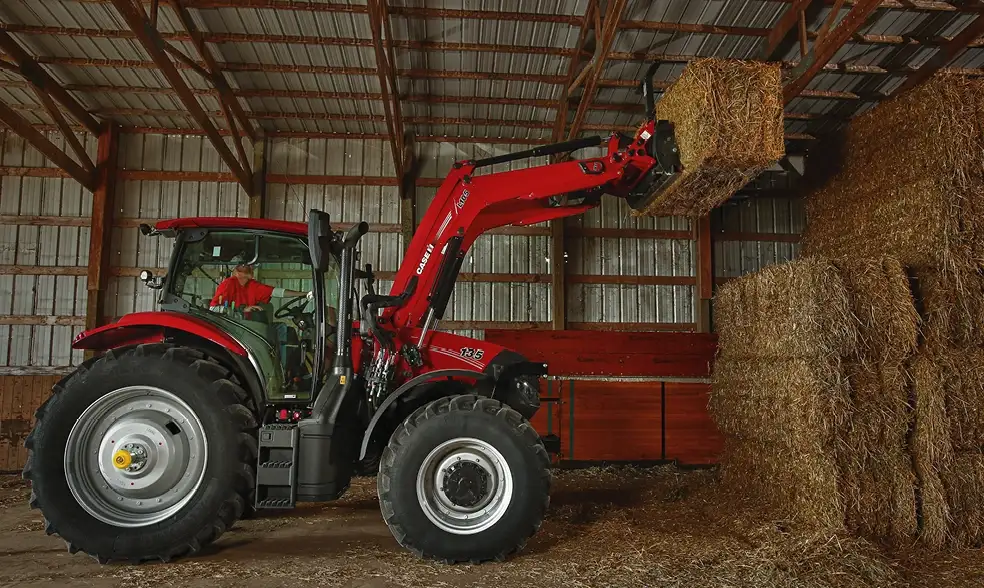

CaseIH Maxxum 135

Name: CaseIH Maxxum 135
Brand: CaseIH

CaseIH Maxxum 135 — Maxxum Series · 135 hp. Reference specifications; pending source verification.

The CaseIH Maxxum 135 is a tractor with a rated power output of 135 horsepower. It was manufactured in 2015. The tractor is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight ranges from 10825 to 11375 pounds, making it suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

135 hp

Max power

97.7 kW

Weight

10825 to 11375 pounds

Catalogue coverage

Variants represented

Richest spec table

101 rows

Recorded power

135 hp

Transmissions

16-speed partial power shift

Production years

2015-2015

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Original price was $113,498 in 2017Reference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning.Reference

Variants

Maxxum 135standardReference

Maxxum 135MCpremiumReference

Engine

FPT 4.5L 4-cyl dieselReference

Engine (gross)100.7 kWReference

Engine (max)126.0 kWReference

Drawbar (tested)64.7 kWReference

FPTReference

turbocharged air-to-air intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 4Reference

Emission controlselective catalytic reduction with diesel exhaust fluidReference

Rated Power (gross)100.7 kWReference

Maximum Power (gross)126.0 kWReference

Fuel systemelectronic high-pressure common railReference

Cooling systemviscous fanReference

Pre-heatinggrid heaterReference

Pre-heatingblock heaterReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity15.1 LReference

Max power97.7 kWReference

Power at rated engine speed87.8 kWReference

Max power64.7 kWReference

Transmission

16-speed partial power shiftReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

PTO (claimed)82.0 kWReference

PTO (tested)97.7 kWReference

Hydraulic system73.8 LReference

Typeopen centerReference

Typepressure-flow compensatedReference

Capacity73.8 LReference

Rear valves2 to 4Reference

Mid valves0 to 3Reference

Pump flow79.9 lpmReference

Pump flow112.8 lpmReference

SCV flow74.9 lpmReference

Total flow126.8 lpmReference

Total flow159.7 lpmReference

Steering flow46.9 lpmReference

Rear TypeIIReference

Rear TypeIIIN/IIReference

Controlelectronic lower-link draft sensingReference

Rear lift (at 24"/610mm)2812 kgReference

Rear lift (at 24"/610mm)3129 kgReference

Rear Armstelescopic link endsReference

Front HitchoptionalReference

DrawbarCat. 3Reference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Front PTOindependentReference

Clutch1000:1895Reference

Front PTO Type1000 (1.375)Reference

Power at rated PTO speed95.7 kWReference

Capacities

Fuel194.9 LReference

Fuel217.6 LReference

Fuel230.1 LReference

Exhaust fluid (DEF)39.4 LReference

Max capacity8999 kgReference

Dimensions

2WD Wheelbase265 cmReference

4WD Wheelbase264 cmReference

Weight10825 to 11375 poundsReference

Front tire380/85R28Reference

Rear tire460/85R38Reference

Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference

Length446 cmReference

Width248 cmReference

Height (cab)203 cmReference

Front axle4WDReference

Flange rear axleReference

Bar rear axle92 by 2489 mmReference

2WD4910 kgReference

4WD5159 kgReference

Electrical

Charging amps120Reference

Charging amps150Reference

Charging amps200Reference

Battery CCA800Reference

Battery CCA1300Reference

Battery volts12Reference

Battery AH176Reference

Test results

Diesel 16-speed 4WDApril 2016 - May 2016, Link: OCED Tractor Test 2973 fileReference

PTO performanceReference

Fuel use26.1 l/hourReference

Fuel use26.5 l/hourReference

Drawbar performanceReference

Max pull5048 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
