Tractor · 2015Unverified

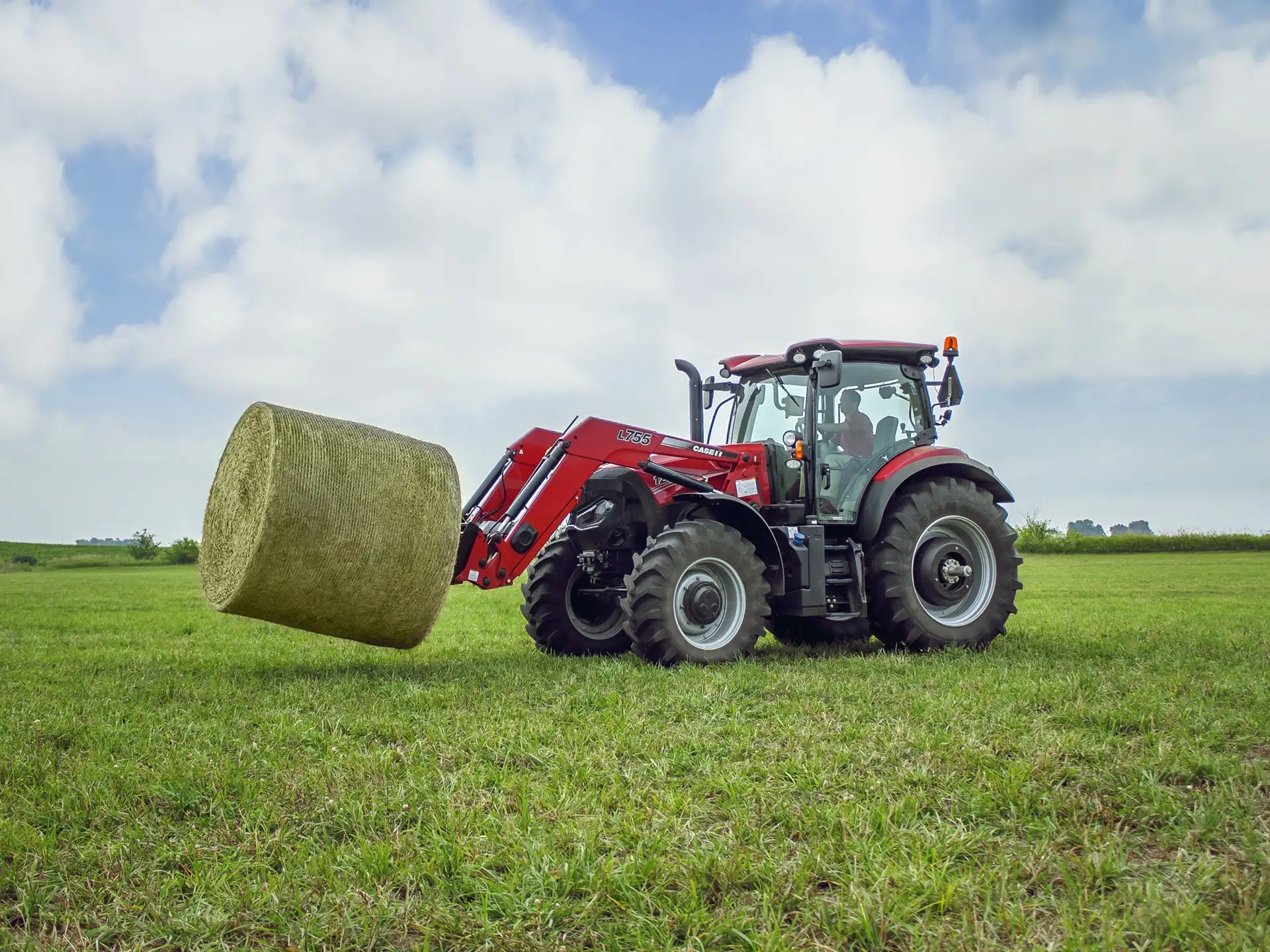

CaseIH Maxxum 135 MultiController
CaseIH Maxxum 135 MultiController — Maxxum Series · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
5125 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Original price$125,650 (2017 Power shift )Reference
Original price$144,234 (2017 CVT )Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Variants
Maxxum 135standardReference
Maxxum 135MCpremiumReference
Engine
FPT 4.5L 4-cyl dieselReference
Engine (gross)100.7 kWReference
Engine (max)126.0 kWReference
FPTReference
turbocharged air-to-air intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction with diesel exhaust fluidReference
Rated Power (gross)100.7 kWReference
Maximum Power (gross)126.0 kWReference
Fuel systemelectronic high-pressure common railReference
Cooling systemviscous fanReference
Pre-heatinggrid heaterReference
Pre-heatingblock heaterReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
Transmission
16-speed partial power shiftReference
continuously-variable transmission (CVT)Reference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Typecontinuously-variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
Hydraulic system73.8 LReference
Typepressure flow compensatedReference
Capacity73.8 LReference
Rear valves3 or 4Reference
Mid valves0 to 3Reference
Pump flow112.8 lpmReference
Pump flow124.9 lpmReference
SCV flow95.0 lpmReference
SCV flow100.3 lpmReference
Total flow160.5 lpmReference
Total flow172.2 lpmReference
Steering flow46.9 lpmReference
Rear TypeIIReference
Rear TypeIIIN/IIReference
Controlelectronic lower-link draft sensingReference
Rear lift (at 24"/610mm)3129 kgReference
Rear lift (at 24"/610mm)3492 kgReference
Rear Armstelescopic link endsReference
Front HitchoptionalReference
DrawbarCat. 3Reference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Clutch1000:1895Reference
Front PTO Type1000 (1.375)Reference
Capacities
Fuel194.9 LReference
Fuel217.6 LReference
Fuel230.1 LReference
Exhaust fluid (DEF)39.4 LReference
Dimensions
Wheelbase264 cmReference
Wheelbase269 cmReference
Weight5125 kgReference
Front tire380/85R28Reference
Rear tire460/85R38Reference
Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference
Length446 cmReference
Length452 cmReference
Width248 cmReference
Height (cab)214 cmReference
Max weight8999 kgReference
Front axle4WDReference
Front axle4WD SuspensionReference
Flange rear axleReference
Bar rear axle92 by 2489 mmReference
Electrical
Charging amps120Reference
Charging amps150Reference
Charging amps200Reference
Battery CCA1300Reference
Battery volts12Reference
Battery AH176Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
