Tractor · 2007Unverified

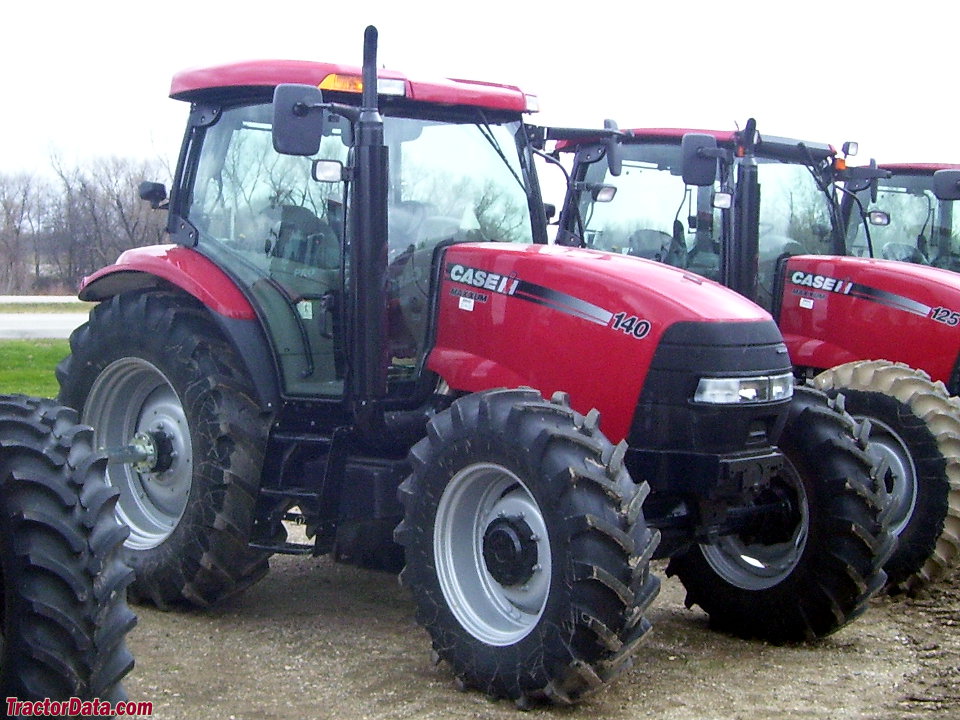

CaseIH Maxxum 140
CaseIH Maxxum 140 — Model year 2007-20112012-2014 · 139 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
139 hp
Max power
104.6 kW
Weight
10912 to 12180 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Original price was $103,363 in 2011Reference
Two- or four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning. Suspended deluxe cab optional. Optional heated seat with air suspension.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank249.8 LReference
Engine (gross)103.7 kWReference
Drawbar (tested)80.1 kWReference
FPT NEF 667Reference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Rated Power (gross)103.7 kWReference
Fuel systemelectronic high pressure common railReference
Cooling systemviscous fanReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2200Reference
Torque612.9 NmReference
Torque RPM1250Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Starter power4.2 kWReference
Max power104.6 kWReference
Power at rated engine speed94.8 kWReference
Max power80.1 kWReference
Transmission
16-speed partial power shiftReference
17-speed partial power shiftReference
TransmissionAutoShiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Four power shift gears in four ranges. Autoshift provides automatic shifting to maintain engine load.Reference
TransmissionEconoReference
Gears17 forward and 16 reverseReference
The Econo transmission provides an overdrive 17th gear for transport speeds.Reference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
PTO (tested)104.6 kWReference
Typeclosed center PFCReference
Valves2 to 4Reference
Pump flow100.3 lpmReference
Total flow140.0 lpmReference
Steering flow39.7 lpmReference
Rear Type2/3NReference
Controlelectronic draft controlReference
Rear lift5527 kgReference
Front HitchIIReference
Front lift3700 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@2120Reference
Front PTOindependentReference
Front PTO Type1000Reference
Power at rated PTO speed100.4 kWReference
Dimensions
Wheelbase265 cmReference
Weight10912 to 12180 poundsReference
Front tire11.00-16Reference
Rear tire18.4R38 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 18.4R38 (2WD)Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38 (4WD)Reference
Length453 cmReference
Width191 cmReference
Height (cab)289 cmReference
Shipping weight4949 kgReference
Operating weight5524 kgReference
Rear axle2489 mmReference
Front tread160 to 218 cmReference
CaseIH Maxxum 140 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
Attachment overview
CaseIH L760 loaderReference
CaseIH L750 loaderReference
The model L760 loader it fitted to the Maxxum 140 Pro while the L750 fits the base model. Both loaders are available with optional mechanical self-leveling.Reference
Test results
Diesel 16-speed 4WDJanuary 2008 - May 2008, Link: OCED Tractor Test 2448 fileReference
PTO performanceReference
Fuel use30.7 l/hourReference
Fuel use29.1 l/hourReference
Fuel use30.3 l/hourReference
Drawbar performanceReference
Fuel use29.5 l/hourReference
Gear 9 used for power test.Reference
Max pull5384 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
