Tractor · 2015Unverified

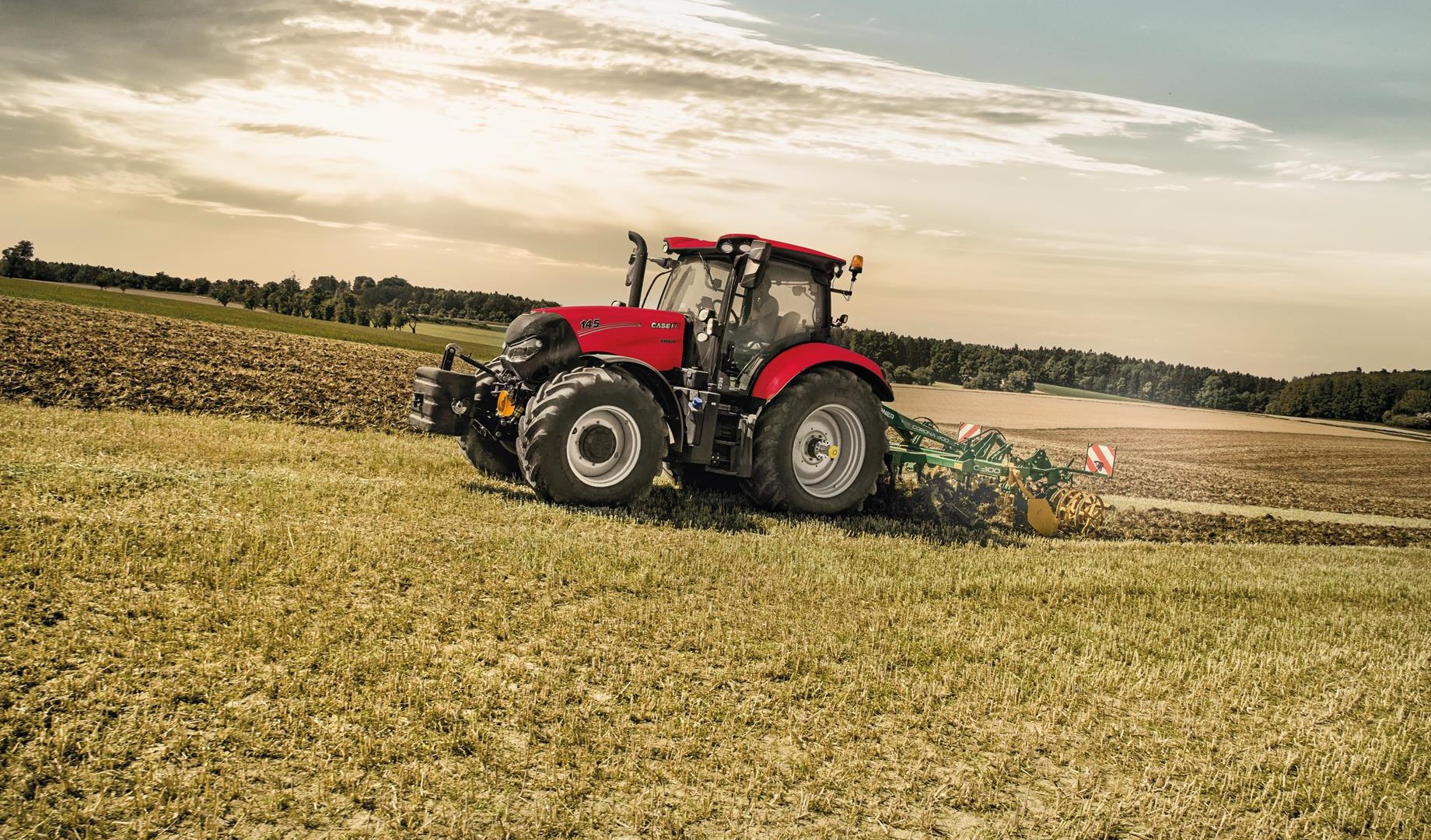

CaseIH Maxxum 145 MultiController

Name: CaseIH Maxxum 145 MultiController
Brand: CaseIH

CaseIH Maxxum 145 MultiController — Maxxum Series · 145 hp. Reference specifications; pending source verification.

The CaseIH Maxxum 145 MultiController is a 145 hp tractor, categorising it among the higher-powered machines in its class. It was manufactured in 2015. The tractor is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives the four-wheel drive system via a continuously variable transmission. Its listed weight is 5670 kg, and it is suited to tractors covering areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

145 hp

Max power

101.1 kW

Weight

5670 kg

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

145 hp

Recorded weight

5670 kg

Transmissions

16-speed partial power shift

Production years

2015-2015

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Original price$131,758 (2017 Power shift )Reference

Original price$150,446 (2017 CVT )Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning.Reference

Variants

Maxxum 145standardReference

Maxxum 145MCpremiumReference

Engine

FPT 4.5L 4-cyl dieselReference

Engine (gross)108.1 kWReference

Engine (max)130.5 kWReference

Drawbar (tested)65.9 kWReference

FPTReference

turbocharged air-to-air intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 4Reference

Emission controlselective catalytic reduction with diesel exhaust fluidReference

Rated Power (gross)108.1 kWReference

Maximum Power (gross)130.5 kWReference

Fuel systemelectronic high-pressure common railReference

Cooling systemviscous fanReference

Pre-heatinggrid heaterReference

Pre-heatingblock heaterReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity15.1 LReference

Max power101.1 kWReference

Power at rated engine speed90.9 kWReference

Max power65.9 kWReference

Transmission

16-speed partial power shiftReference

continuously-variable transmission (CVT)Reference

Typepartial power shiftReference

Gears16 forward and reverseReference

Clutchhydraulic wet discReference

Typecontinuously-variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)89.5 kWReference

PTO (tested)101.1 kWReference

Hydraulic system73.8 LReference

Typepressure flow compensatedReference

Capacity73.8 LReference

Rear valves3 or 4Reference

Mid valves0 to 3Reference

Pump flow112.8 lpmReference

Pump flow124.9 lpmReference

SCV flow95.0 lpmReference

SCV flow100.3 lpmReference

Total flow160.5 lpmReference

Total flow172.2 lpmReference

Steering flow46.9 lpmReference

Rear TypeIIReference

Rear TypeIIIN/IIReference

Controlelectronic lower-link draft sensingReference

Rear lift (at 24"/610mm)3129 kgReference

Rear lift (at 24"/610mm)3492 kgReference

Rear Armstelescopic link endsReference

Front HitchoptionalReference

DrawbarCat. 3Reference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Front PTOindependentReference

Clutch1000:1895Reference

Front PTO Type1000 (1.375)Reference

Power at rated PTO speed98.5 kWReference

Capacities

Fuel194.9 LReference

Fuel217.6 LReference

Fuel230.1 LReference

Exhaust fluid (DEF)39.4 LReference

Dimensions

Wheelbase264 cmReference

Wheelbase269 cmReference

Weight5670 kgReference

Front tire380/85R28Reference

Rear tire460/85R38Reference

Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference

Length446 cmReference

Length452 cmReference

Width248 cmReference

Height (cab)214 cmReference

Max weight8999 kgReference

Front axle4WDReference

Front axle4WD SuspensionReference

Flange rear axleReference

Bar rear axle92 by 2489 mmReference

Electrical

Charging amps120Reference

Charging amps150Reference

Charging amps200Reference

Battery CCA1300Reference

Battery volts12Reference

Battery AH176Reference

Test results

CVT 4WDMarch 2016 - April 2016, Link: OCED Tractor Test 2967 fileReference

PTO performanceReference

Fuel use28.4 l/hourReference

Drawbar performanceReference

Fuel use28.0 l/hourReference

Pull at 9 KPHReference

Max pull5261 kgReference

Pull at 3 KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
