Tractor · 2015Unverified

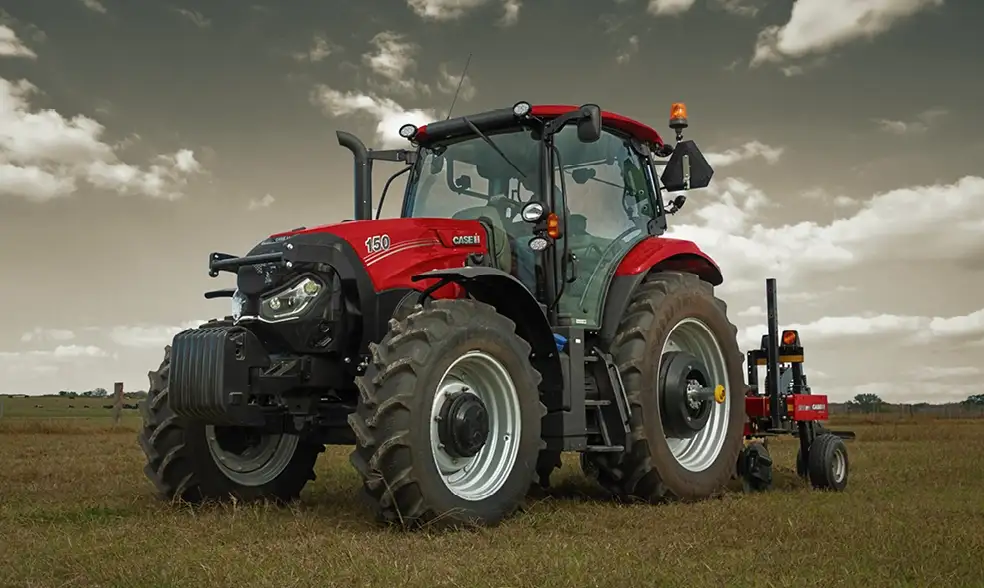

CaseIH Maxxum 150
CaseIH Maxxum 150 — Maxxum Series · 145 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Max power
105.8 kW
Weight
12280 to 12831 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Original price was $124,679 in 2017Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Variants
Maxxum 150standardReference
Maxxum 150MCpremiumReference
Engine
FPT 6.7L 6-cyl dieselReference
Engine (gross)108.1 kWReference
Engine (max)130.5 kWReference
Drawbar (tested)72.4 kWReference
FPTReference
turbocharged air-to-air intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction with diesel exhaust fluidReference
Rated Power (gross)108.1 kWReference
Maximum Power (gross)130.5 kWReference
Fuel systemelectronic high-pressure common railReference
Cooling systemviscous fanReference
Pre-heatinggrid heaterReference
Pre-heatingblock heaterReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
Max power105.8 kWReference
Power at rated engine speed94.1 kWReference
Max power72.4 kWReference
Transmission
16-speed partial power shiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)93.2 kWReference
PTO (tested)105.8 kWReference
Hydraulic system73.8 LReference
Typeopen centerReference
Typepressure-flow compensatedReference
Capacity73.8 LReference
Rear valves2 to 4Reference
Mid valves0 to 3Reference
Pump flow79.9 lpmReference
Pump flow112.8 lpmReference
SCV flow74.9 lpmReference
Total flow126.8 lpmReference
Total flow159.7 lpmReference
Steering flow46.9 lpmReference
Rear TypeIIReference
Rear TypeIIIN/IIReference
Controlelectronic lower-link draft sensingReference
Rear lift (at 24"/610mm)2812 kgReference
Rear lift (at 24"/610mm)3129 kgReference
Rear Armstelescopic link endsReference
Front HitchoptionalReference
DrawbarCat. 3Reference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Clutch1000:1895Reference
Front PTO Type1000 (1.375)Reference
Power at rated PTO speed104.5 kWReference
Capacities
Fuel194.9 LReference
Fuel217.6 LReference
Fuel230.1 LReference
Exhaust fluid (DEF)39.4 LReference
Max capacity8999 kgReference
Dimensions
2WD Wheelbase265 cmReference
4WD Wheelbase264 cmReference
Weight12280 to 12831 poundsReference
Front tire380/85R28Reference
Rear tire460/85R38Reference
Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference
Length446 cmReference
Width248 cmReference
Height (cab)203 cmReference
Front axle4WDReference
Flange rear axleReference
Bar rear axle92 by 2489 mmReference
2WD5570 kgReference
4WD5820 kgReference
Electrical
Charging amps120Reference
Charging amps150Reference
Charging amps200Reference
Battery CCA800Reference
Battery CCA1300Reference
Battery volts12Reference
Battery AH176Reference
Test results
Diesel 16-speed 4WDApril 2016 - May 2016, Link: OCED Tractor Test 2974 fileReference
PTO performanceReference
Fuel use28.8 l/hourReference
Fuel use27.3 l/hourReference
Fuel use28.4 l/hourReference
Drawbar performanceReference
Fuel use26.5 l/hourReference
Max pull4526 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
