Tractor · 1998Unverified

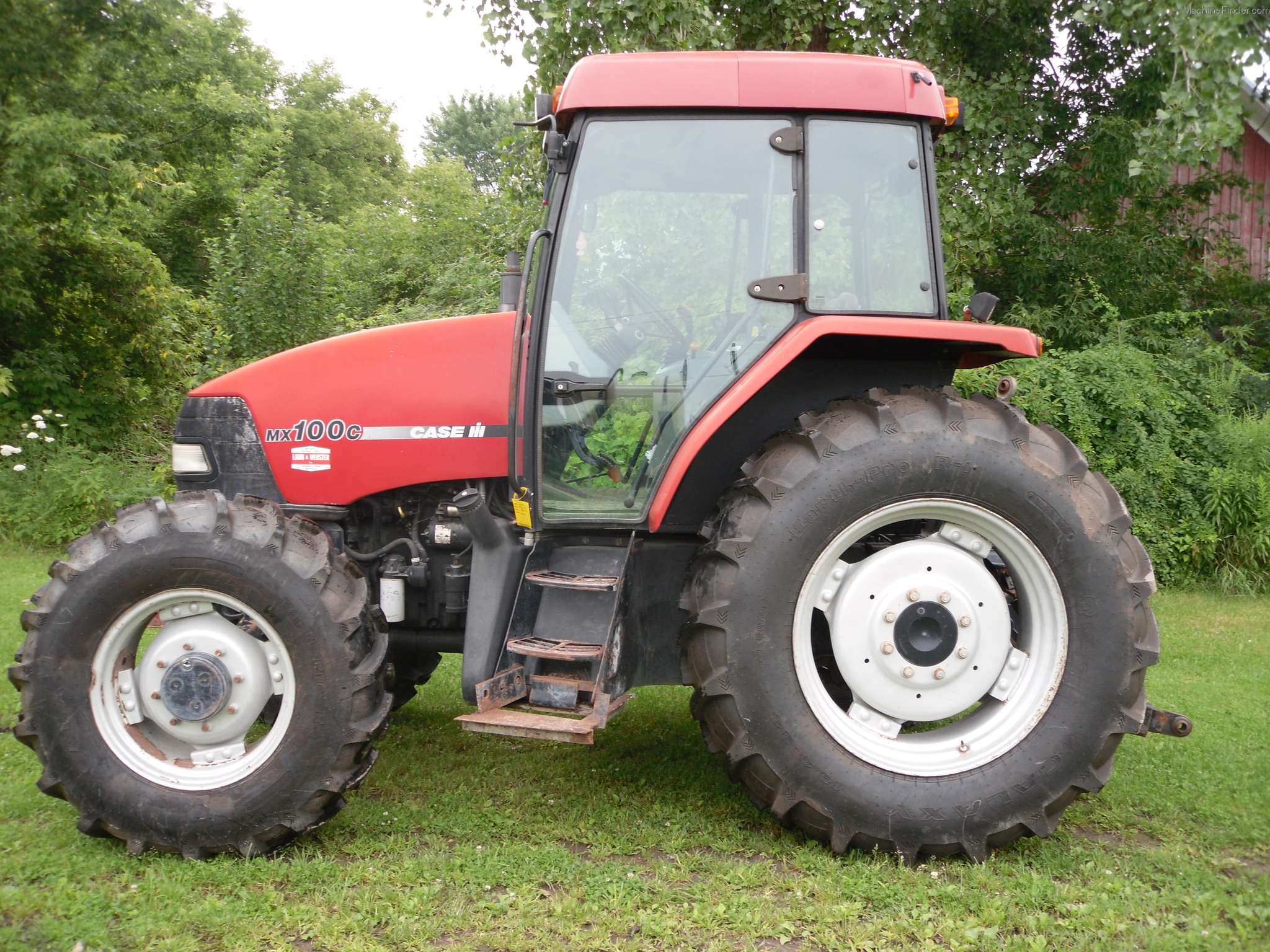

CaseIH MX100C
CaseIH MX100C — MXC Series · 83 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
83 hp
Weight
4750 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price was $51,000 in 1999Reference
Four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard.Reference
Variants
MC100similar McCormick Intl modelReference
Engine
Perkins 4.0L 4-cyl dieselReference
Engine74.6 kWReference
Perkins 1004-4TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Power74.6 kWReference
Fuel systemdirect-injection with mechanical governor, rotary injection pump with 5-hole nozzlesReference
Air cleanerdual paper elementsReference
Compression17.25:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity8.8 LReference
Coolant capacity15.7 LReference
Transmission
16-speed partial power shiftReference
32-speed creeperReference
Typepartial power shiftReference
Gears16 forward and 12 reverseReference
Clutchhydraulic wet discsReference
Four power shift speeds (1-4) in four synchronized ranges (I-IV) with power shuttle. Three ranges in reverse.Reference
TypecreeperReference
Gears32 forward and 24 reverseReference
PTO & Hydraulics
PTO (claimed)61.9 kWReference
Hydraulic system66.2 LReference
Typeclosed center pressure-flow compensating (PFC)Reference
Capacity66.2 LReference
Pressure203.4 barReference
Valves2 to 4Reference
Pump flow94.6 lpmReference
Total flow109.4 lpmReference
Rear TypeIIReference
Controlelectronic lower linkReference
Rear lift (at 24"/610mm)3807 kgReference
Rear PTOindependentReference
Clutchelectrically-actuated wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1875Reference
Engine RPM1000@2210Reference
Capacities
Fuel189.2 LReference
Dimensions
Wheelbase242 cmReference
Weight4750 kgReference
Front tire14.9R-24Reference
Rear tire18.4R-34Reference
Ag front14.9R-24Reference
Ag rear18.4R-34Reference
Length433 cmReference
Height (cab)280 cmReference
Shipping weight4750 kgReference
MX100C Serial Numbers
Location:Serial plate on front-left corner cab postReference
1998JJE1050021Reference
1999JJE1052034Reference
2000JJE1053772Reference
2001JJE1055506Reference
2002JJE1056230Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Charging volts12Reference
Batteries2Reference
Battery CCA700Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
