Tractor · 1997Unverified

CaseIH MX120 Maxxum

Name: CaseIH MX120 Maxxum
Brand: CaseIH

CaseIH MX120 Maxxum — Maxxum Series · 105 hp. Reference specifications; pending source verification.

The CaseIH MX120 Maxxum is a tractor with a rated power output of 105 horsepower, a mid-range figure for its class. It was manufactured from 1997 to 2002. It features a 6-cylinder turbocharged diesel liquid-cooled engine paired with four-wheel drive and a powershift transmission. Its operational weight is between 11300 and 12460 pounds, and it is suited to operations of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

105 hp

Weight

11300 to 12460 pounds

Catalogue coverage

Variants represented

Richest spec table

88 rows

Recorded power

105 hp

Recorded weight

5125 kg

Transmissions

16-speed synchromesh

Production years

1997-2002

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

FactoriesRacine, Wisconsin, USAReference

FactoriesDoncaster, EnglandReference

Original price was $49,000 in 1999Reference

Two- or four-wheel driveReference

Differential lockelectrically-actuated wet discReference

Power steeringReference

Wet disc brakesReference

Cab standard. Two-post folding ROPS available.Reference

Engine

CDC 5.9L 6-cyl dieselReference

Engine89.5 kWReference

CDCReference

turbocharged dieselReference

6-cylinder 12-valveReference

liquid-cooled inlineReference

Displacement5.9 LReference

Bore/Stroke102 x 120 mmReference

Power89.5 kWReference

Fuel systemdirect injection with mechanical governor, Bosch in-line A pump with Bosch 5-hole injectorsReference

Air cleanerdual-element dryReference

Compression17.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity15.0 LReference

ROPS Coolant capacity18.5 LReference

Cab Coolant capacity19.9 LReference

Transmission

16-speed synchromeshReference

16-speed partial power shiftReference

32-speed creeperReference

TypesynchromeshReference

Gears16 forward and 12 reverseReference

Clutchwet discReference

Four gears in four ranges. Three reverse ranges. Ranges and gears fully synchronized.Reference

Typepartial power shiftReference

Four power shift gears in four synchronized ranges. Three ranges in reverse.Reference

TypecreeperReference

Gears32 forward and 24 reverseReference

PTO & Hydraulics

PTO (claimed)78.3 kWReference

Hydraulic system66.2 LReference

Typeclosed center pressure flow compensated (PFC)Reference

Capacity66.2 LReference

Pressure203.4 barReference

Valves2 to 4Reference

Pump flow94.6 lpmReference

Total flow109.4 lpmReference

Rear TypeII/IIINReference

Controlelectronic lower linkReference

Rear lift (at 24"/610mm)3807 kgReference

Rear lift (at 24"/610mm)4407 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Capacities

Fuel272.5 LReference

Dimensions

2WD Wheelbase281 cmReference

4WD Wheelbase270 cmReference

Weight11300 to 12460 poundsReference

Front tire11.00-16Reference

Rear tire18.4R-38Reference

Ag front11.00-16Reference

Ag rear18.4R-38Reference

Length502 cmReference

Height (cab)291 cmReference

2WD Cab Shipping weight5125 kgReference

4WD Cab Shipping weight5651 kgReference

2WD Clearance (front axle)60 cmReference

4WD Clearance (front axle)62 cmReference

Rear axle88 by 2438 mmReference

Rear axle88 by 2844 mmReference

Front tread152 to 223 cmReference

Rear tread152 to 223 cmReference

CaseIH MX120 attachments

front-end loaderReference

MX120 Serial Numbers

Location:On inside of cab post near left door.Reference

1997JJA0075300Reference

1998JJA0083000Reference

1999JJA0097438Reference

2000JJA0103445Reference

2001JJA0108300Reference

2002JJA0115301Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps65Reference

Cab Charging amps95Reference

Charging volts12Reference

Batteries2Reference

Battery CCA900Reference

Battery volts12Reference

Attachment overview

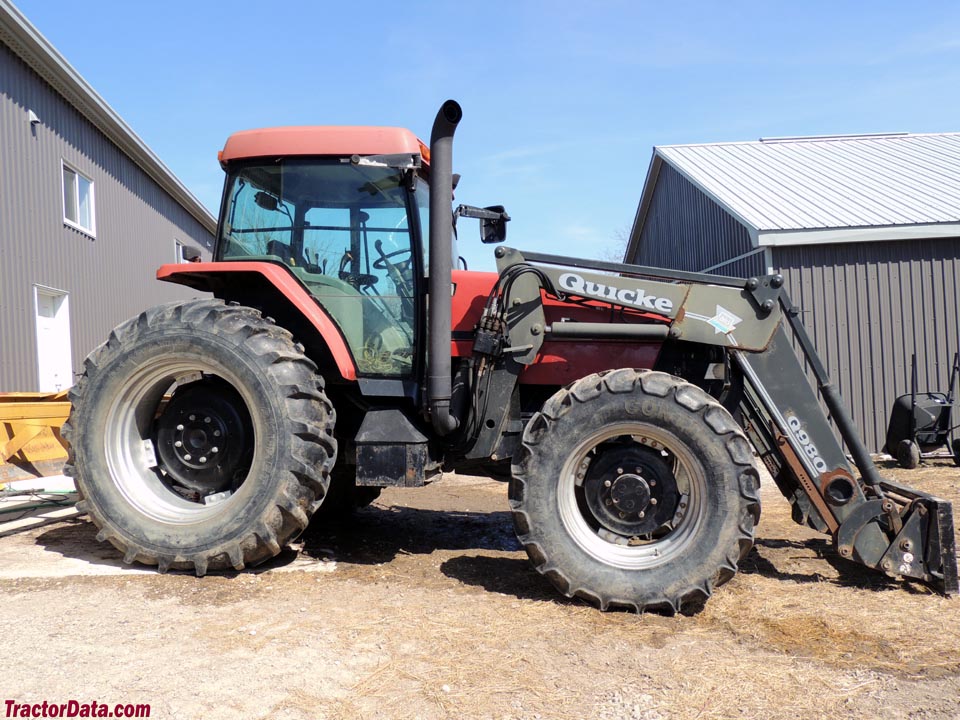

Case IH L300 (76mm cyl) loaderReference

CaseIH L300 (89mm cyl) loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
