Tractor · 1997Unverified

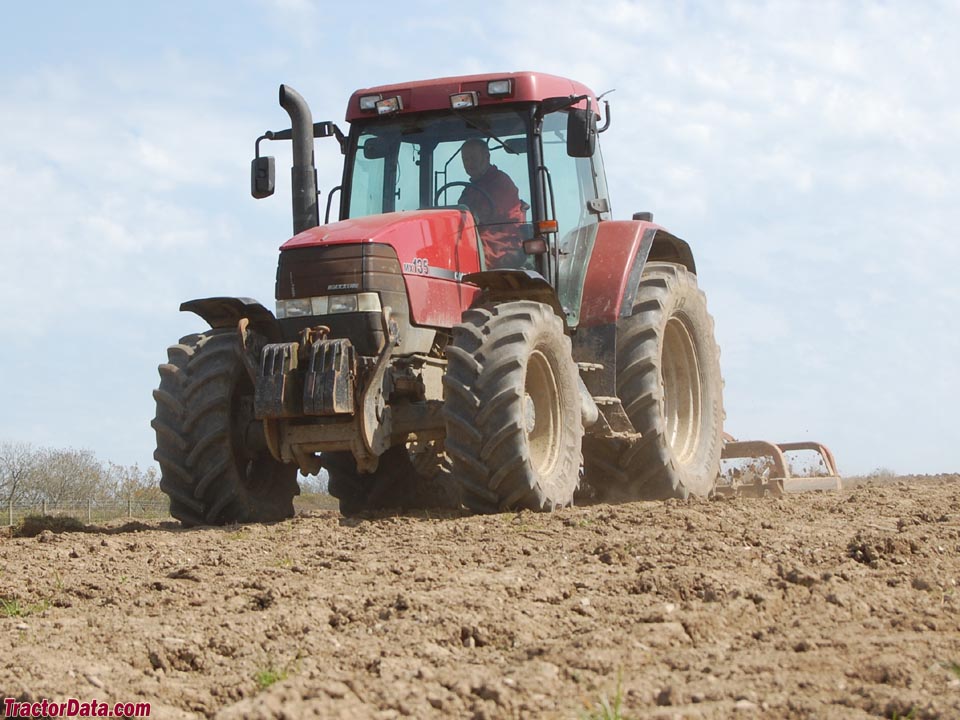

CaseIH MX135 Maxxum
CaseIH MX135 Maxxum — Maxxum Series · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
11300 to 12460 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
FactoriesRacine, Wisconsin, USAReference
FactoriesDoncaster, EnglandReference
Original price was $59,000 in 1999Reference
Two- or four-wheel driveReference
Differential lockelectrically-actuated wet discReference
Power steeringReference
Wet disc brakesReference
Cab standard. Two-post folding ROPS available.Reference
Engine
CDC 5.9L 6-cyl dieselReference
Engine100.7 kWReference
CDCReference
turbocharged dieselReference
6-cylinder 12-valveReference
liquid-cooled inlineReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Power100.7 kWReference
Fuel systemdirect injection with mechanical governor, Bosch in-line A pump with Bosch 5-hole injectorsReference
Air cleanerdual-element dryReference
Compression17.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity15.0 LReference
Coolant capacity18.5 LReference
Coolant capacity19.9 LReference
Transmission
16-speed partial power shiftReference
32-speed creeperReference
Typepartial power shiftReference
Gears16 forward and 12 reverseReference
Clutchwet discReference
Four power shift gears in four synchronized ranges. Three ranges in reverse.Reference
TypecreeperReference
Gears32 forward and 24 reverseReference
PTO & Hydraulics
PTO (claimed)85.8 kWReference
Hydraulic system66.2 LReference
Typeclosed center pressure flow compensated (PFC)Reference
Capacity66.2 LReference
Pressure203.4 barReference
Valves2 to 4Reference
Pump flow94.6 lpmReference
Total flow109.4 lpmReference
Rear TypeII/IIINReference
Controlelectronic lower linkReference
ROPS Rear lift (at 24"/610mm)3802 kgReference
Cab Rear lift (at 24"/610mm)4407 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel272.5 LReference
Dimensions
2WD Wheelbase281 cmReference
4WD Wheelbase270 cmReference
Weight11300 to 12460 poundsReference
Front tire11.00-16Reference
Rear tire18.4R-38 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 18.4R-38 (2WD)Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R-38 (4WD)Reference
Length502 cmReference
Height (cab)291 cmReference
2WD cab Shipping weight5125 kgReference
4WD cab Shipping weight5651 kgReference
2WD Clearance (front axle)60 cmReference
4WD Clearance (front axle)62 cmReference
Rear axle88 by 2844 mmReference
Front tread152 to 223 cmReference
Rear tread152 to 223 cmReference
CaseIH MX135 attachments
front-end loaderReference
MX135 Serial Numbers
Location:On inside of cab post near left door.Reference
1997JJA0075300Reference
1998JJA0083000Reference
1999JJA0097438Reference
2000JJA0103445Reference
2001JJA0108300Reference
2002JJA0115301Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps65Reference
Cab Charging amps95Reference
Charging volts12Reference
Batteries2Reference
Battery CCA900Reference
Battery volts12Reference
Attachment overview
CaseIH L300 (76mm cyl) loaderReference
CaseIH L300 (89mm cyl) loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
