Tractor · 1998Unverified

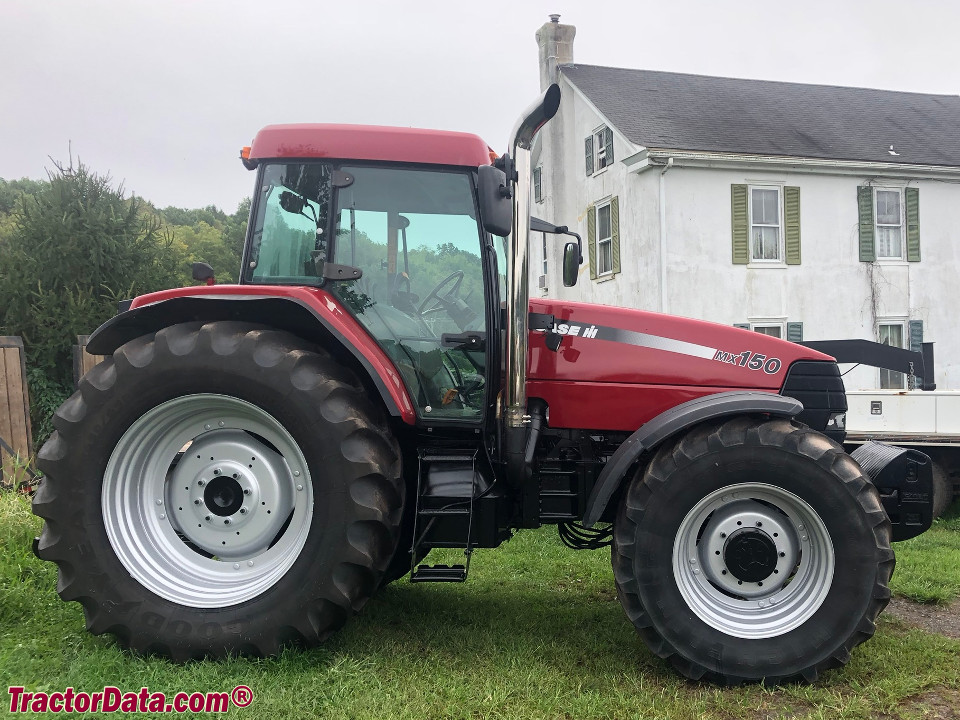

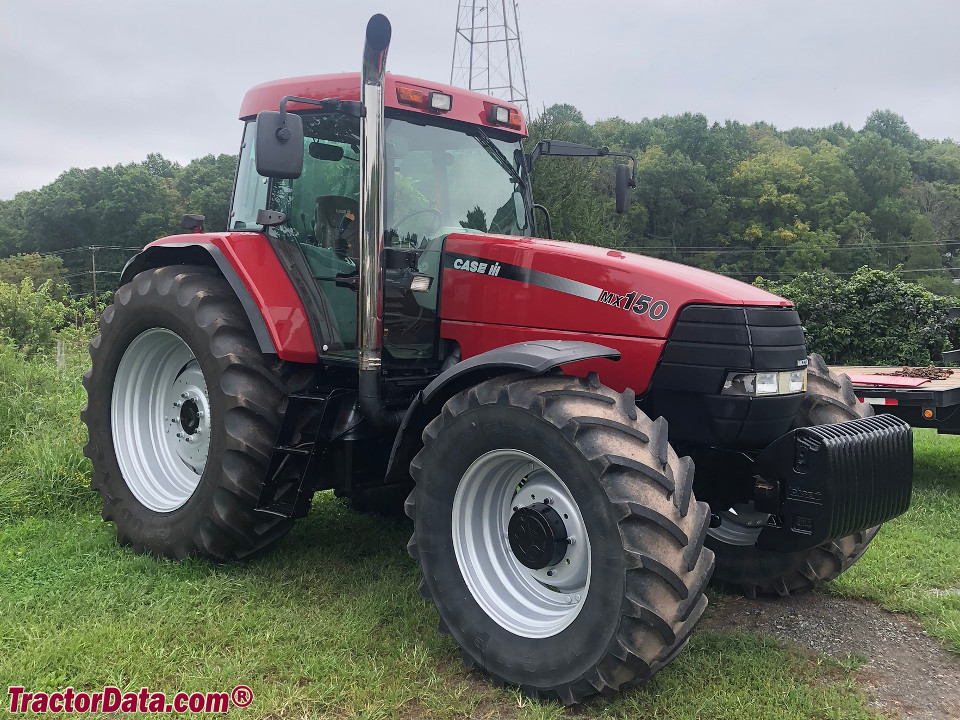

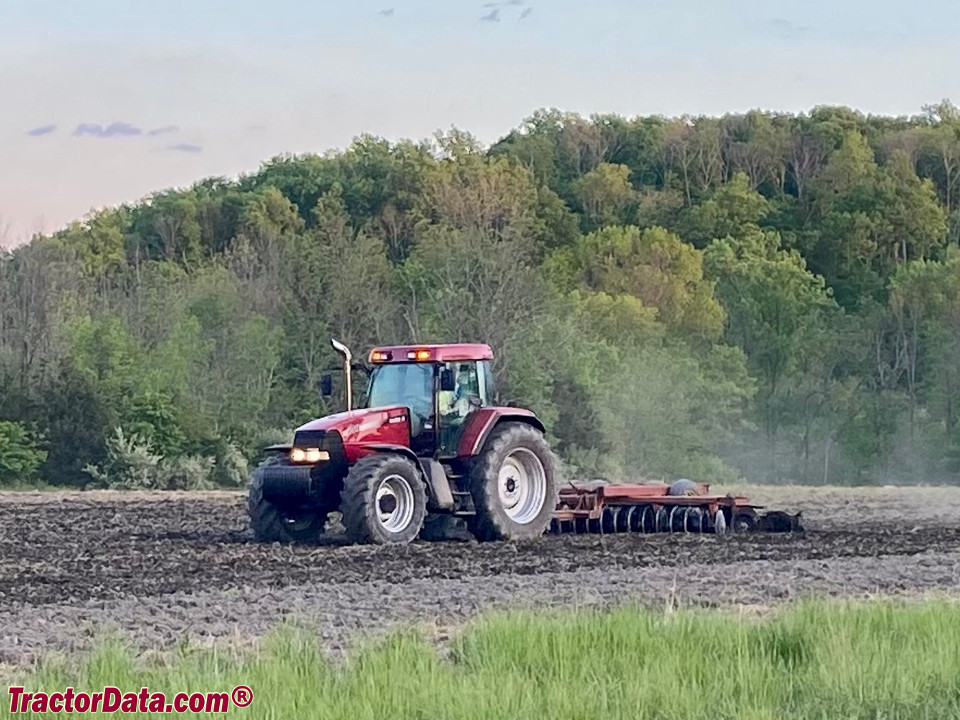

CaseIH MX150 Maxxum
CaseIH MX150 Maxxum — Maxxum Series · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
6350 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Original price was $76,000 in 1999Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
CDC 5.9L 6-cyl dieselReference
CDCReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Fuel systemdirect injection with mechanical governor, Bosch in-line A pump with Bosch 5-hole injectorsReference
Air cleanerdual-element dryReference
Compression17.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity15.0 LReference
Coolant capacity19.9 LReference
Transmission
16-speed partial power shiftReference
32-speed creeperReference
Typepartial power shiftReference
Gears16 forward and 12 reverseReference
Clutchwet discReference
Four power shift gears in four synchronized ranges. Three ranges in reverse.Reference
TypecreeperReference
Gears32 forward and 24 reverseReference
PTO & Hydraulics
PTO (claimed)96.9 kWReference
Hydraulic system96.5 LReference
Typeclosed center pressure-flow compensated (PFC)Reference
Capacity96.5 LReference
Pressure203.4 barReference
Valves2 to 4Reference
Pump flow106.0 lpmReference
Total flow119.6 lpmReference

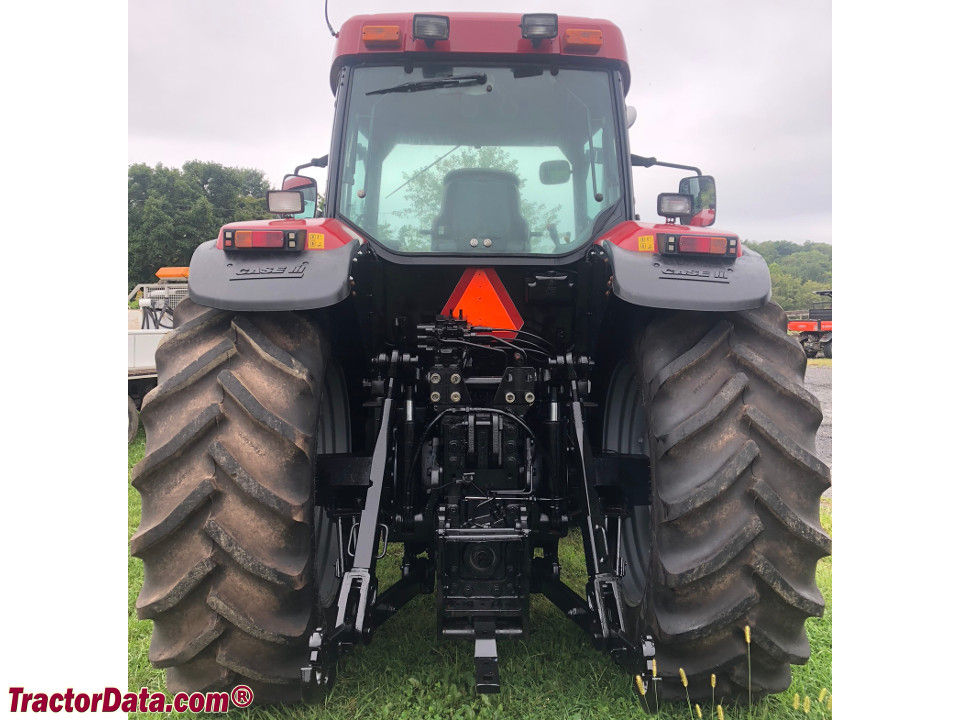

Rear TypeII/III/IIINReference
Controlelectronic lower linkReference
Rear lift (at 24"/610mm)6684 kgReference
Rear PTOindependentReference
Clutchelectrically-actuated wet discReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel348.2 LReference
Dimensions
2WD Wheelbase284 cmReference
4WD Wheelbase296 cmReference
Weight6350 kgReference
Front tire11.00-16Reference
Rear tire18.4R-38Reference
Ag front11.00-16Reference
Ag rear18.4R-38Reference
Length524 cmReference
Height (cab)291 cmReference
Rear axle88 by 2870 mmReference
Front tread152 to 223 cmReference
Rear tread152 to 223 cmReference
MX150 Serial Numbers
1998JJA0083000Reference
1999JJA0097438Reference
2000JJA0103445Reference
2001JJA0108300Reference
2002JJA0115301Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Charging volts12Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
