Tractor · 1998Unverified

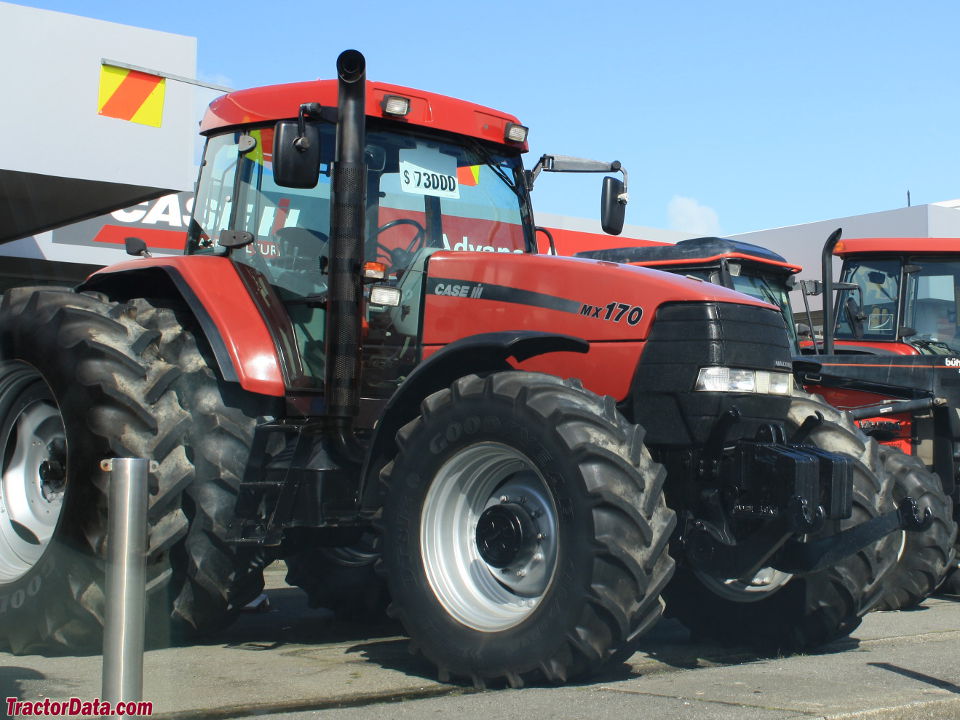

CaseIH MX170 Maxxum

Name: CaseIH MX170 Maxxum
Brand: CaseIH

CaseIH MX170 Maxxum — Maxxum Series · 145 hp. Reference specifications; pending source verification.

The CaseIH MX170 Maxxum is a high-powered tractor model, with a rating of 145 hp, positioning it among the more powerful machines in its class. The MX170 Maxxum was produced from 1998 to 2002. It features a 6-cylinder turbocharged diesel liquid-cooled engine, which transmits power to four-wheel drive through a powershift transmission. The listed weight of the tractor is 6395 kg, making it suitable for tasks involving areas of around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

145 hp

Weight

6395 kg

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

145 hp

Recorded weight

6395 kg

Transmissions

16-speed partial power shift

Production years

1998-2002

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Original price was $82,100 in 1999Reference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Engine

CDC 5.9L 6-cyl dieselReference

CDCReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke102 x 120 mmReference

Fuel systemdirect injection with mechanical governor, Bosch in-line A pump with Bosch 5-hole injectorsReference

Air cleanerdual-element dryReference

Compression17.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity15.0 LReference

Coolant capacity19.9 LReference

Transmission

16-speed partial power shiftReference

32-speed creeperReference

Typepartial power shiftReference

Gears16 forward and 12 reverseReference

Clutchwet discReference

Four power shift gears in four synchronized ranges. Three ranges in reverse.Reference

TypecreeperReference

Gears32 forward and 24 reverseReference

PTO & Hydraulics

PTO (claimed)108.1 kWReference

Hydraulic system96.5 LReference

Typeclosed center pressure-flow compensated (PFC)Reference

Capacity96.5 LReference

Pressure203.4 barReference

Valves2 to 4Reference

Pump flow106.0 lpmReference

Total flow119.6 lpmReference

Rear TypeII/III/IIINReference

Controlelectronic lower linkReference

Rear lift (at 24"/610mm)6684 kgReference

Rear PTOindependentReference

Clutchelectrically-actuated wet discReference

Rear PTO Type540/1000 (1.375)Reference

Capacities

Fuel348.2 LReference

Dimensions

2WD Wheelbase284 cmReference

4WD Wheelbase296 cmReference

Weight6395 kgReference

Front tire11.00-16Reference

Rear tire18.4R-38Reference

Ag front11.00-16Reference

Ag rear18.4R-38Reference

Length524 cmReference

Height (cab)291 cmReference

Rear axle101 by 2870 mmReference

Rear axle101 by 3022 mmReference

Front tread152 to 223 cmReference

Rear tread152 to 223 cmReference

MX170 Serial Numbers

1998JJA0083000Reference

1999JJA0097438Reference

2000JJA0103445Reference

2001JJA0108300Reference

2002JJA0115301Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps95Reference

Charging volts12Reference

Batteries2Reference

Battery CCA950Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
