Tractor · 1999Unverified

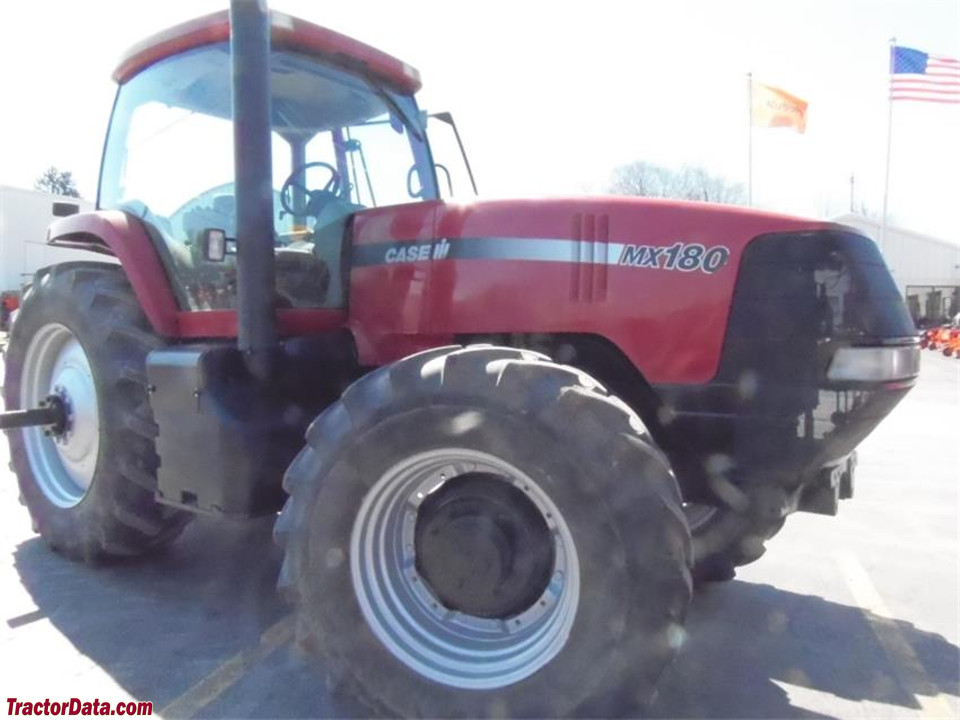

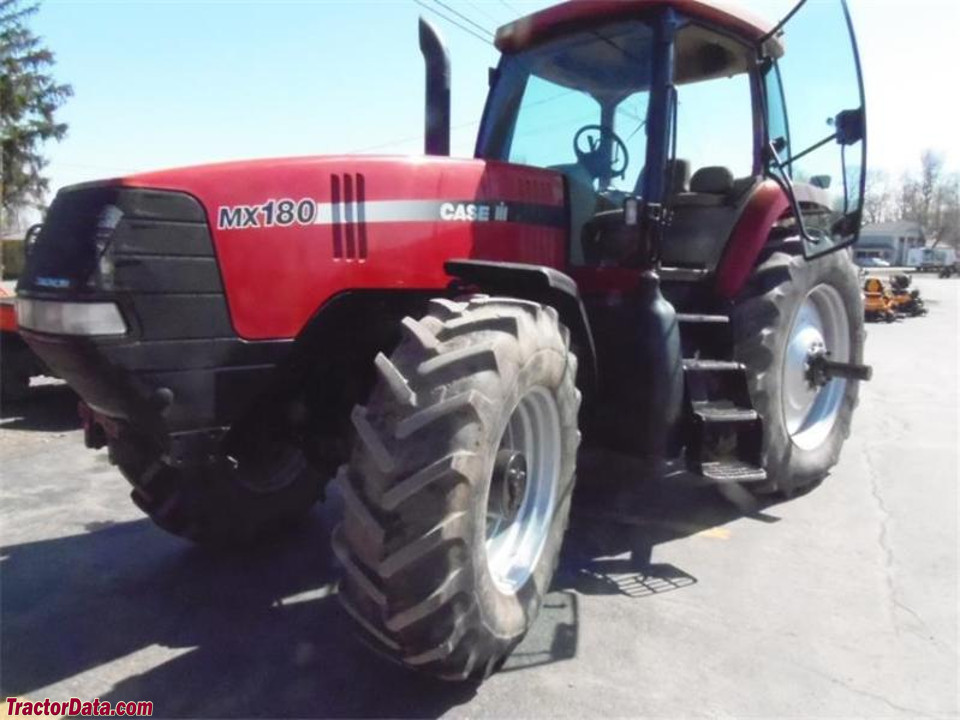

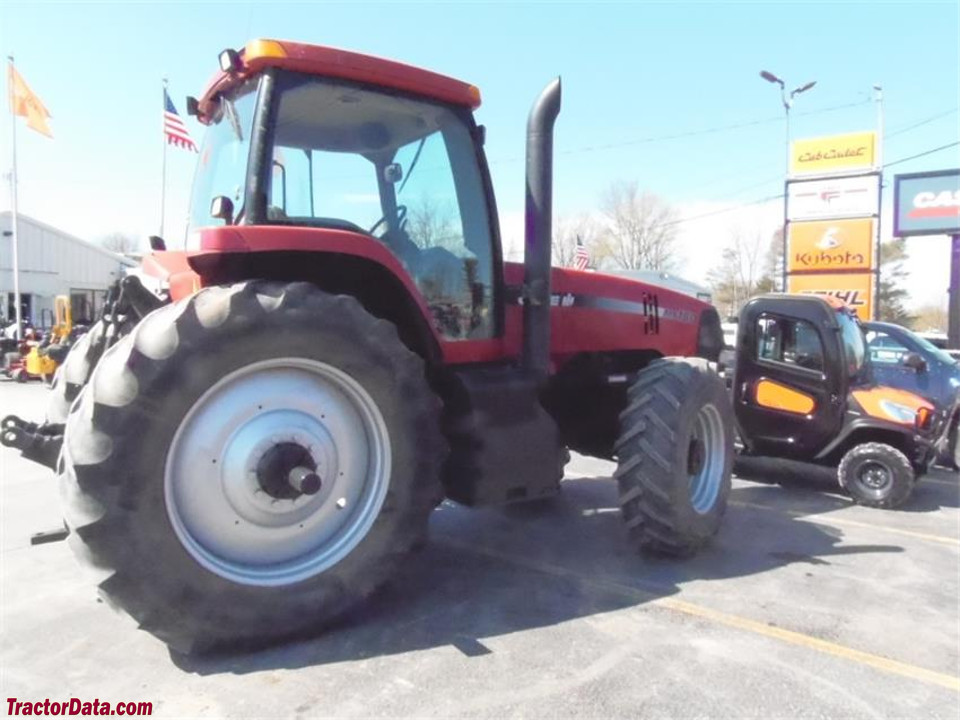

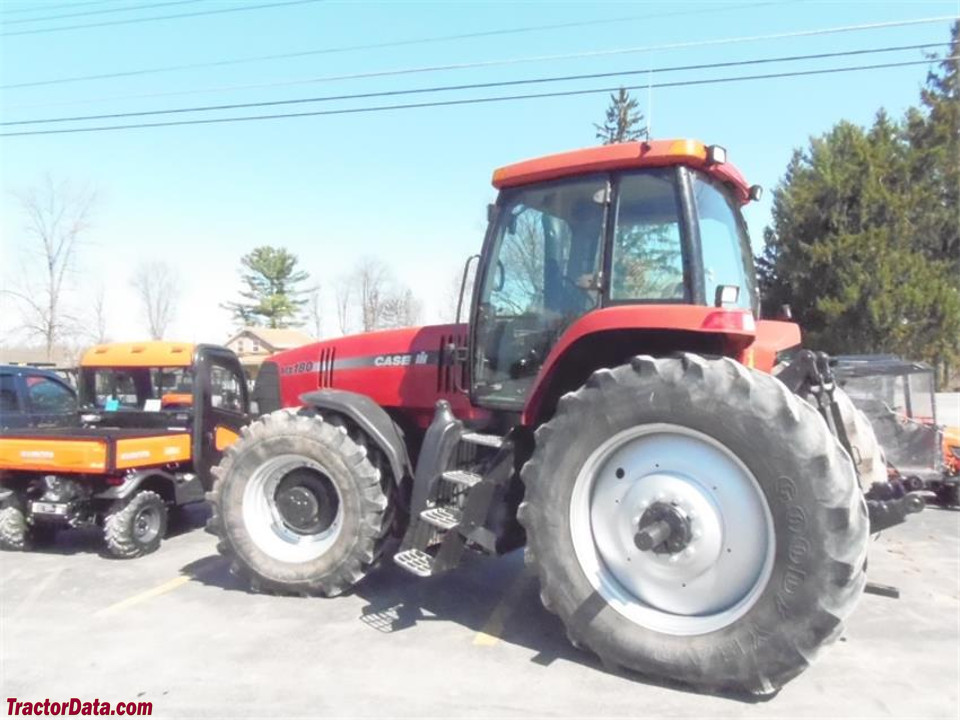

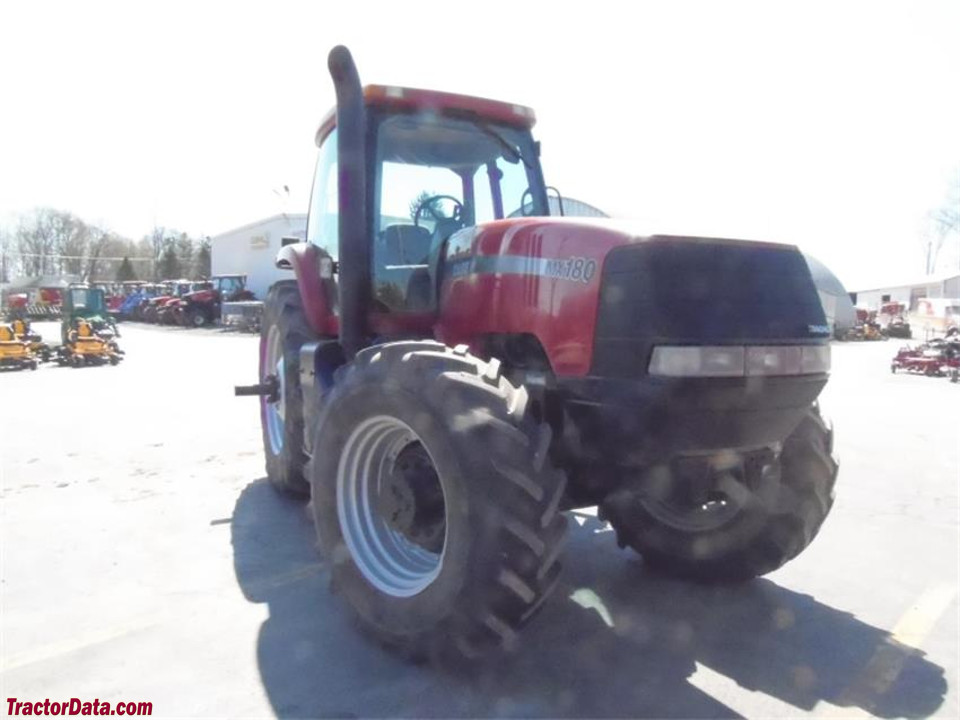

CaseIH MX180 Magnum
CaseIH MX180 Magnum — Magnum Series · 147 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
147 hp
Max power
131.0 kW
Weight
17700 to 19220 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price$87,000Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Surveyor Cab standard with air-conditioning.Reference
Engine
CDC 8.3L 6-cyl dieselReference
Drawbar (tested)93.1 kWReference
CDCReference
turbocharged dieselReference
6-cylinder 12-valveReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Fuel systemmechanical direct injectionReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2000Reference
Idle RPM900-2240Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity22.7 LReference
Oil capacity20.8 LReference
Oil change300 hReference
Max power131.0 kWReference
Power at rated engine speed109.3 kWReference
Max power93.1 kWReference
Transmission
18-speed full power shiftReference
24-speed creeperReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
Clutchelectro-hydraulic wet discsReference
Push-button power shift with left-hand power shuttle.Reference
TypecreeperReference
Gears24 forward and 6 reverseReference
Optional creeper range engaged with button on the console. Tractor must be in neutral or park to change range.Reference
PTO & Hydraulics
PTO (claimed)108.1 kWReference
PTO (tested)131.0 kWReference
Hydraulic system172.2 LReference
Typeclosed center PFCReference
Capacity172.2 LReference
Pressure172.4 barReference
Valves2 to 5Reference
Pump flow113.6 lpmReference
Pump flow166.5 lpmReference
SCV flow102.2 lpmReference
SCV flow151.4 lpmReference
Rear TypeIII/IIINReference
Controlposition and draft controlReference
Rear lift5080 kgReference
Front HitchIIReference
Front lift (at 24"/610mm)2494 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1982Reference
Engine RPM1000@1974Reference
Power at rated PTO speed112.6 kWReference
Capacities
Fuel492.1 LReference
Fuel605.6 LReference
Max capacity9525 kgReference
Dimensions
2WD Wheelbase302 cmReference
4WD Wheelbase300 cmReference
Weight17700 to 19220 poundsReference
Front tire14L-16.1Reference
2WD Rear tire18.4R42Reference
2WD Standard tires (ag)Front: 14L-16.1. Rear: 18.4R42Reference
4WD Standard tires (ag)Front: 14.9R30. Rear: 18.4R42Reference
Length567 cmReference
Height (cab)311 cmReference
Ground clearance40 cmReference
Bar rear axle101 by 2438 mmReference
Bar rear axle101 by 2844 mmReference
Bar rear axle101 by 2997 mmReference
Front tread152 to 223 cmReference
2WD Shipping8028 kgReference
4WD Shipping8436 kgReference
4WD Operating8718 kgReference
2WD Max front axle4173 kgReference
4WD Max front axle4536 kgReference
Max rear axle14288 kgReference
MX180 Serial Number Location
Serial number tag on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps110Reference
Charging amps135Reference
Charging volts12Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Battery Group31Reference
Test results
Diesel 18-speed 4WDOctober 12 - 26, 1999Link: Nebraska Tractor Test 1764 fileReference
PTO performanceReference
Fuel use40.1 l/hourReference
Fuel use36.3 l/hourReference
Fuel use36.7 l/hourReference
Drawbar performanceReference
Gear 8 used for power test.Reference
Max pull8845 kgReference
Gear 3 used for pull test.Reference
Speeds
With 18.4R42 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
