Tractor · 2003Unverified

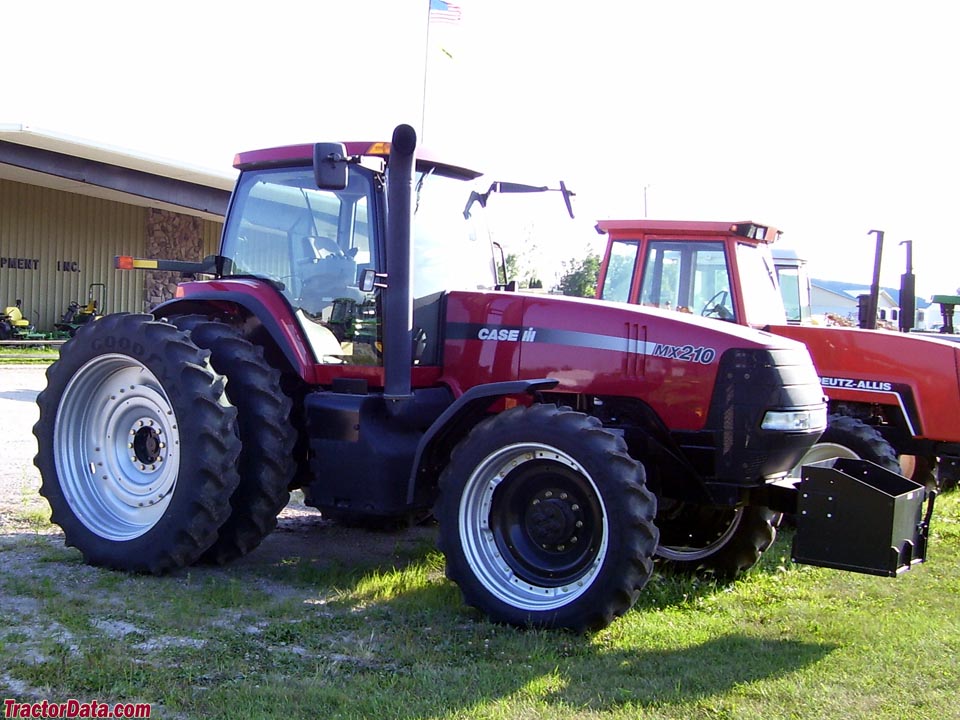

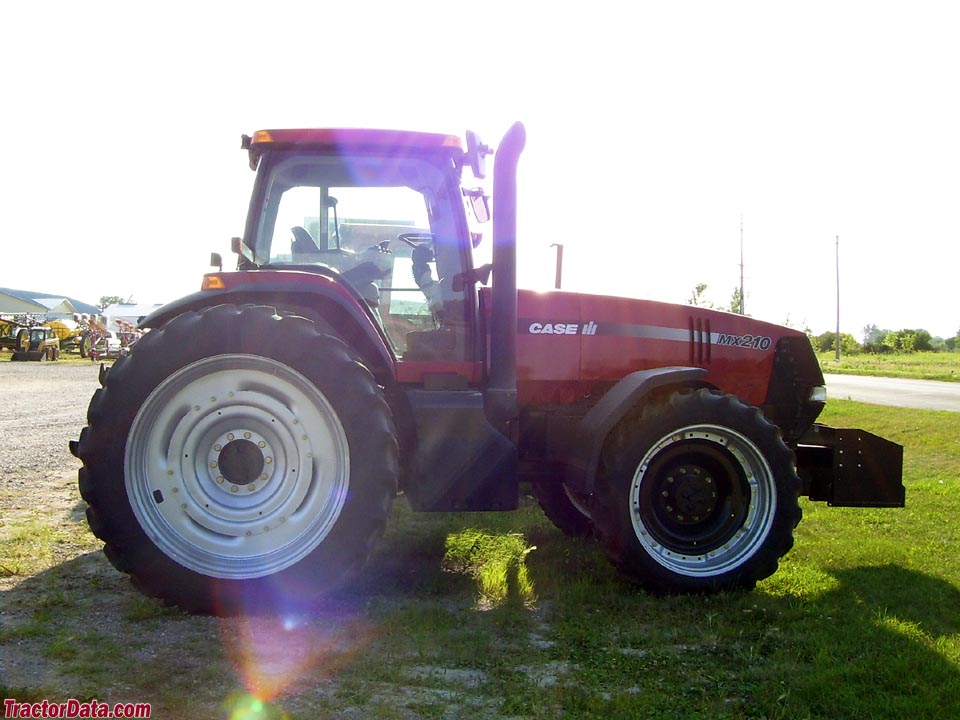

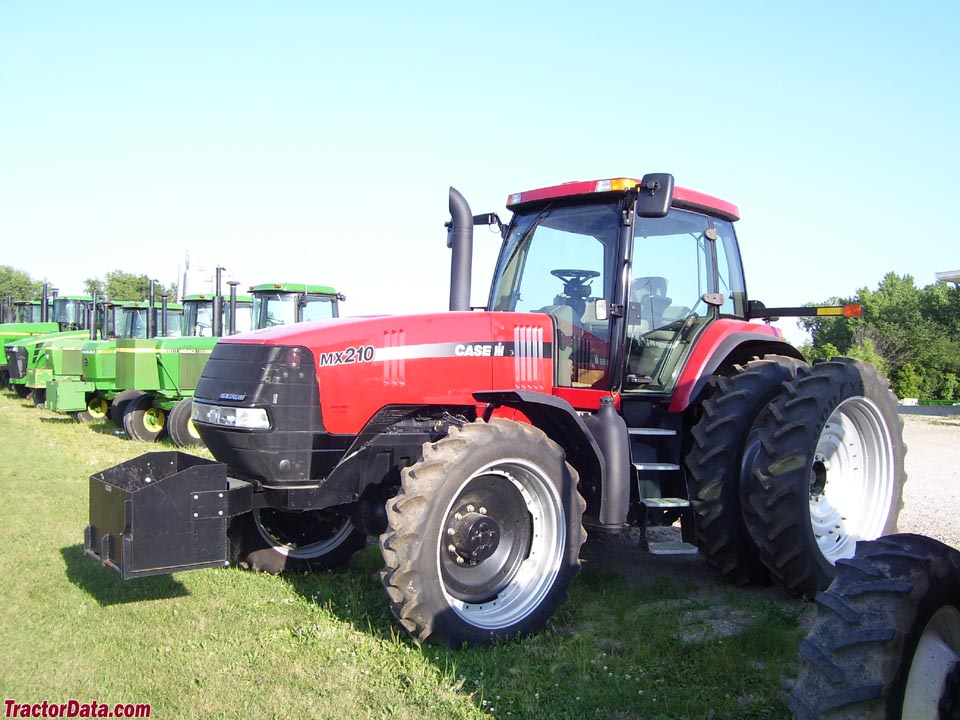

CaseIH MX210 Magnum
CaseIH MX210 Magnum — Magnum Series · 173 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
173 hp
Max power
147.7 kW
Weight
18700 to 20195 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Surveyor Cab standard with air-conditioning. Optional automatic climate control.Reference
Variants
TG210similar New Holland modelReference
Engine
CDC 8.3L 6-cyl dieselReference
Engine149.1 kWReference
Drawbar (tested)108.2 kWReference
CDCReference
turbocharged dieselReference
6-cylinder 12-valveReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
EmissionsTier IIReference
Power149.1 kWReference
Air cleanerdual paper elementsReference
Compression17.0:1Reference
Rated RPM2000Reference
Torque1802.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity22.7 LReference
Max power147.7 kWReference
Power at rated engine speed128.7 kWReference
Max power108.2 kWReference
Transmission
18-speed full power shiftReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
Clutchelectro-hydraulic wet discsReference
PTO & Hydraulics
PTO (claimed)126.8 kWReference
PTO (tested)147.7 kWReference
Hydraulic system172.2 LReference
Typeclosed center pressure flow compensated with parallel priority (PFC)Reference
Capacity172.2 LReference
Pressure203.4 barReference
Valves3 to 5Reference
Total flow146.1 lpmReference
Total flow201.0 lpmReference
Rear TypeIII/IIINReference
Controlelectronic draft controlReference
Rear lift6332 kgReference
Rear lift7243 kgReference
Front HitchoptionalReference
Front lift3252 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000 (1.375 optional)Reference
Engine RPM540@2000Reference
Engine RPM1000@1994Reference
Capacities
Fuel492.1 LReference
Fuel605.6 LReference
Dimensions
Wheelbase304 cmReference
Wheelbase300 cmReference
Weight18700 to 20195 poundsReference
Height (cab)316 cmReference
Rear axle101 by 2895 mmReference
Rear axle101 by 3048 mmReference
Front tread152 to 223 cmReference
Shipping8482 kgReference
Shipping8935 kgReference
Operating9160 kgReference
Ballasted10298 kgReference
MX210 Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
MX210 Serial Numbers
2003JAZ125000Reference
2004JAZ129400Reference
2005JAZ134001Reference
2006JAZ138614Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps135Reference
Charging volts12Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDSeptember 26 - October 27, 2003Link: OCED Tractor Test 1825 fileReference
PTO performanceReference
Fuel use41.6 l/hourReference
Fuel use40.9 l/hourReference
Drawbar performanceReference
Gear 7 used for power test.Reference
Max pull8881 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
