Tractor · 1999Unverified

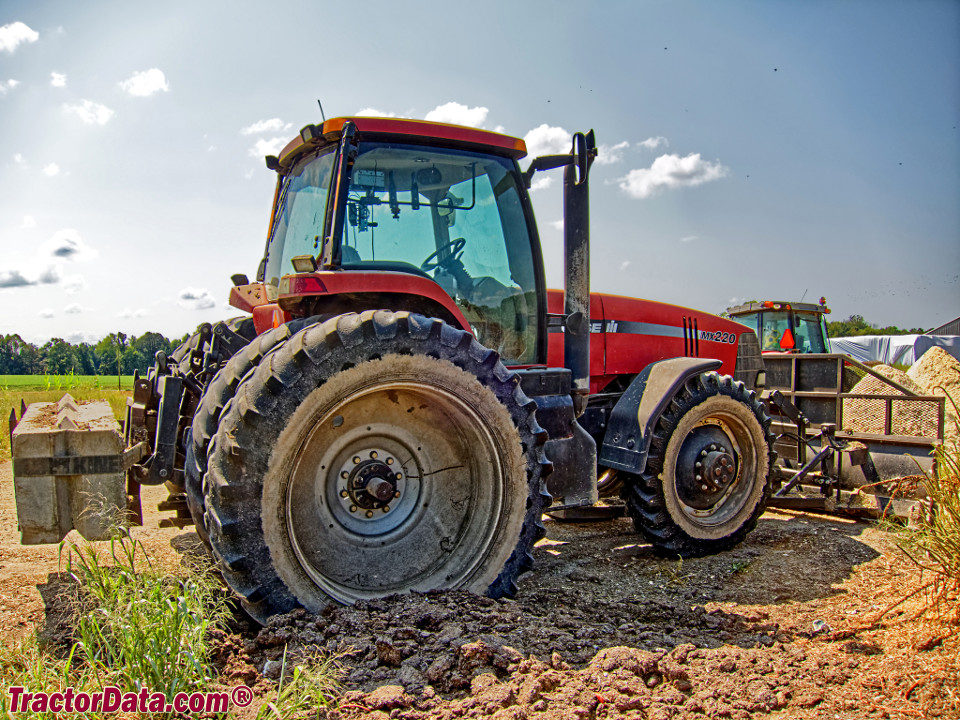

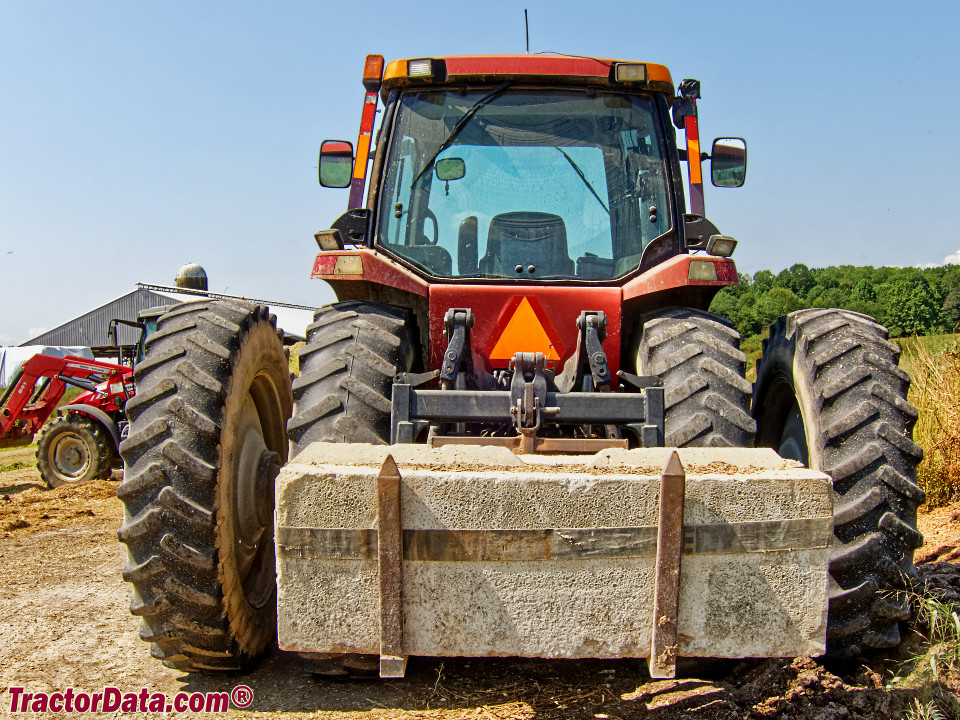

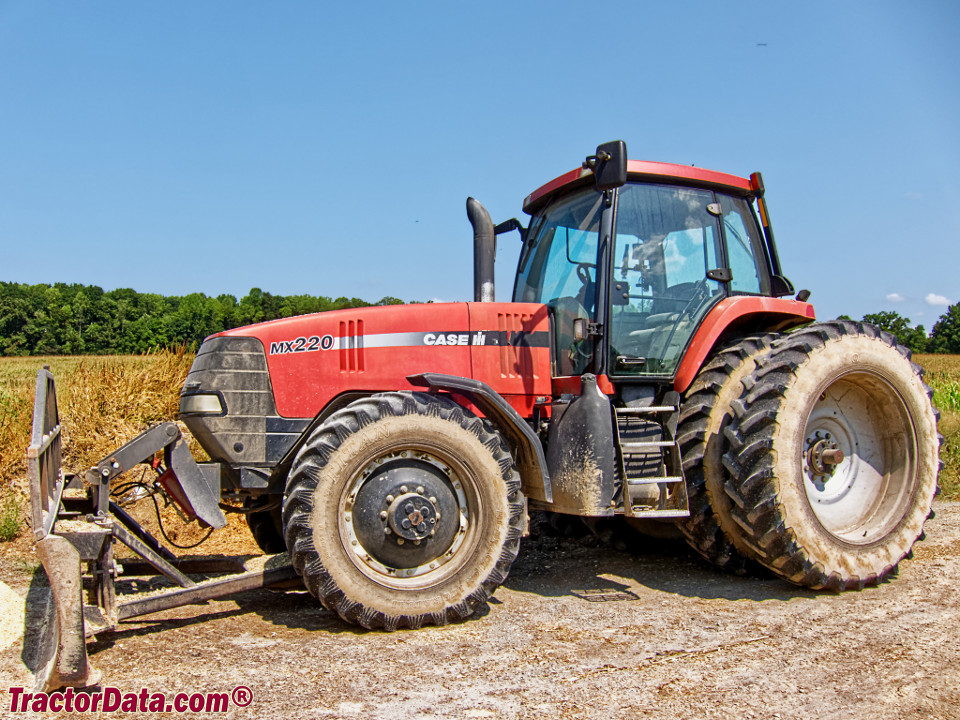

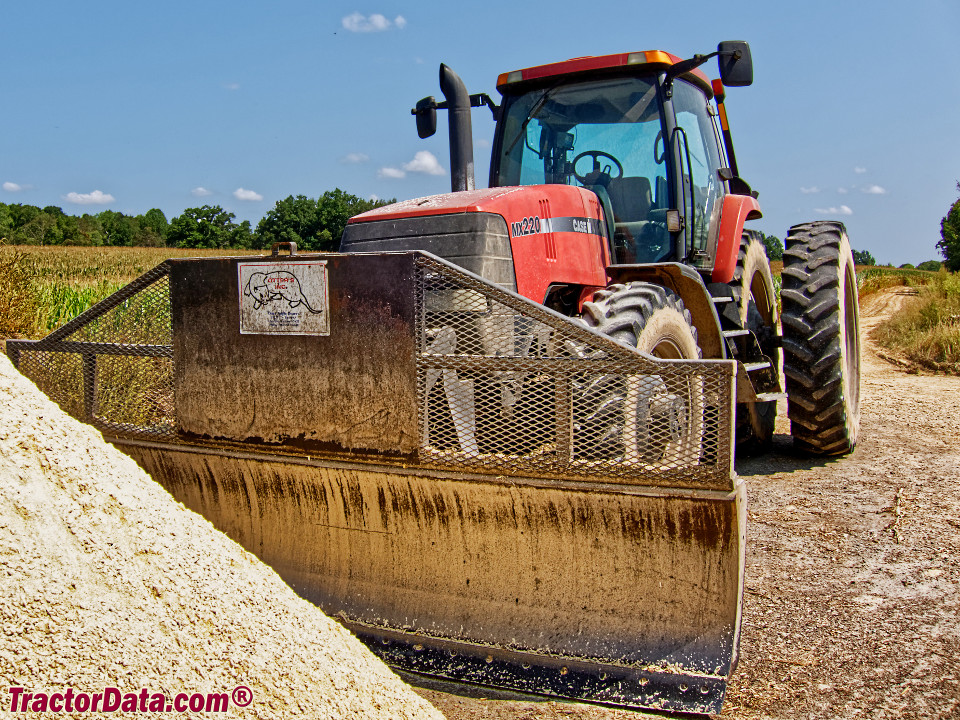

CaseIH MX220 Magnum

Name: CaseIH MX220 Magnum
Brand: CaseIH

CaseIH MX220 Magnum — Magnum Series · 187 hp. Reference specifications; pending source verification.

The CaseIH MX220 Magnum is a tractor rated at 187 horsepower, positioning it at the high-power end of its class. It was manufactured between 1999 and 2002. The MX220 Magnum features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight is listed as 18700 to 20010 pounds, and it is suited to operations covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

187 hp

Max power

156.0 kW

Weight

18700 to 20010 pounds

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

187 hp

Transmissions

18-speed full power shift

Production years

1999-2002

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Original price$103,000Reference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Surveyor Cab standard with air-conditioning.Reference

Engine

CDC 8.3L 6-cyl dieselReference

Drawbar (tested)120.2 kWReference

CDCReference

turbocharged aftercooled dieselReference

6-cylinder 12-valveReference

liquid-cooled inlineReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Fuel systemmechanical direct injectionReference

Air cleanerdual paper elementsReference

Compression16.5:1Reference

Rated RPM2000Reference

Idle RPM900-2240Reference

Firing order1-5-3-6-2-4Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity22.7 LReference

Oil capacity20.8 LReference

Oil change300 hReference

Max power156.0 kWReference

Power at rated engine speed139.2 kWReference

Max power120.2 kWReference

Transmission

18-speed full power shiftReference

24-speed creeperReference

Typefull power shiftReference

Gears18 forward and 4 reverseReference

Clutchelectro-hydraulic wet discsReference

Push-button power shift with left-hand power shuttle.Reference

TypecreeperReference

Gears24 forward and 6 reverseReference

Optional creeper range engaged with button on the console. Tractor must be in neutral or park to change range.Reference

PTO & Hydraulics

PTO (claimed)138.0 kWReference

PTO (tested)156.0 kWReference

Hydraulic system172.2 LReference

Typeclosed center PFCReference

Capacity172.2 LReference

Pressure172.4 barReference

Valves3 to 5Reference

Pump flow113.6 lpmReference

Pump flow166.5 lpmReference

SCV flow102.2 lpmReference

SCV flow151.4 lpmReference

Rear TypeIII/IIINReference

Controlposition and draft controlReference

Rear lift5080 kgReference

Rear lift6577 kgReference

Front HitchIIReference

Front lift (at 24"/610mm)2494 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type5410/1000 (1.375)Reference

Engine RPM540@1982Reference

Engine RPM1000@1974Reference

Power at rated PTO speed141.9 kWReference

Capacities

Fuel492.1 LReference

Fuel605.6 LReference

Max capacity12020 kgReference

Dimensions

2WD Wheelbase302 cmReference

4WD Wheelbase300 cmReference

Weight18700 to 20010 poundsReference

Front tire14L-16.1Reference

2WD Rear tire18.4R46Reference

2WD Standard tires (ag)Front: 14L-16.1. Rear: 18.4R46Reference

4WD Standard tires (ag)Front: 14.9R34. Rear: 18.4R46Reference

Length574 cmReference

Height (cab)316 cmReference

Ground clearance47 cmReference

Bar rear axle101 by 2844 mmReference

Bar rear axle101 by 2997 mmReference

Front tread152 to 223 cmReference

2WD Shipping8482 kgReference

4WD Shipping8935 kgReference

4WD Operating9076 kgReference

2WD Max front axle4173 kgReference

4WD Max front axle4536 kgReference

Max rear axle14288 kgReference

MX220 Serial Number Location

Serial number tag on the right side of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps110Reference

Charging amps135Reference

Charging volts12Reference

Batteries2Reference

Battery CCA1000Reference

Battery volts12Reference

Battery Group31Reference

Test results

Diesel 18-speed 4WDOctober 8 - 26, 1999Link: Nebraska Tractor Test 1766 fileReference

PTO performanceReference

Fuel use40.5 l/hourReference

Fuel use39.0 l/hourReference

Fuel use39.4 l/hourReference

Drawbar performanceReference

Gear 7 used for power test.Reference

Max pull9380 kgReference

Gear 4 used for pull test.Reference

Speeds

With 18.4R46 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
