Tractor · 2003Unverified

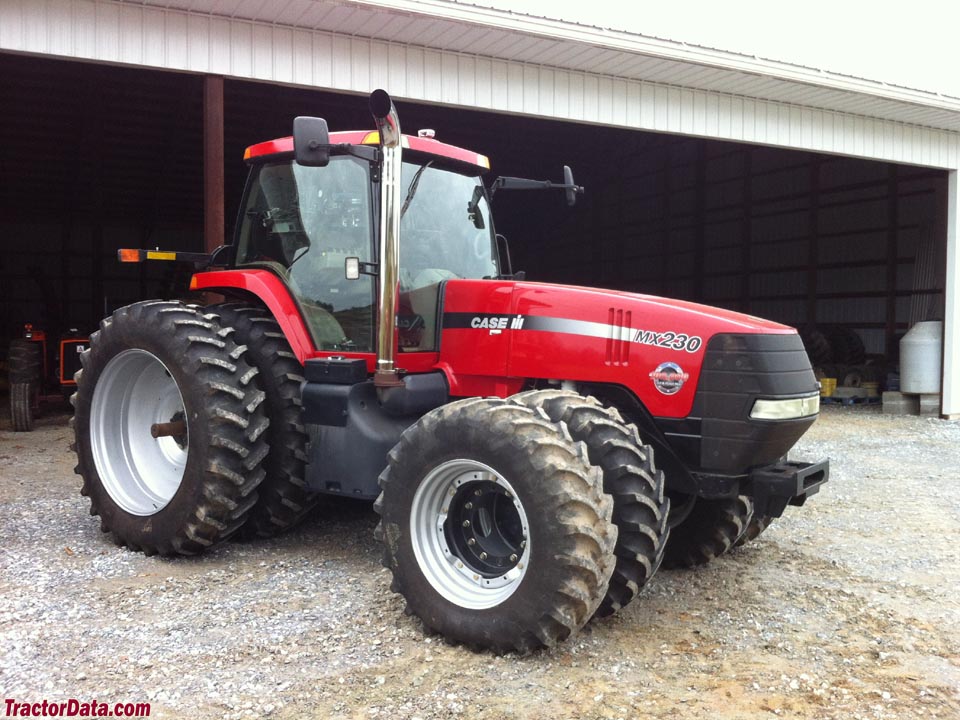

CaseIH MX230 Magnum

Name: CaseIH MX230 Magnum
Brand: CaseIH

CaseIH MX230 Magnum — Magnum Series · 192 hp. Reference specifications; pending source verification.

The CaseIH MX230 Magnum is a tractor with a rated output of 192 hp, positioning it among higher-powered machines in its class. It was manufactured from 2003 to 2006. The tractor features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, driving through a four-wheel drive system with a hydrostatic transmission. It has a listed weight of 18700 to 20100 pounds and is suitable for jobs covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

192 hp

Max power

161.5 kW

Weight

18700 to 20100 pounds

Catalogue coverage

Variants represented

Richest spec table

86 rows

Recorded power

192 hp

Transmissions

18-speed full power shift

Production years

2003-2006

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Differential hydraulic wet disc brakesReference

Surveyor Cab standard with air-conditioning. Optional automatic climate control.Reference

Variants

TG230similar New Holland modelReference

Engine

CDC 8.3L 6-cyl dieselReference

Engine174.5 kWReference

Drawbar (tested)123.2 kWReference

CDCReference

turbocharged intercooled dieselReference

6-cylinder 12-valveReference

liquid-cooled inlineReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

EmissionsTier IIReference

Power174.5 kWReference

Air cleanerdual paper elementsReference

Compression17.0:1Reference

Rated RPM2000Reference

Torque1959.4 NmReference

Torque RPM1400Reference

Starter volts12Reference

Oil capacity20.8 LReference

Coolant capacity22.7 LReference

Max power161.5 kWReference

Power at rated engine speed143.2 kWReference

Max power123.2 kWReference

Transmission

18-speed full power shiftReference

Typefull power shiftReference

Gears18 forward and 4 reverseReference

Clutchelectro-hydraulic wet discsReference

PTO & Hydraulics

PTO (claimed)141.7 kWReference

PTO (tested)161.5 kWReference

Hydraulic system172.2 LReference

Typeclosed center pressure flow compensated with parallel priority (PFC)Reference

Capacity172.2 LReference

Pressure203.4 barReference

Valves3 to 5Reference

Total flow146.1 lpmReference

Total flow201.0 lpmReference

Rear TypeIII/IIINReference

Controlelectronic draft controlReference

Rear lift6332 kgReference

Rear lift7243 kgReference

Front HitchoptionalReference

Front lift3252 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (1.375 optional)Reference

Capacities

Fuel492.1 LReference

Fuel605.6 LReference

Dimensions

Wheelbase304 cmReference

Wheelbase300 cmReference

Weight18700 to 20100 poundsReference

Height (cab)316 cmReference

Rear axle101 by 2895 mmReference

Rear axle101 by 3048 mmReference

Front tread152 to 223 cmReference

Shipping8482 kgReference

Shipping8935 kgReference

Operating9117 kgReference

Ballasted11353 kgReference

MX230 Serial Number Location

Serial number plate on the right side of the tractor frame, above the front axle.Reference

MX230 Serial Numbers

2003JAZ125000Reference

2004JAZ129400Reference

2005JAZ134001Reference

2006JAZ138614Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps135Reference

Charging volts12Reference

Batteries2Reference

Battery CCA1000Reference

Battery volts12Reference

Test results

Diesel 18-speed 4WDOctober 9 - 27, 2003Link: OCED Tractor Test 1826 fileReference

PTO performanceReference

Fuel use47.7 l/hourReference

Fuel use46.9 l/hourReference

Drawbar performanceReference

Gear 7 used for power test.Reference

Max pull8903 kgReference

Gear 4 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
