Tractor · 1999Unverified

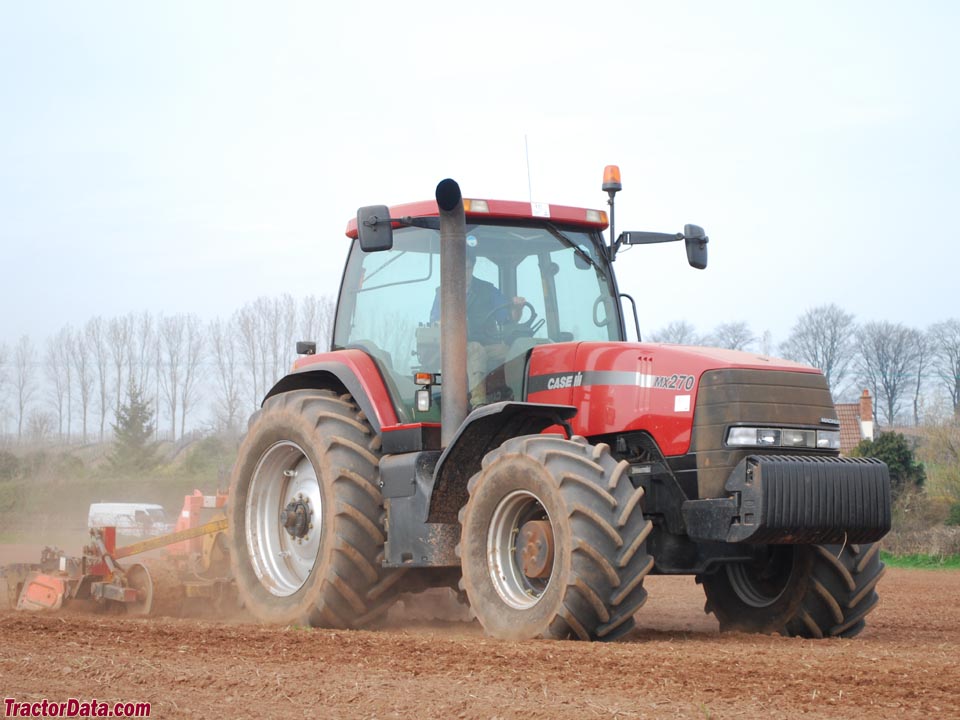

CaseIH MX270 Magnum
CaseIH MX270 Magnum — Magnum Series · 238 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
238 hp
Max power
202.0 kW
Weight
20200 to 20900 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price$141,000Reference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Surveyor Cab standard with air-conditioning.Reference
Engine
CDC 8.3L 6-cyl dieselReference
Drawbar (tested)154.4 kWReference
CDCReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Fuel systemelectric direct injectionReference
Air cleanerdual paper elementsReference
Compression17.0:1Reference
Rated RPM2000Reference
Idle RPM900-2240Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity24.6 LReference
Oil capacity20.8 LReference
Oil change300 hReference
Max power202.0 kWReference
Power at rated engine speed177.1 kWReference
Max power154.4 kWReference
Transmission
18-speed full power shiftReference
24-speed creeperReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
Clutchelectro-hydraulic wet discsReference
Push-button power shift with left-hand power shuttle.Reference
TypecreeperReference
Gears24 forward and 6 reverseReference
Optional creeper range engaged with button on the console. Tractor must be in neutral or park to change range.Reference
PTO & Hydraulics
PTO (claimed)175.2 kWReference
PTO (tested)202.0 kWReference
Hydraulic system172.2 LReference
Typeclosed center PFCReference
Capacity172.2 LReference
Pressure172.4 barReference
Valves3 to 5Reference
Pump flow113.6 lpmReference
Pump flow166.5 lpmReference
SCV flow102.2 lpmReference
SCV flow151.4 lpmReference
Rear TypeIII/IIINReference
Controlposition and draft controlReference
Rear lift5896 kgReference
Rear lift7257 kgReference
Front HitchIIReference
Front lift (at 24"/610mm)2494 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@1974Reference
Power at rated PTO speed181.3 kWReference
Capacities
Fuel605.6 LReference
Max capacity14288 kgReference
Dimensions
Wheelbase300 cmReference
Weight20200 to 20900 poundsReference
Front tire16.9R30Reference
Rear tire20.8R42Reference
Standard tires (ag)Front: 16.9R30. Rear: 20.8R42Reference
Length574 cmReference
Height (cab)314 cmReference
Ground clearance43 cmReference
Bar rear axle101 by 2895 mmReference
Bar rear axle101 by 3048 mmReference
Bar rear axle114 by 2895 mmReference
Bar rear axle114 by 3048 mmReference
Front tread152 to 223 cmReference
Shipping9162 kgReference
Operating9480 kgReference
Max front axle6032 kgReference
Max rear axle14288 kgReference
Max rear axle16783 kgReference
MX270 Serial Number Location
Serial number tag on the right side of the tractor frame, above the front axle.Reference
MX270 Serial Numbers
1999JJA0097438Reference
2000JJA0105000Reference
2001JJA0108800Reference
2002JJA0115301Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps110Reference
Charging amps135Reference
Charging volts12Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Battery Group31Reference
Test results
Diesel 18-speed 4WDApril 15 - 24, 1999Link: Nebraska Tractor Test 1761 fileReference
PTO performanceReference
Fuel use56.0 l/hourReference
Fuel use50.0 l/hourReference
Fuel use51.1 l/hourReference
Drawbar performanceReference
Gear 7 used for power test.Reference
Max pull9827 kgReference
Gear 5 used for pull test.Reference
Speeds
With 20.8R42 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
