Tractor · 2006Unverified

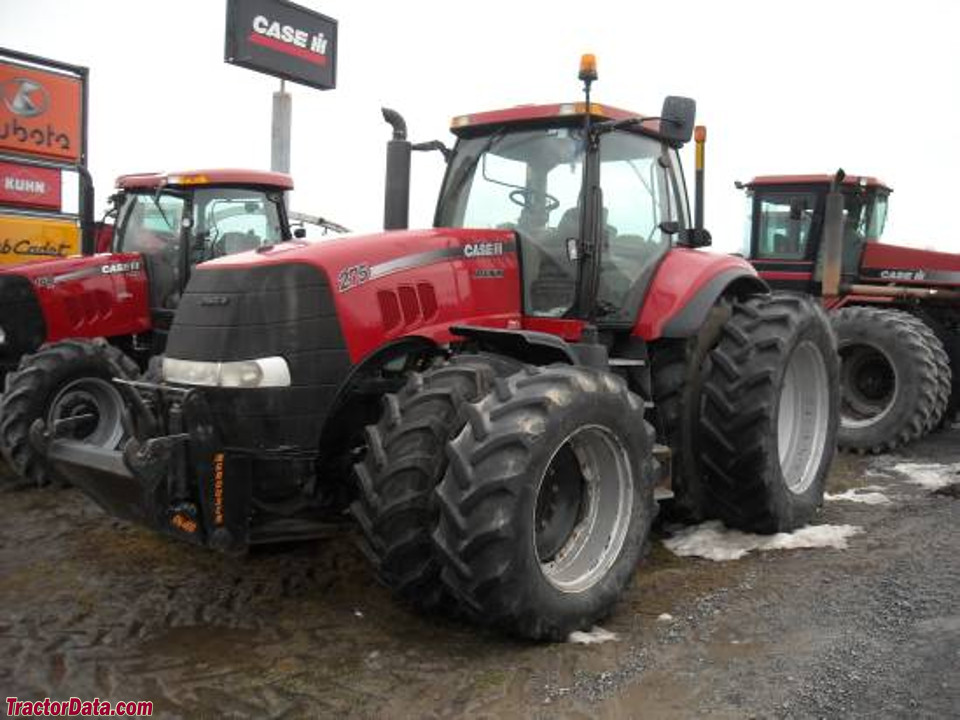

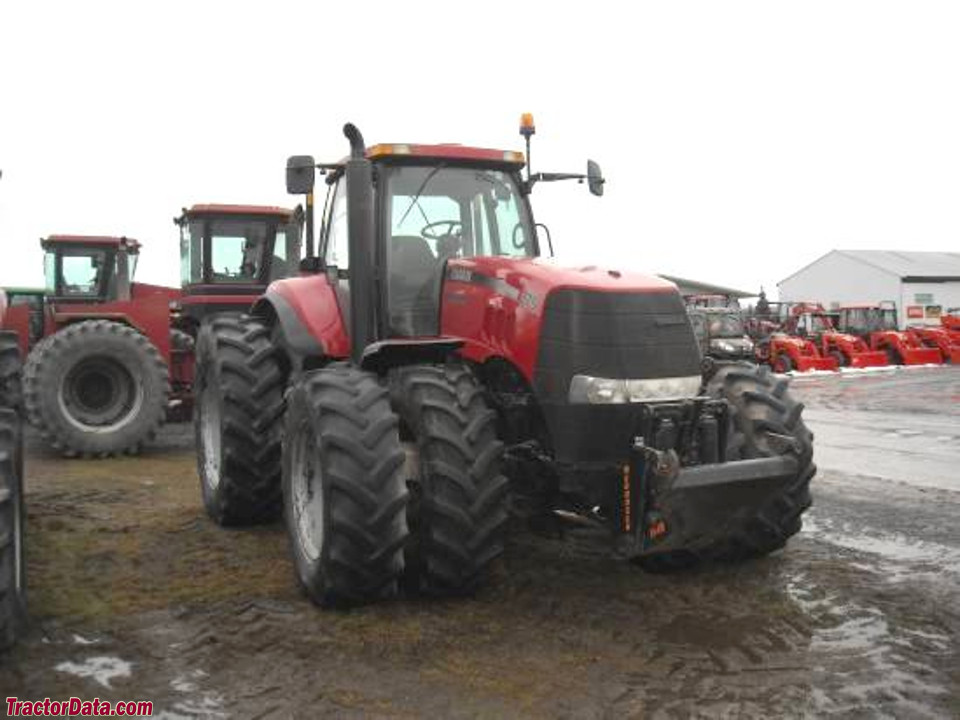

CaseIH MX275 Magnum
CaseIH MX275 Magnum — Magnum Series · 227 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
227 hp
Max power
200.3 kW
Weight
9784 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Engine
CNH 8.3L 6-cyl dieselReference
CNH 8.9L 6-cyl dieselReference
Engine205.1 kWReference
Drawbar (tested)145.4 kWReference
CNHReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power205.1 kWReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2000Reference
Torque2425.9 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity22.7 LReference
dieselReference
Displacement8.9 LReference
Bore/Stroke114 x 145 mmReference
Compression17.6:1Reference
Max power200.3 kWReference
Power at rated engine speed169.3 kWReference
Max power143.3 kWReference
Max power202.5 kWReference
Power at rated engine speed170.9 kWReference
Max power145.4 kWReference
Transmission
18-speedReference
19-speedReference
23-speedReference
TransmissionPowershiftReference
Gears18 forward and 4 reverseReference
TransmissionPowershift - overdriveReference
Gears19 forward and 4 reverseReference
TransmissionCreeperReference
Gears23 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)167.8 kWReference
PTO (tested)202.5 kWReference
Hydraulic system172.2 LReference
TypePFCReference
Capacity172.2 LReference
Valves3 to 5Reference
Total flow146.1 lpmReference
Total flow219.5 lpmReference
Rear TypeIIIReference
Rear lift6790 kgReference
Rear lift8128 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel681.3 LReference
Dimensions
Wheelbase300 cmReference
Weight9784 kgReference
Height326 cmReference
Operating weight9784 kgReference
Ballasted weight13735 kgReference
Electrical
Charging amps150Reference
Charging amps175 (optional)Reference
Battery CCA2000Reference
Battery volts12Reference
Test results
OECD 1912: 505 diesel 19/4 4WDReference
OECD 1916: 543 diesel 19/4Reference
505 diesel 19/4 4WDOctober 30 - November 14, 2007Link: OCED Tractor Test 1912 fileReference
PTO performanceReference
Fuel use57.5 l/hourReference
Fuel use54.1 l/hourReference
Drawbar performanceReference
Fuel use53.7 l/hourReference
Gear 9 used for power test.Reference
543 diesel 19/4 November 2007Reference
Fuel use52.6 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
