Tractor · 2002Unverified

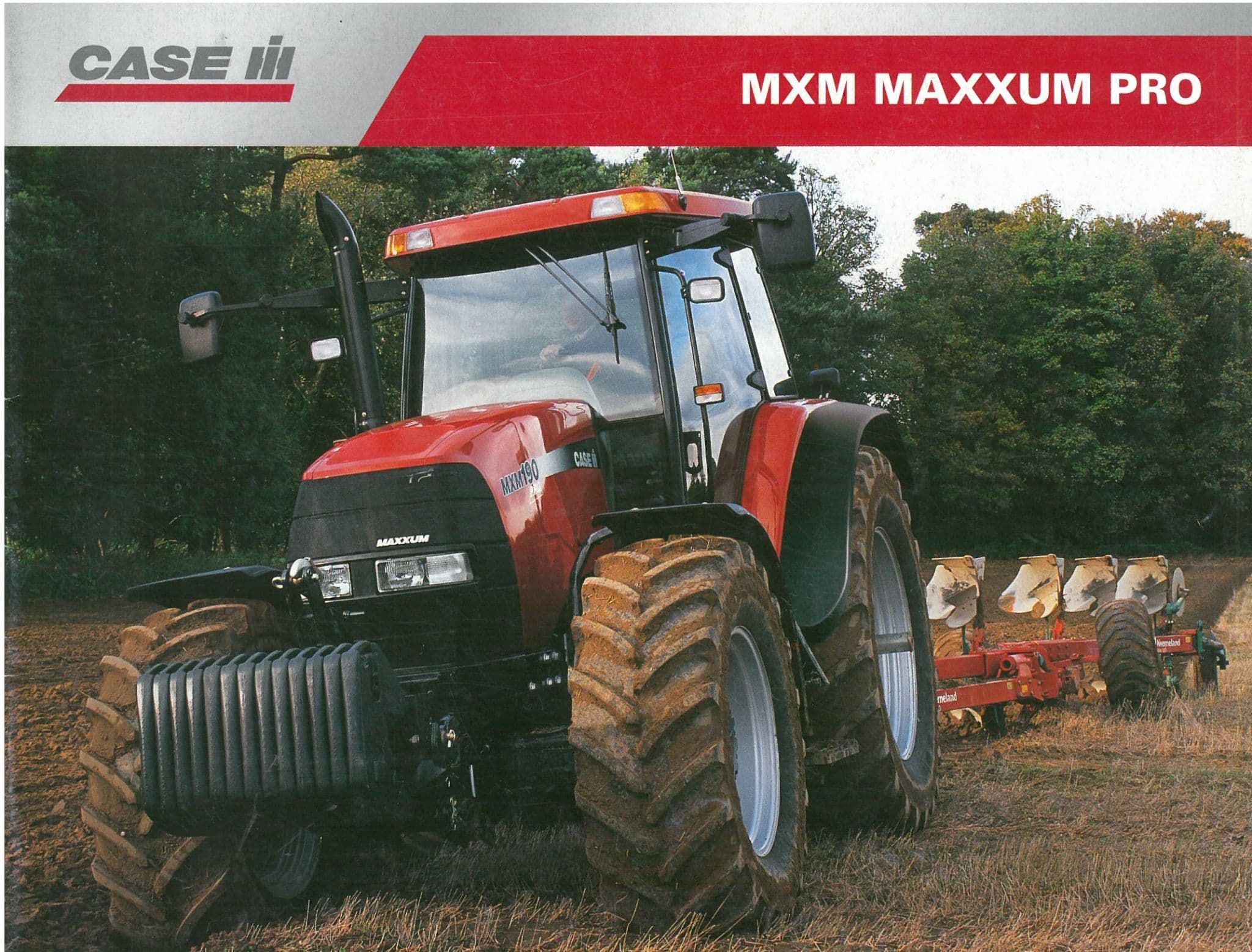

CaseIH MXM155 Maxxum

Name: CaseIH MXM155 Maxxum
Brand: CaseIH

CaseIH MXM155 Maxxum — Maxxum Series · 132 hp. Reference specifications; pending source verification.

The Case IH MXM155 Maxxum is a tractor model with a rated output of 132 hp, positioning it among the higher-powered machines in its class. It was manufactured between 2002 and 2007. The tractor features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled to four-wheel drive and a powershift transmission. The listed operating weight is 5860 kg, indicating it is suited for tasks involving approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

132 hp

Max power

99.8 kW

Weight

5860 kg

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

132 hp

Recorded weight

5860 kg

Transmissions

18-speed partial power shift

Production years

2002-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Two- or four-wheel driveReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

CNH 7.5L 6-cyl dieselReference

Engine114.1 kWReference

Drawbar (tested)80.9 kWReference

CNH GenesisReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

Power114.1 kWReference

Air cleanerdual paper elementsReference

Compression17.0:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity18.9 LReference

Coolant capacity26.1 LReference

Max power99.8 kWReference

Power at rated engine speed98.1 kWReference

Max power80.9 kWReference

Transmission

18-speed partial power shiftReference

Typepartial power shiftReference

Gears18 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)93.2 kWReference

PTO (tested)99.8 kWReference

Hydraulic system89.9 LReference

Typeclosed-center load sensingReference

Capacity89.9 LReference

Pressure189.6 barReference

Valves2 to 5Reference

Pump flow106.0 lpmReference

SCV flow94.6 lpmReference

Total flow166.5 lpmReference

Steering flow60.6 lpmReference

Rear TypeIII/IIReference

Controlelectronic lower-link sensingReference

Rear lift (at 24"/610mm)5302 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Power at rated PTO speed99.6 kWReference

Capacities

Fuel283.9 LReference

Dimensions

2WD Wheelbase274 cmReference

4WD Wheelbase272 cmReference

Weight5860 kgReference

2WD Length458 cmReference

4WD Length471 cmReference

Height (cab)282 cmReference

Height (cab)295 cmReference

4WD Operating weight5860 kgReference

Rear axle91 by 2489 mmReference

4WD Front tread152 to 223 cmReference

Rear tread152 to 223 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA1300Reference

Battery volts12Reference

Battery AH176Reference

Test results

Diesel 18-speed 4WDOctober 1, 2003 - February 1, 2004Link: OCED Tractor Test 2121 fileReference

PTO performanceReference

Fuel use31.0 l/hourReference

Fuel use31.8 l/hourReference

Drawbar performanceReference

Gear 2B used for power test.Reference

Max pull6311 kgReference

Gear 1A used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
