Tractor · 2004Unverified

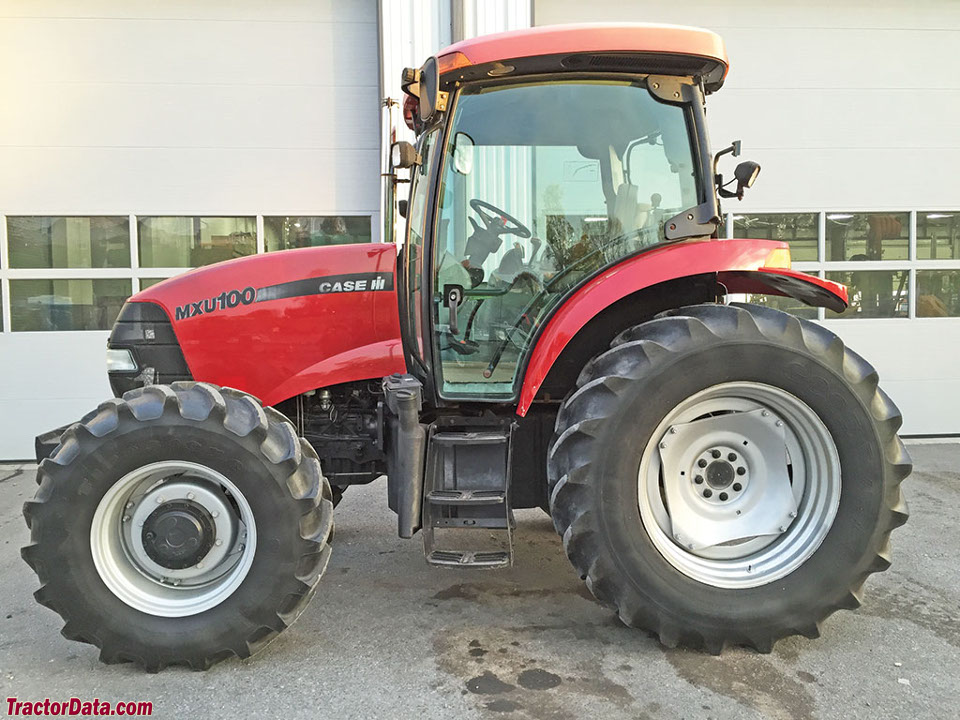

CaseIH MXU100

Name: CaseIH MXU100
Brand: CaseIH

CaseIH MXU100 — MXU Maxxum Series · 100 hp. Reference specifications; pending source verification.

The CaseIH MXU100 is a tractor model with a rated output of 100 hp, placing it in the middle of its class for power. This model was manufactured from 2004 to 2006. It features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled to a powershift transmission and four-wheel drive. The listed operating weight ranges from 9060 to 11200 pounds, making it suitable for tasks involving around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Max power

65.4 kW

Weight

9060 to 11200 pounds

Catalogue coverage

Variants represented

Richest spec table

99 rows

Recorded power

100 hp

Transmissions

24-speed partial powershift

Production years

2004-2006

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Basildon, EnglandReference

Original price was $39,100 in 2005Reference

Two- or four-wheel driveReference

Final drivesplanetary inboardReference

Differential lockelectro-hydraulic rear standardReference

Differential lockfront optionalReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Cab optionalReference

Variants

TS100Asimilar New Holland modelReference

Engine

CNH 4.5L 4-cyl dieselReference

Fuel tank176.8 LReference

Engine (gross)74.6 kWReference

Drawbar (tested)55.7 kWReference

CNHReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

Power (gross)74.6 kWReference

Fuel systemBosch mechanical direct injection with 6-hole injectorsReference

Air cleanerdual paper elementsReference

Pre-heatinggrid heaterReference

Compression17.0:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power65.4 kWReference

Power at rated engine speed64.8 kWReference

Max power55.7 kWReference

Transmission

24-speed partial powershiftReference

16-speed partial powershiftReference

12-speedReference

Typepartial powershiftReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discsReference

Four gears (1-4) in three ranges (I-II-III) with low-high power shift. Gears and ranges are synchronized.Reference

Gears16 forward and reverseReference

Four gears (1-4) in four ranges (A-D). Power shift between gears. Auto Shift feature automatically matches shifts within selected range to match load.Reference

Gears12 forward and reverseReference

Four gears (1-4) in three ranges (I-II-III).Reference

PTO & Hydraulics

PTO (claimed)59.7 kWReference

PTO (tested)65.4 kWReference

Typepressure-flow compensated optional (PFC)Reference

Pressure205.1 barReference

Pressure215.0 barReference

Rear valves2 to 4Reference

Pump flow74.9 lpmReference

Pump flow100.3 lpmReference

Total flow114.7 lpmReference

Total flow140.0 lpmReference

Steering flow39.7 lpmReference

Rear TypeII (ROPS)Reference

Rear TypeII/IIIN (cab)Reference

Controlmechanical lower link (ROPS)Reference

Controlelectronic draft control (cab)Reference

Rear lift4211 kgReference

Rear lift5527 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet platesReference

Rear PTO Type540/1000Reference

Engine RPM540@1969Reference

Engine RPM1000@2120Reference

Power at rated PTO speed65.0 kWReference

Dimensions

2WD Wheelbase236 cmReference

4WD Wheelbase241 cmReference

Weight9060 to 11200 poundsReference

Front tire7.50x16Reference

2WD Rear tire16.9R38Reference

2WD Standard tires (ag)Front: 7.50x16. Rear: 16.9R38Reference

4WD Standard tires (ag)Front: 14.9R24. Rear: 16.9R38Reference

Shipping4109 kgReference

Shipping4539 kgReference

Shipping4279 kgReference

Shipping4709 kgReference

Operating5080 kgReference

CaseIH MXU100 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps70Reference

Cab Charging amps120Reference

Battery CCA1300Reference

Battery volts12Reference

Attachment overview

CaseIH LX156 loaderReference

CaseIH MXU100 Height

ROPS285 cmReference

Cab285 cmReference

Cab292 cmReference

Exhaust287 cmReference

Test results

Diesel 12-speed 4WDNovember 1, 2004 - January 1, 2005Link: OCED Tractor Test 2242 fileReference

PTO performanceReference

Fuel use20.8 l/hourReference

Fuel use22.0 l/hourReference

Fuel use21.6 l/hourReference

Drawbar performanceReference

Gear 2-II used for power test.Reference

Max pull5465 kgReference

Gear 1-I used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
