Tractor · 2005Unverified
CaseIH MXU115
CaseIH MXU115 — MXU Maxxum Series · 116 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
116 hp
Max power
78.1 kW
Weight
5370 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Basildon, EnglandReference
Two- or four-wheel driveReference
Final drivesplanetary inboardReference
Differential lockelectro-hydraulicReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
MXU115 Limitedpremium modelReference
MXU115 Valueeconomy modelReference
TS115Asimilar New Holland modelReference
Engine
CNH 6.7L 6-cyl dieselReference
Fuel tank253.6 LReference
Engine (gross)86.5 kWReference
Drawbar (tested)69.6 kWReference
CNHReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
Power (gross)86.5 kWReference
Air cleanerdual paper elementsReference
Pre-heatinggrid heaterReference
Compression17.0:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power78.1 kWReference
Power at rated engine speed75.3 kWReference
Max power69.6 kWReference
Transmission
16-speed synchromeshReference
16-speed partial powershiftReference
24-speed partial powershiftReference
TypesynchromeshReference
Gears16 forward and reverseReference
Typepartial powershiftReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
PTO (tested)78.1 kWReference
Typeopen centerReference
Typepressure-flow compensated (PFC)Reference
Valves2 to 4Reference
Pump flow62.8 lpmReference
Pump flow74.9 lpmReference
Pump flow100.3 lpmReference
Total flow102.6 lpmReference
Total flow114.7 lpmReference
Total flow140.0 lpmReference
Steering flow39.7 lpmReference
Rear TypeII/IIINReference
Controlmechanical lower-link sensingReference
Controlelectronic draft controlReference
Rear lift (at 24"/610mm)2212 kgReference
Rear lift (at 24"/610mm)3997 kgReference
Rear lift (at 24"/610mm)5527 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed77.3 kWReference
Dimensions
2WD Wheelbase265 cmReference
4WD Wheelbase265 cmReference
Weight5370 kgReference
Front tire10.00-16Reference
2WD Rear tire18.4R38Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4R38Reference
4WD Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
Height (ROPS)289 cmReference
Height (cab)281 cmReference
Operating weight5370 kgReference
CaseIH MXU115 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA800Reference
Battery CCA960Reference
Battery CCA1300Reference
Battery volts12Reference
Attachment overview

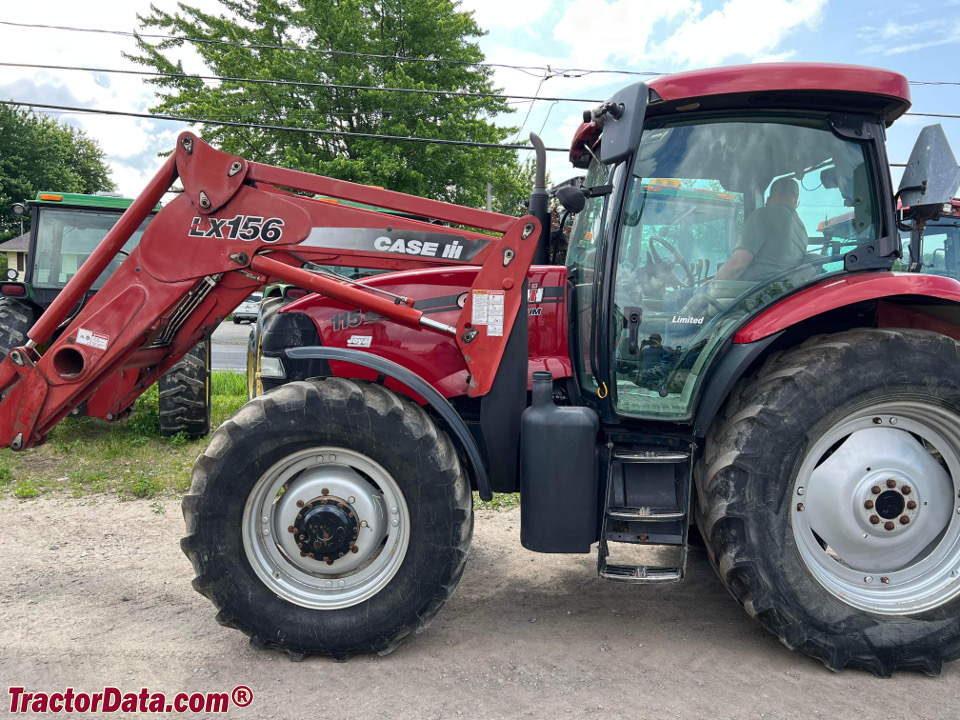

CaseIH LX156 loaderReference
Test results
Diesel 24-speed 4WDSeptember 2004 - November 2004, Link: OCED Tractor Test 2228 fileReference
PTO performanceReference
Fuel use24.2 l/hourReference
Fuel use25.4 l/hourReference
Drawbar performanceReference
Fuel use28.4 l/hourReference
Gear 12 used for power test.Reference
Max pull5608 kgReference
Gear 1-I-Low used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
